Setting Up the Tester
19

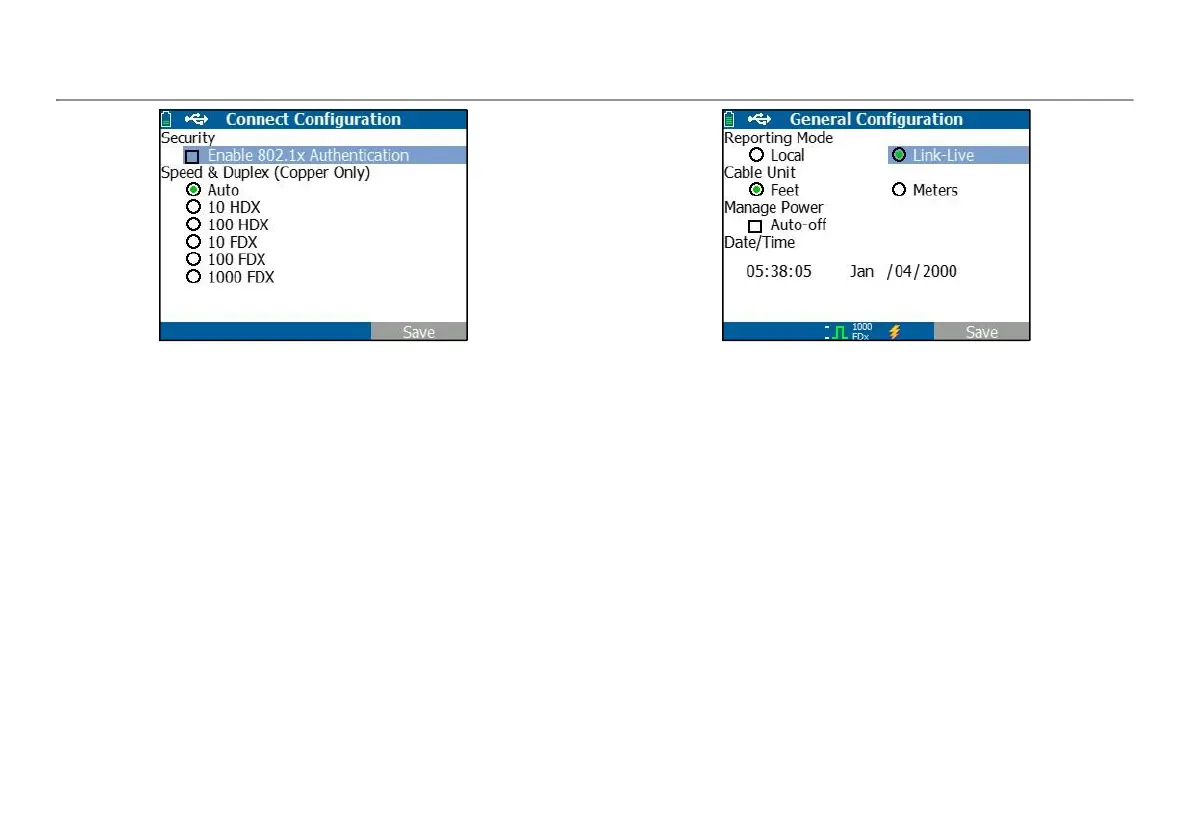

Figure 9. Connect Configuration Screen
This screen allows you to enable 802.1x Authentication and set the
Speed & Duplex.
For 802.1x Authentication, if a certificate is required, you must
transfer it from your PC using the LinkRunner Manager PC
application provided with LR-AT. Only one certificate can be installed
on a LR-AT at a time.
For Speed & Duplex, Auto is the default and recommended
configuration; 10 HDX is 10 Mbps half duplex, and 1000 FDX is 1000
Mbps full duplex.
General Configuration
Select Tools > General Configuration.
Figure 10. General Configuration Screen
The Reporting Mode determines whether test results are saved to
the tester unit (Local) or uploaded to the Link-Live Cloud Service.
This rest of the screen allows you to set the units for the Cable test
screen, Manage Power (10 minute automatic shutoff - default), and
set the date and time.
Reflector Configuration (Model 2000 only)
This screen is used to configure the LR-AT 2000 to act as a reflector
for performance tests conducted by other NetAlly testing devices.
Note
The LR-AT 2000 can reflect jumbo frame sizes up to 9600 bytes.
Select Tools > Reflector. The default or pre-configured
Reflector settings are displayed below
