Using AutoTest, Switch, and Cable Test
VIII. USING AUTOTEST, SWITCH, AND CABLE TEST
Using AutoTest
AutoTest can test up to ten targets. These targets can be local or off-
net targets (devices). You can enter the IP address or a DNS name. If
you specify a target address without specifying a port number,
AutoTest will perform an ICMP Ping to the target address. If you
specify a port number, AutoTest will perform a TCP Connectivity test
(SYN/ACK). See figures 14 and 15.
Select Tools > AutoTest Configuration and enter the target
address(es). Entering a port number is optional.
AutoTest will attempt to Ping/Connect to the target device three
times. If Continuous Mode is selected, the test will run until you exit
the AutoTest screen.

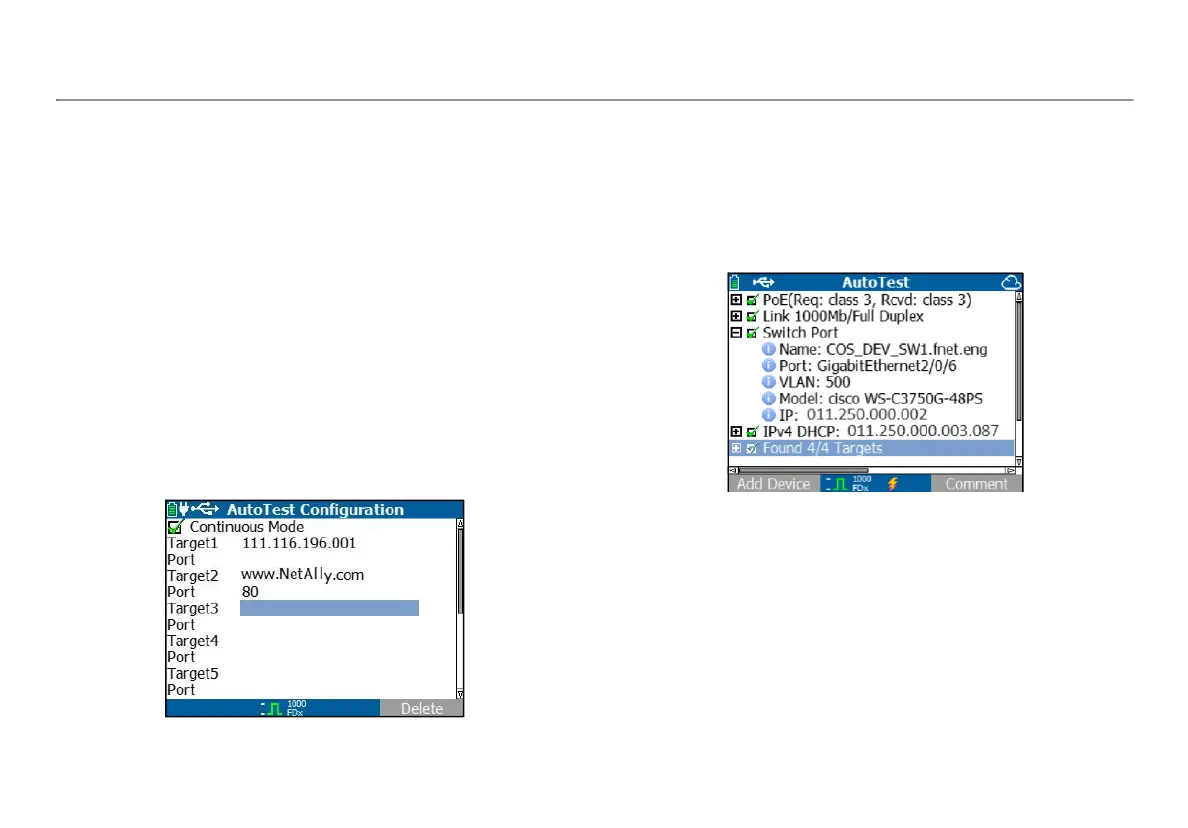

Figure 14. AutoTest Configuration Screen
Select AutoTest on the Home screen. AutoTest will run and the test
results should look similar to figure 15.
Figure 15. AutoTest Results Screen
The nearest switch is discovered, and its name, port, VLAN ID, model,
and IP address are displayed. Then, the DHCP server information is
displayed. Finally, the Gateway and DNS server(s) are displayed along
with the target device(s).
Expand on each device to display the test results.
