UPM 2000
Netech Corporation
110 Toledo St, Farmingdale, NY 11735
http://www.Netech.org
21
Back Panel Description
The back panel of the UPM 2000 is shown in Figure 2-3. It includes the following
components:
• Battery Compartment: Allows access to the instrument's 9 V dc
battery. The hinged plastic battery cover opens to expose the battery
compartment during battery replacement. This cover should remain
closed during normal operation of the instrument.
• Wall Transformer Jack: When using the wall-mounted transformer,
simply plug into a receptacle.
1-800-547-6547

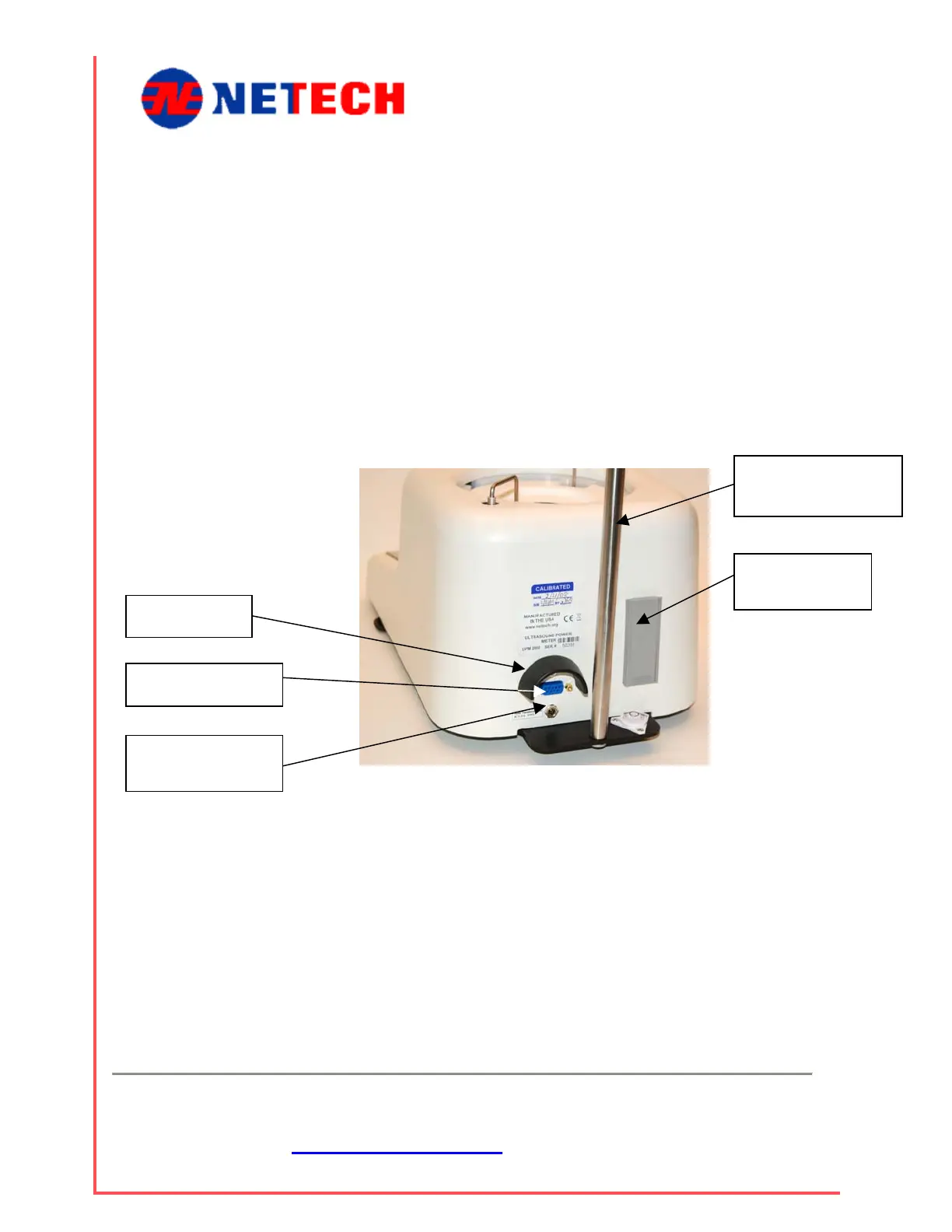

Figure 2-3: UPM 2000 Back Panel Layout
• RS-232 Port: To connect to a computer or a printer, use RS 232 cable
PN: 1200-B-232.
• Drip Shield: A drip shield is also provided to minimize the risk of
water spillage from getting into the electrical connections. However,
care should be exercised to minimize the amount of water spilling
down the rear panel.
• Calibration weight size: The unit can be calibrated with a 50, 100 or
200 gram weight. A 100 gram test weight is provided.
Transformer Jack
11-21 Vdc only!
Battery
Compartment
Clamp Support
Post
RS-232 Port
Drip Shield
