Bottom Panel Description
The bottom panel of the UPM 2000 is shown in Figure 2-4. It includes the
following components:
• Leveling Jacks: There are three support legs located on the bottom
panel, two of which are threaded to be able to act as leveling jacks for
the height adjustment to level the unit.
• Drain Hose: The drain tube is stored in a clip on the bottom of the
unit. This drain is used to empty the unit when testing is complete.
Refer to Chapter 3 for details on usage.

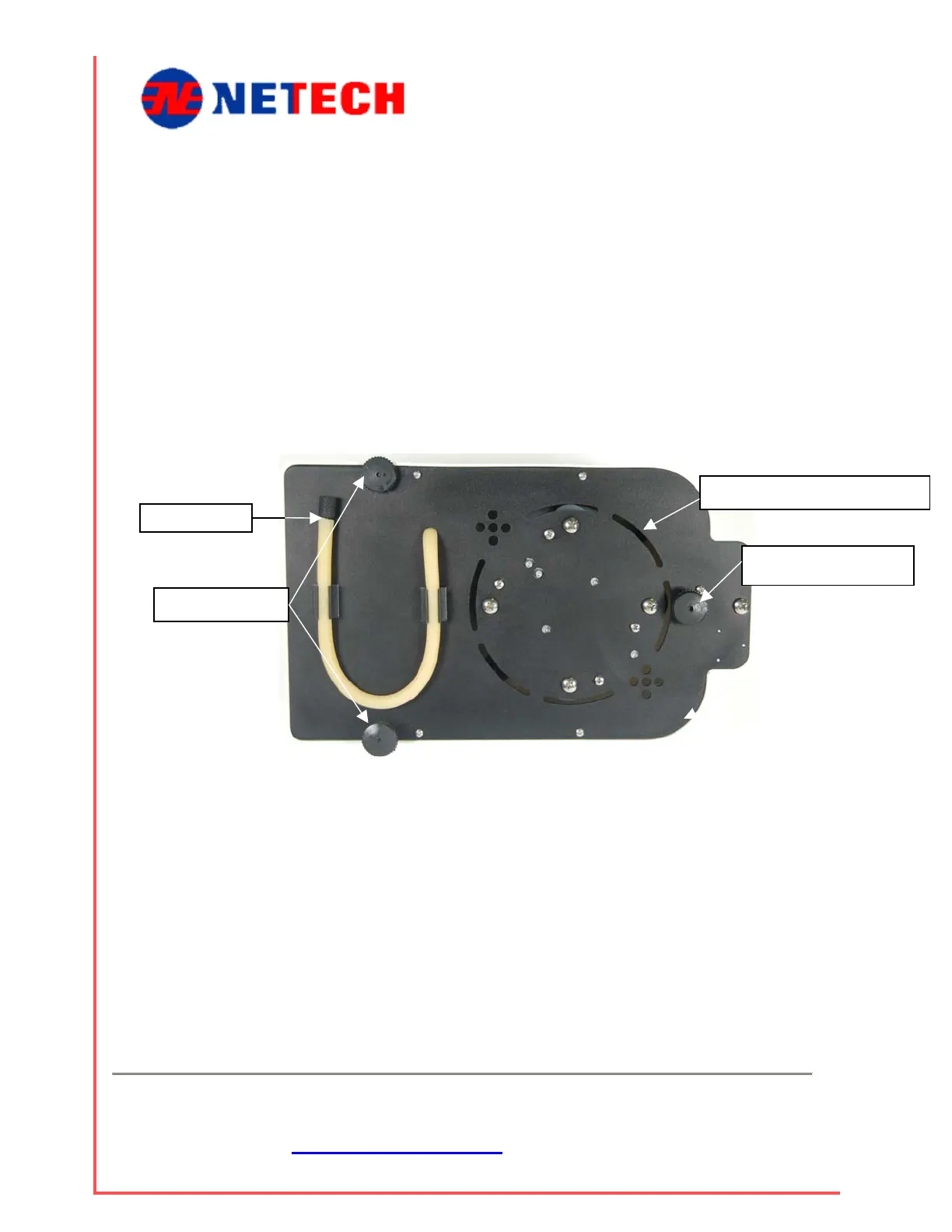

Figure 2-4: UPM 2000 Bottom Panel Layout
• Tank Overflow Drain Slots: In the event that excess water is poured
into the sound tank, water will be directed down the sides of the tank
and will exit through these slots onto the lab bench, thus preventing
water from getting into the electronics.
1-800-547-6547
Tank Overflow Drain Slots
Leveling Jacks
Non-Adjustable Leg
Drain Hose
