Security Gateway Manual Netgate-4200
Table 1: M.2 Socket Specifications and Capabilities
Socket Label Location Keying Bus Types Typical Uses
1 J14 Front B-Key PCIe 3.0 x1, USB 2.0/3.0 Wi-Fi, 4G/5G
2 J20 Middle B-Key USB 2.0, USB 3.0 Wi-Fi, 4G/5G
3 J13 Rear M-Key PCIe 4.0 x4, USB 2.0/3.0 B+M or M-Key NVMe
See also:
Refer to M.2 Edge Connector Keying for a depiction of the different M.2 key types.

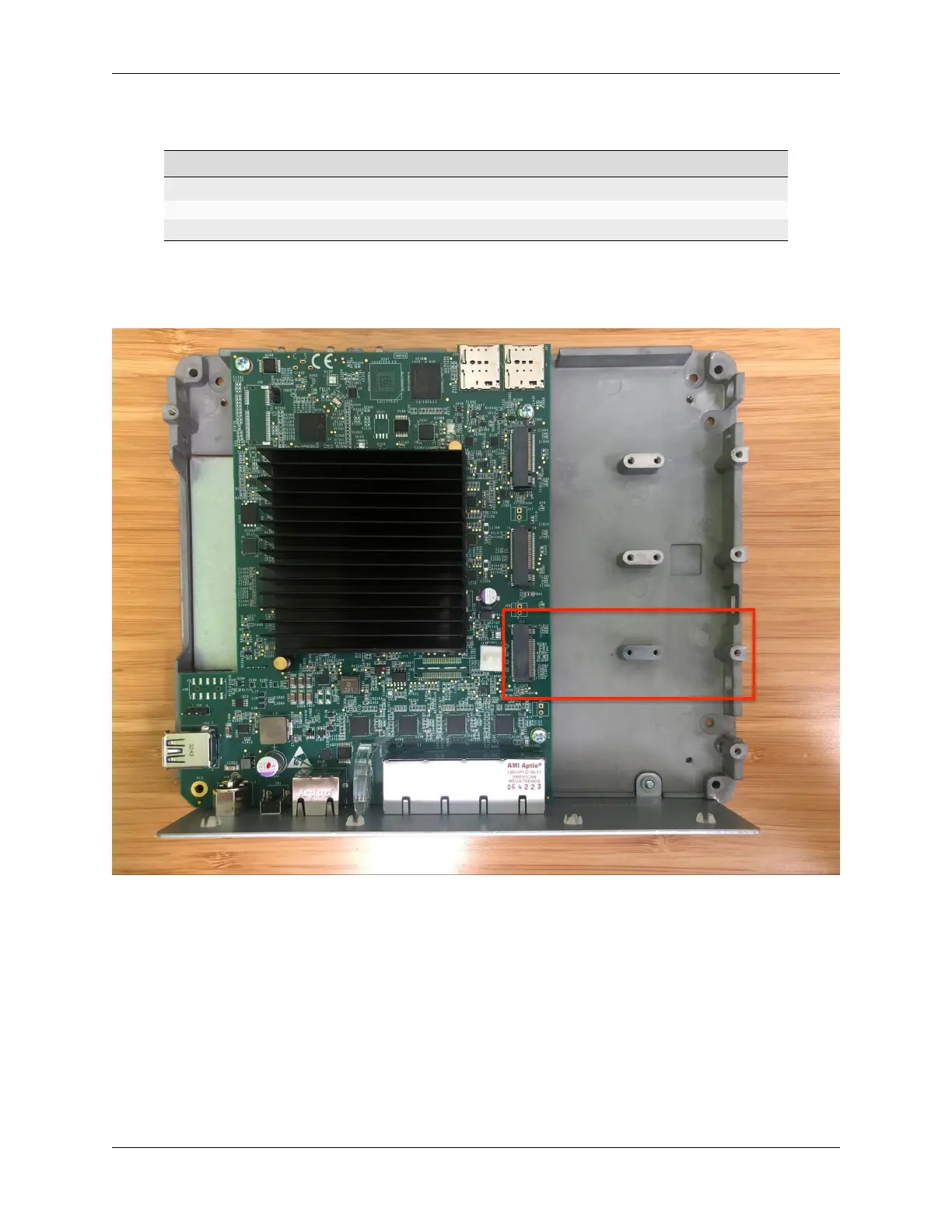

Fig. 1: Netgate 4200 top-down internal view with M.2 socket #3 (J13) highlighted
© Copyright 2024 Rubicon Communications LLC 98
