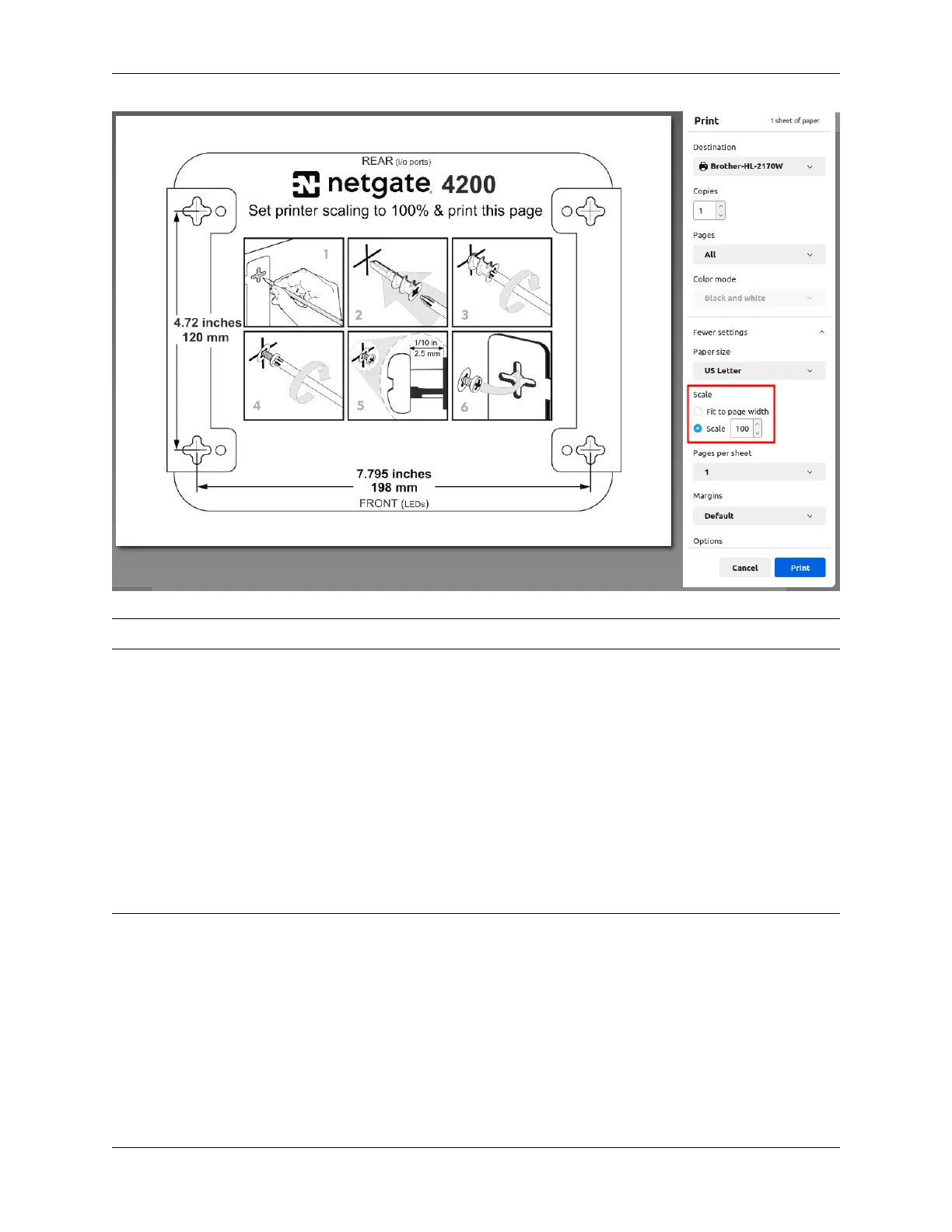

Note: The 100% Scale setting varies by PDF reader, printer manufacturer, and model.
Follow the pictured instructions on the PDF to complete the wall mount installation.
2.1.2 Outboard Wall Mount Instructions
Click on the button below to download the Wall Mount Template.
There are two options to use the template:
1. Print out the first page at 100% Scale on 8.5” x 17” paper for it to be accurate.
2. Print pages 2 and 3 at 100% scale on 8.5” x 11” paper.
Each page has a dotted line. Cut along the lines and verify the dimensions before using it.
Note: The mounting brackets themselves can also be used to make the wall markings.
