Security Gateway Manual XG-7100
2.2.1 System

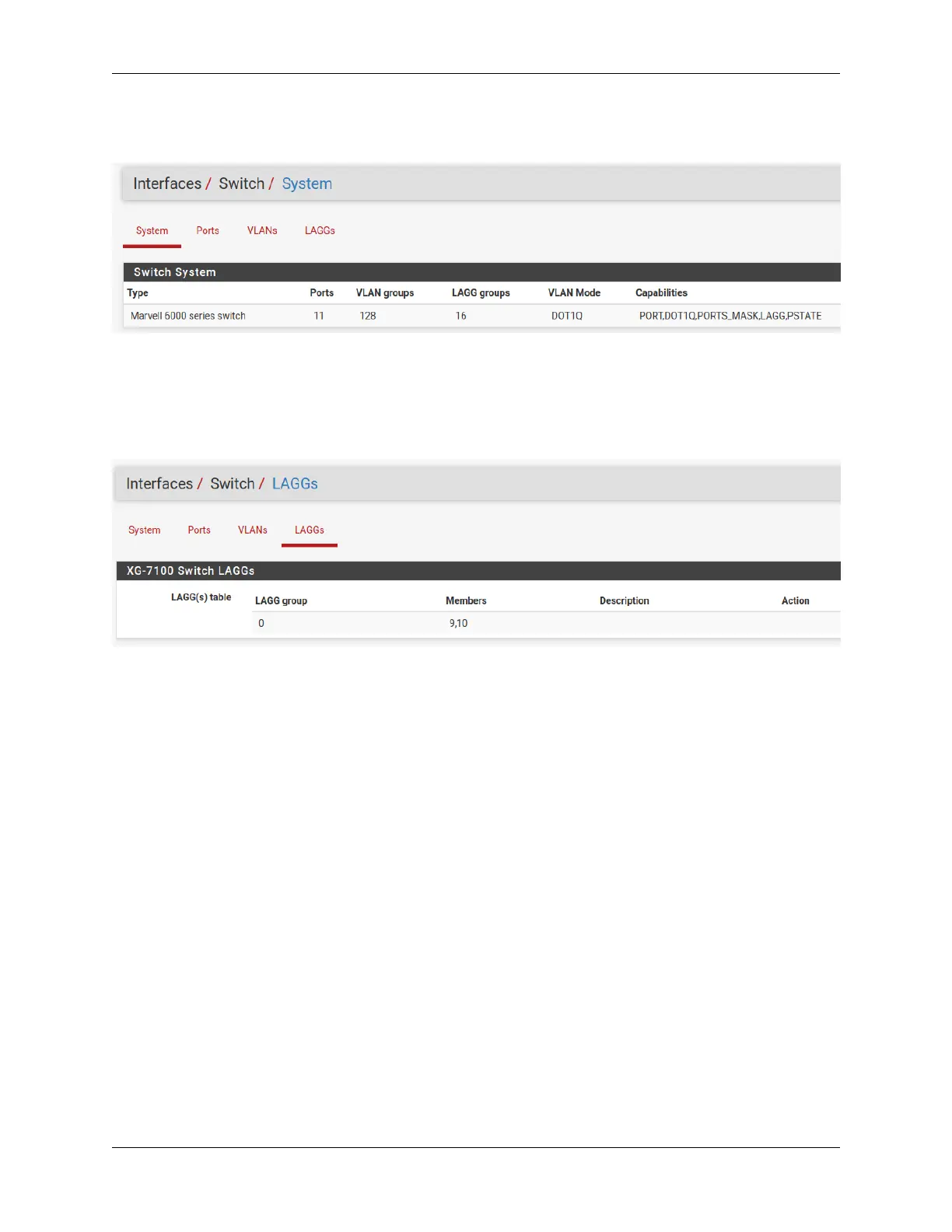

Fig. 1: Information on the Marvell 6000 switch
2.2.2 LAGGs
Fig. 2: Information on members of the switch LAG
2.2.3 Ports
Information on switchport status and port names. If 802.1q is enabled, this section can also set the native VLAN ID
for each port. The switch uses the Port VID as the VLAN ID for inbound untagged traffic on a given port.
2.2.4 VLANs
Enable/Disable 802.1q VLAN mode. Configure VLAN access/trunk interfaces with 802.1q or configure port groups
with Port VLAN Mode.
2.3 Interfaces Section
There are also relevant configuration items under Interfaces > Assignments.
© Copyright 2024 Rubicon Communications LLC 26
