NETGEAR DG834

Reference Manual for the ADSL Firewall Router DG834
7-22 Virtual Private Networking (Advanced Feature)
v2.0, September 2005
1. Log in to the DG834 on LAN A at its default LAN address of http://192.168.0.1 with its
default user name of
admin and password of password. Click the VPN Wizard link in the
main menu to display this screen. Click Next to proceed.
2. Fill in the Connection Name and the pre-shared key, select the type of target end point, and
click Next to proceed.

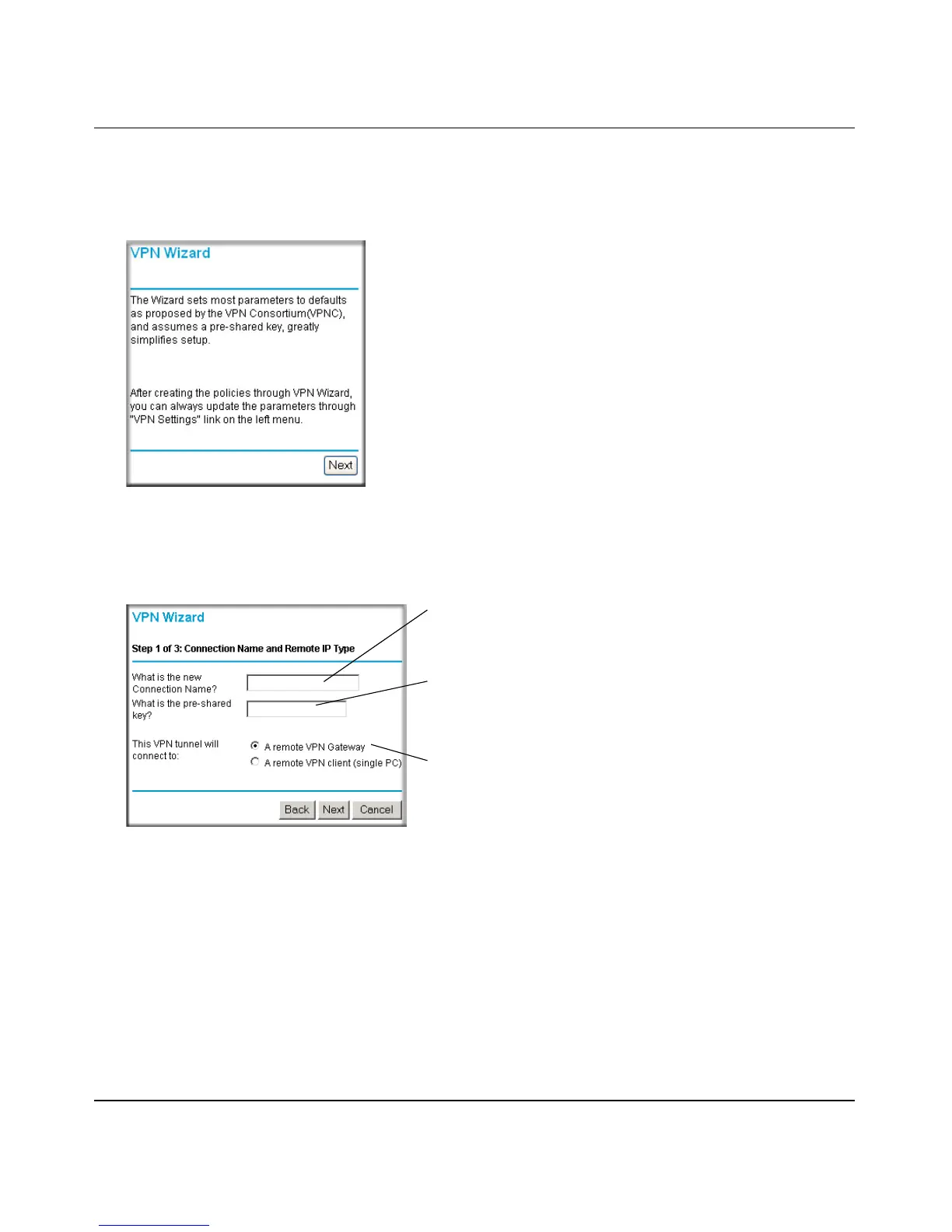

Figure 7-21
Figure 7-22
Enter t
h
e new
C
onnect
i
on Name:
(e.g., GtoG)
Enter the pre-shared key:
(e.g., 12345678)
Select the radio button:
A remote VPN Gateway
