Reference Manual for the ADSL Firewall Router DG834
Virtual Private Networking (Advanced Feature) 7-25
v2.0, September 2005

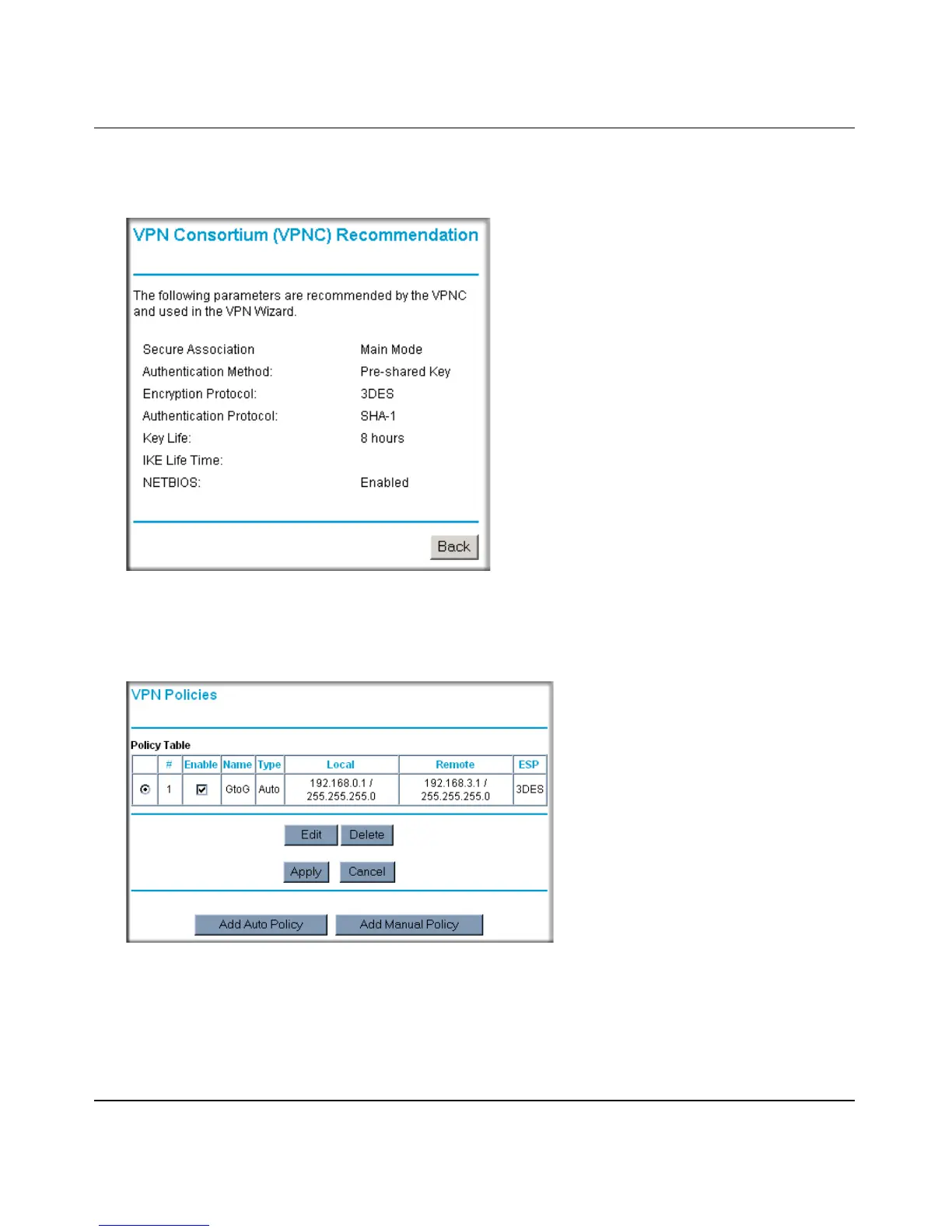

To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the “here” link (see Figure 7-25). Click Back to return to the Summary screen.
5. Click Done on the Summary screen (see Figure 7-25) to complete the configuration
procedure. The VPN Settings menu below displays showing that the new tunnel is enabled.
Note: Refer to “Using Auto Policy to Configure VPN Tunnels” on page 7-36 to enable the IKE
keepalive capability on an existing VPN tunnel.
Figure 7-26
Figure 7-27
