NETGEAR DG834

Reference Manual for the ADSL Firewall Router DG834
7-28 Virtual Private Networking (Advanced Feature)
v2.0, September 2005

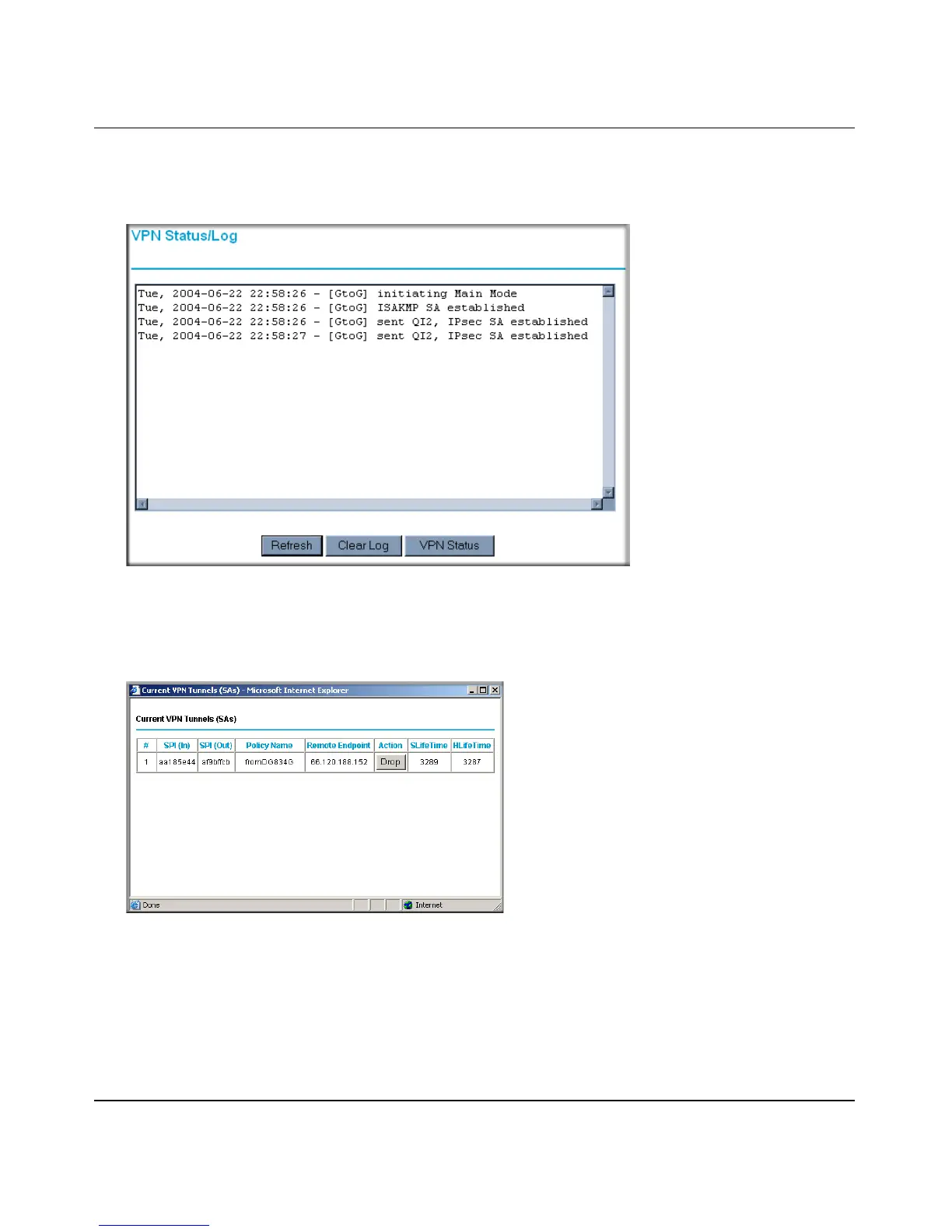

2. Open the DG834 management interface and click on VPN Status to get the VPN Status/Log
screen (Figure 7-30).
3. Click on VPN Status (Figure 7-30) to get the Current VPN Tunnels (SAs) screen
(Figure 7-31). Click on Connect for the VPN tunnel you want to activate.
Figure 7-30
Figure 7-31
