NETGEAR DG834

Reference Manual for the ADSL Firewall Router DG834
7-46 Virtual Private Networking (Advanced Feature)
v2.0, September 2005

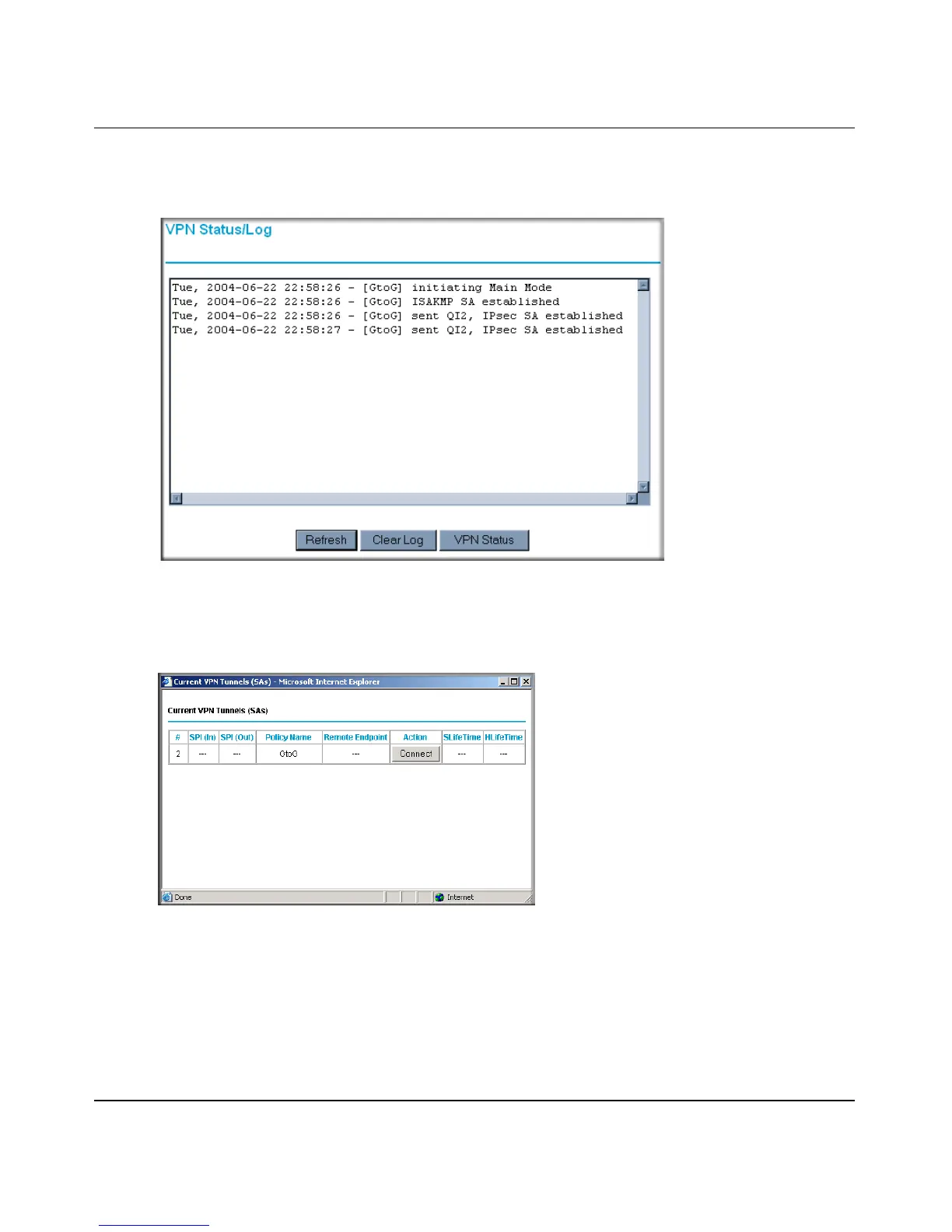

a. Open the DG834 management interface and click on VPN Status to display the VPN
Status/Log screen (Figure 7-46).
b. Click VPN Status (Figure 7-46) to display the Current VPN Tunnels (SAs) screen
(Figure 7-47). Click on Connect for the VPN tunnel you want to activate.
c. Review the VPN Status/Log screen (Figure 7-46) to verify that the tunnel is connected.
Figure 7-46
Figure 7-47
