NETGEAR DG834

Reference Manual for the ADSL Firewall Router DG834
3-6 Connecting the Router to the Internet
v2.0, September 2005

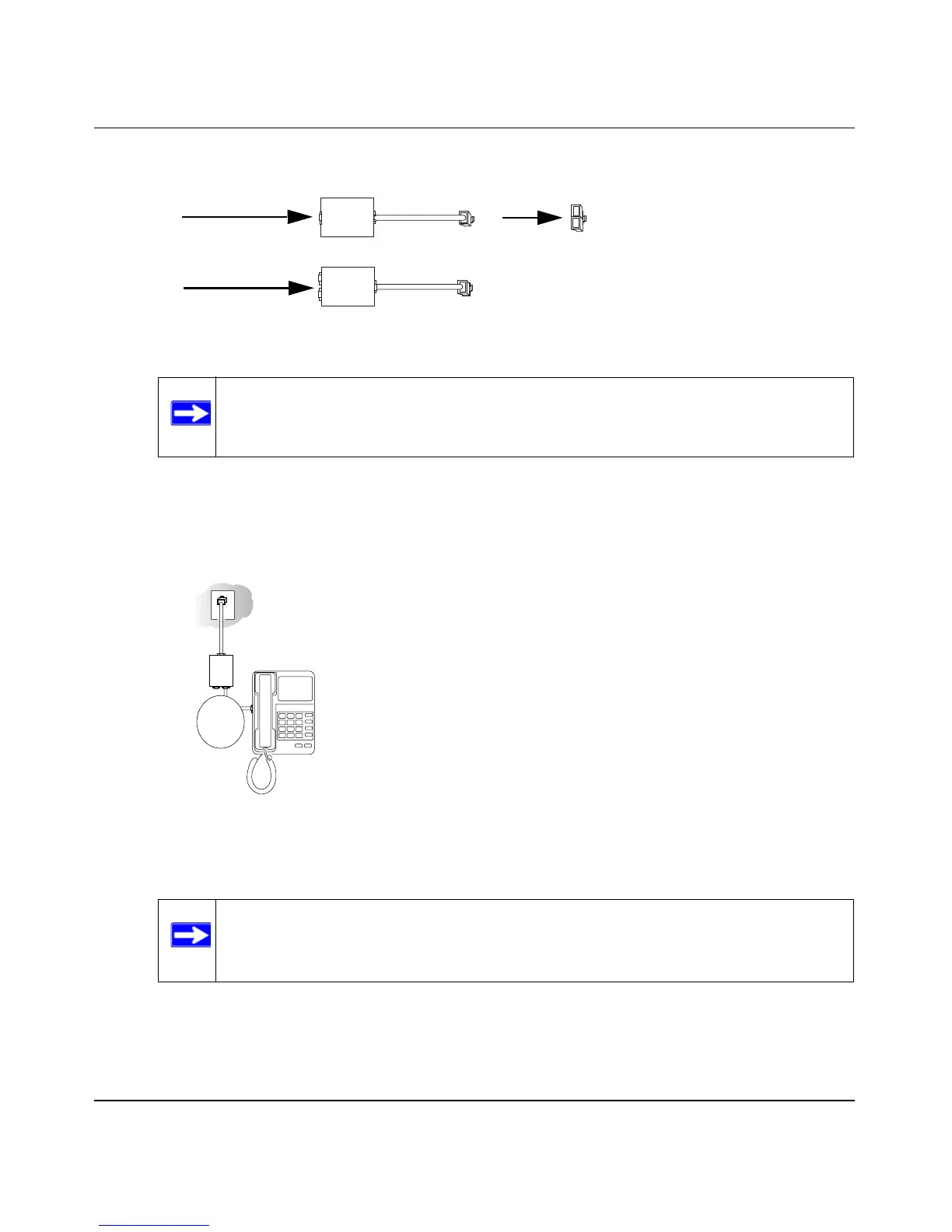

b. Two-Line Filter Example. Insert the two-line filter into the phone outlet and connect the
phone to the phone line connector (A):
Figure 3-3
Note: If you purchased the DG834 in a country where the filter is not included,
you must acquire one.
Figure 3-4
Note: To use a one-line filter with a separate splitter, insert the splitter into the
phone outlet, connect the one-line filter to the splitter, and connect the
phone to the filter.
0HONE
0HONE
!$3,
,INE
One-Line Filter
Two-Line Filter
Splitter
With Splitter
Phone
DSL
Line
A
