Model GS110TUP hardware
Model GS110TUP provides four 60W PoE++ (IEEE 802.3bt) Gigabit Ethernet ports (1–4),
four 30W PoE+ (IEEE 802.3at) Gigabit Ethernet ports (5–8), one dedicated Gigabit
Ethernet uplink port (9), and one dedicated SFP fiber uplink port (10).
Model GS110TUP front panel with ports and LEDs
The following figure shows the front panel of model GS110TUP.

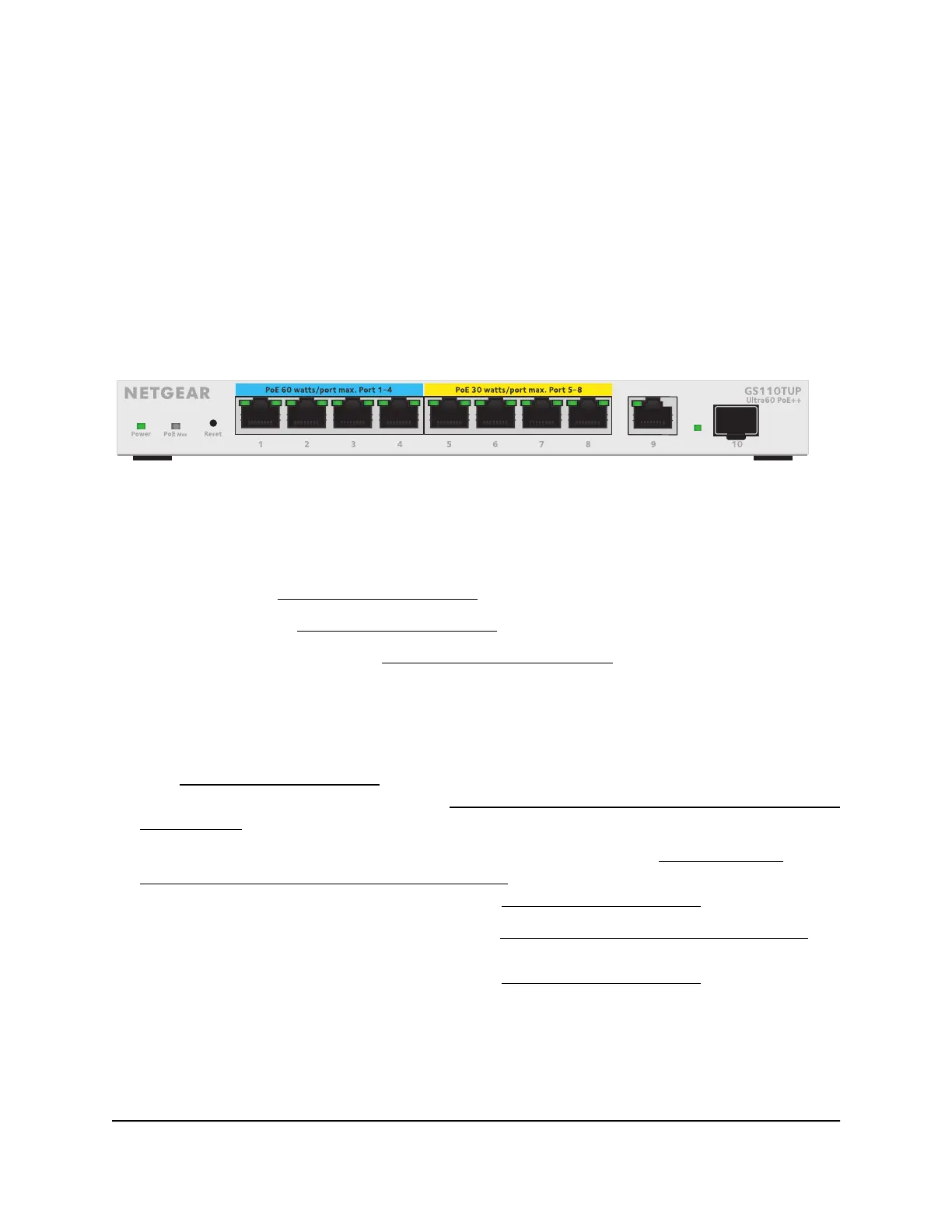

Figure 1. Model GS110TUP front panel
From left to right, the front panel of model GS110TUP provides the following
components:
•
Power LED (see Model GS110TUP LEDs on page 14).
•
PoE Max LED (see Model GS110TUP LEDs on page 14).
•
Recessed Reset button (see Multi-function Reset button on page 19).
•
Four independent 10/100/1000BASE-T RJ-45 PoE++ ports (1–4, see the ports with
the blue label) and four independent 10/100/1000BASE-T RJ-45 PoE+ ports (5–8,
see the ports with the yellow label), each with a left LED that functions as the
combined link, speed, and activity LED and a right LED that indicates the PoE status
(see Model GS110TUP LEDs on page 14). For more information about the
10/100/1000BASE-T RJ-45 ports, see RJ-45 ports for 10/100/1000M BASE-T Ethernet
connectivity on page 17.
•
One, non-PoE, 10/100/1000BASE-T RJ-45 uplink port (9, see RJ-45 ports for
10/100/1000M BASE-T Ethernet connectivity on page 17). A single port LED functions
as the combined link and activity LED (see Model GS110TUP LEDs on page 14).
•
One dedicated Gigabit SFP fiber port (10, SFP uplink port for fiber connectivity on
page 18) that can accept an optional transceiver module. A single port LED functions
as the combined link and activity LED (see Model GS110TUP LEDs on page 14).
