Ultra60 PoE++ for high-resolution
surveillance and security
The switch supports Ultra60 PoE++ with a very high PoE budget of 480W, which works
well for a surveillance and security configuration with high-resolution pan-tilt-zoom (PTZ)
cameras that require high PoE power. The following figure shows a PoE++ lighting
sample configuration in which seven PTZ cameras are powered through PoE++ ports
(1–7 in the following figure) on the switch. One port (port 8) connects to a ReadyNAS
storage system for data collection.
In this sample configuration, connect the Ethernet uplink port (port 9 in the following
figure) on the switch to a LAN port on a router (see 2) that is connected to the Internet
(see 3). You can also make a 1 Gbps fiber connection from port 10 on the switch to a
router that supports fiber, and which is connected to the Internet or to another device
that supports fiber.
The following figure shows model GS710TUP. A similar sample configuration could
apply to model GS110TUP if you attach PoE++ PTZ cameras to ports 1–4 only. (On
model GS110TUP, ports 5–8 support PoE+, not PoE++.)

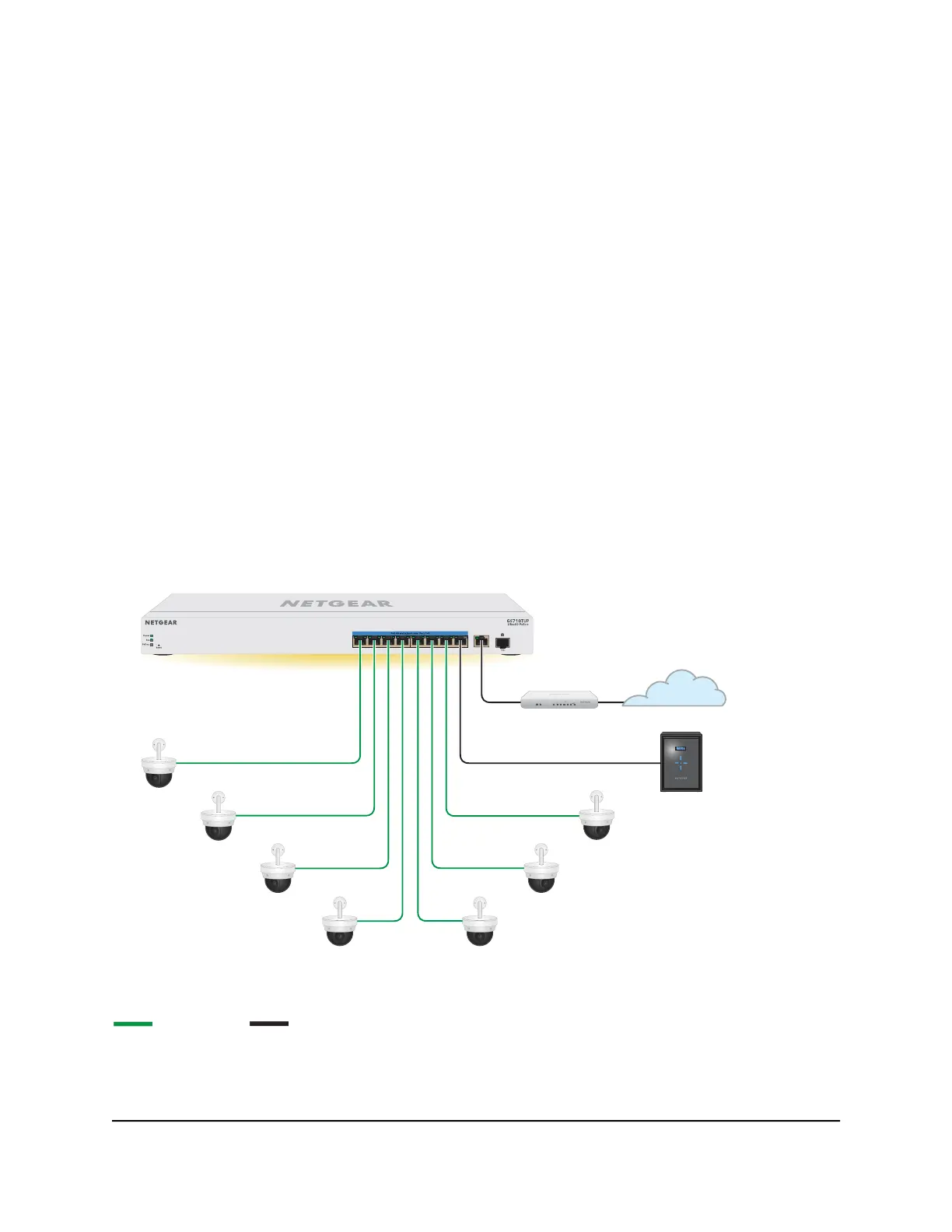

Figure 6. Sample PoE++ surveillance and security configuration
PoE++ Non-PoE
Hardware Installation Guide24Applications
