GS700TS Smart Switch Software Administration Manual
Monitoring the Switch 7-20
v1.0, June 2009
The RMON Events Log screen contains the following fields:
• Event – Displays the RMON Events.
• Log Number – Displays the log number.
• Log Time – Displays the time when the log entry was entered.
• Description – Displays the log entry description.
2. To refresh the RMON Events Log screen, click REFRESH.
Alarms
The RMON Alarms screen contains fields for setting network alarms. Network alarms occur when
a network problem or event, is detected. Rising and falling thresholds generate events.
To set RMON alarms:

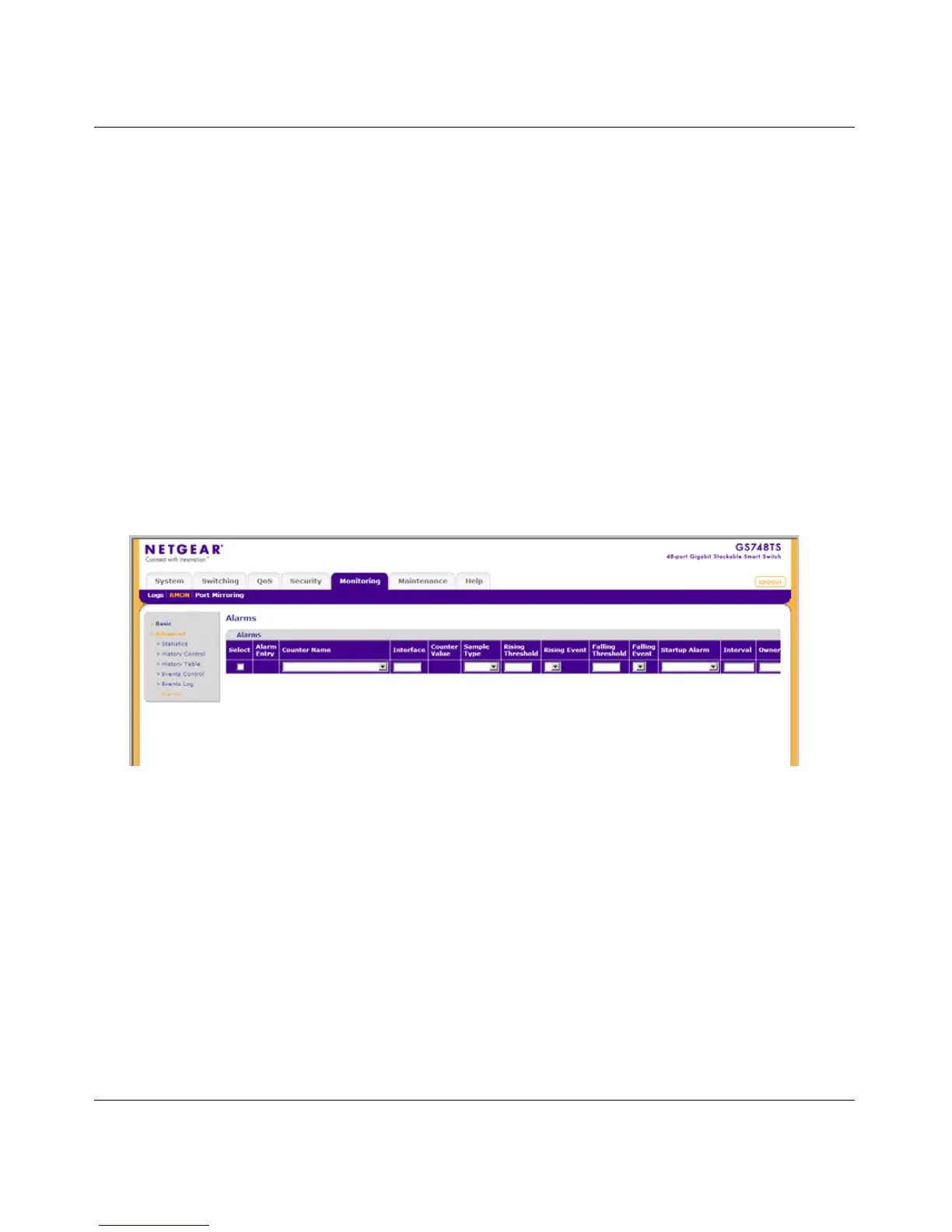

1. Click Monitoring > RMON > Advanced > Alarms. The RMON Alarms screen displays:
The RMON Alarms screen contains the following fields:
• Alarm Entry – Displays the alarm entry.
• Counter Name – Select the MIB variable.
• Interface – Enter the port or LAG interface.
• Counter Value – Displays the selected MIB variable value.
Figure 7-12
