GS700TS Smart Switch Software Administration Manual
Introduction to the Web Browser Interface 2-10
v1.0, June 2009
4. Click again on the Unit 1 quick box, and the quick box and all the port boxes for Unit 1
appear blank, marking the ports as neither tagged nor untagged.
5. You may click on individual port boxes to toggle their tagged/untagged status
Interface View and Selection
A port or LAG interface may be selected from a table by using the interface selection row, located
above the row of column headers. Clicking on the Unit No. or LAGS displays the ports in the unit
or the LAGs:
To display all ports in a stacking unit:
1. Click the unit number in the interface selection row. The screen displays a table of all ports in
the selected stacking unit.

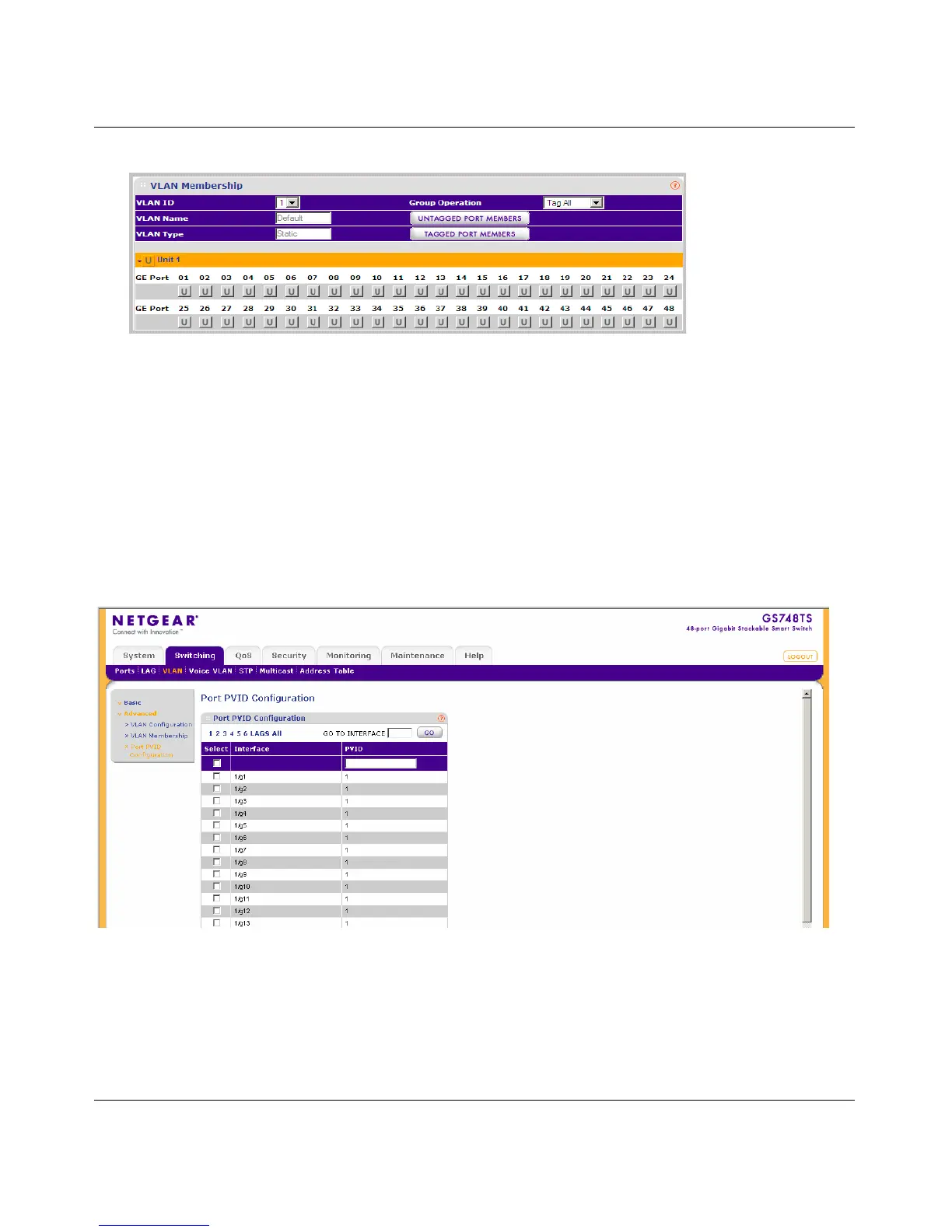

Figure 2-13
