GS700TS Smart Switch Software Administration Manual
Managing System Settings 3-52
v1.0, June 2009
• Port ID SubType – Displays the port ID subtype. For example, MAC address.
• Port ID – Displays the port identification of the port transmitting the LLDP frame.
• System Name – Displays the administratively assigned device name.
• Time To Live – Displays the amount of time (in seconds) in which the information
received in the LLDPDU from the remote device remains valid.
2. Click REFRESH to refresh the Neighbors Information screen.
To view LLDP Neighbors detailed information:
1. Click System > LLDP > Advanced > Neighbors Information. The LLDP Neighbors
Information screen displays.

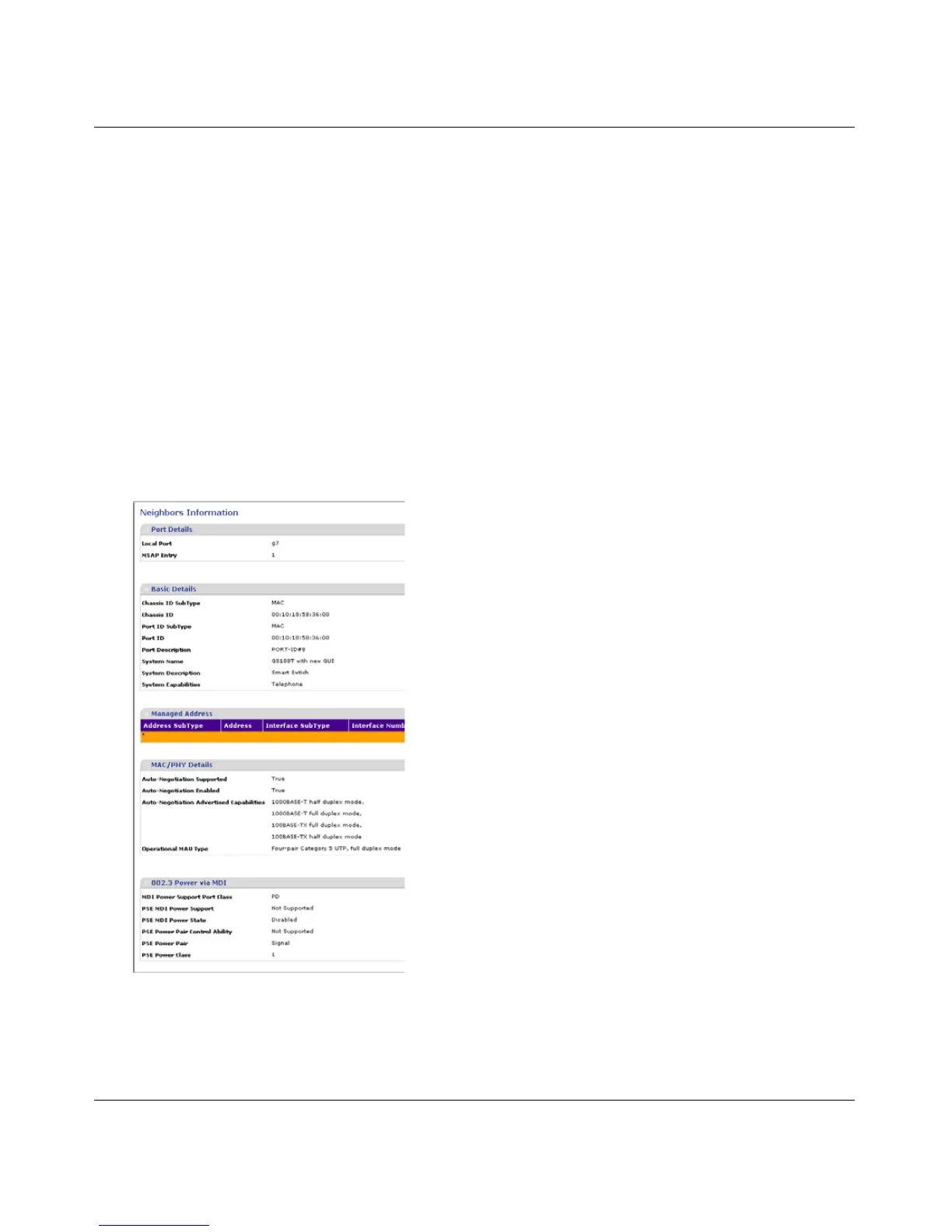

2. Click the MSAP Entry to view its detailed information. The Neighbors Information window
opens:
Figure 3-28
