Model M4350-8X8F (SKU XSM4316)
This section describes the switch hardware features for model M4350-8X8F (SKU
XSM4316). This half-width model provides a switching fabric of 320 Gbps and supports
the following port configurations:
•
Eight multispeed Ethernet RJ-45 ports that support 10 Gbps, 5 Gbps, 2.5 Gbps, 1
Gbps, and 100 Mbps
•
Eight SFP+ fiber uplink ports that support 10 Gbps or 1 Gbps transceiver modules
Front panel model M4350-8X8F

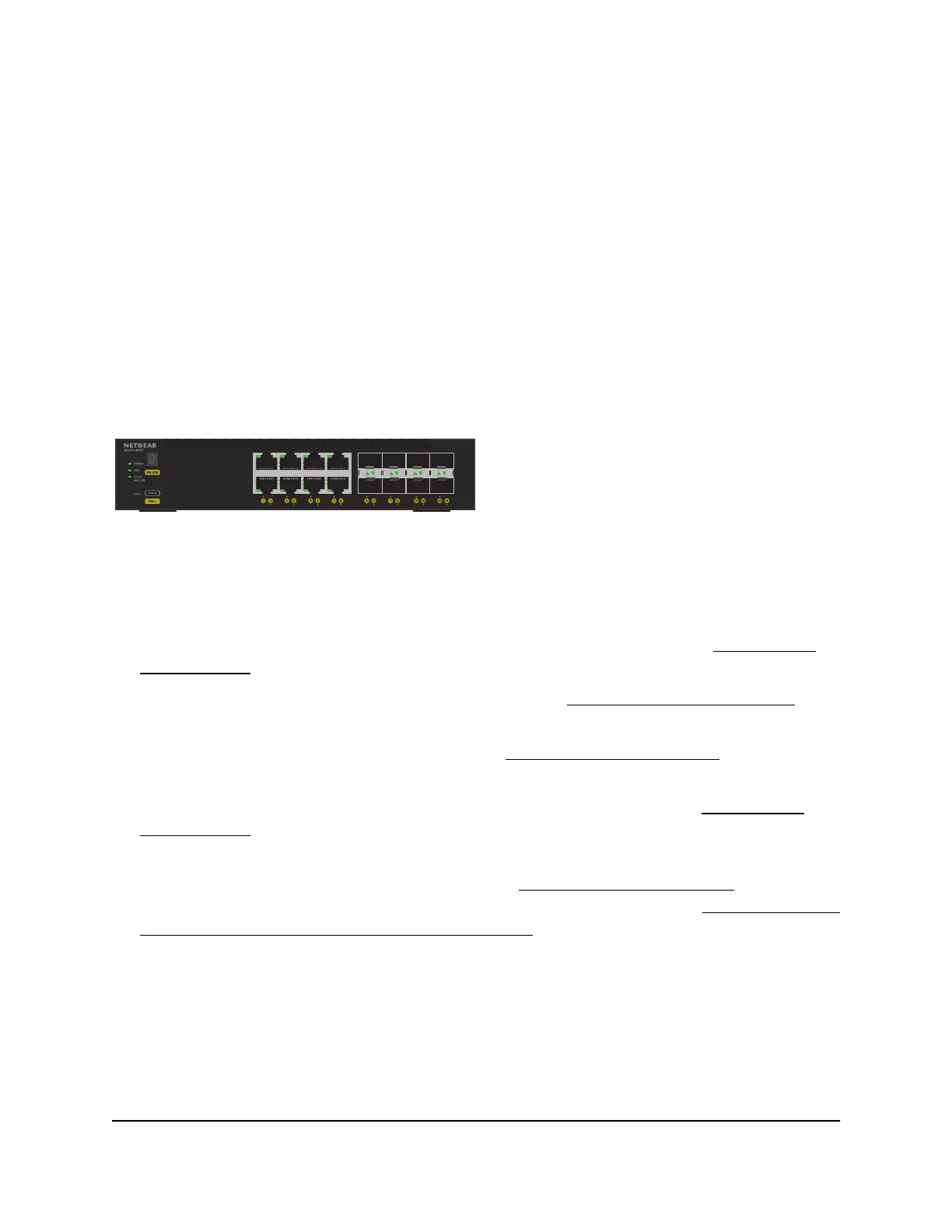

Figure 1. Front panel model M4350-8X8F
From left to right, the front panel of model M4350-8X8F provides the following common
components, which are clearly named or numbered on the front panel:
•
POWER, FAN, STACK MASTER, and STACK ID: System LEDs (see LEDs model
M4350-8X8F on page 15)
•
RESET: Recessed dual-function Reset button (see Dual-function Reset button on
page 38)
•
USB C: One USB Type-C console port (see USB Type-C console port on page 39)
•
8 multispeed Ethernet ports, numbered 1 through 8: Eight 10G/5G/2.5G/1G/100M
autosensing RJ-45 ports, each with a left LED and a right LED (see LEDs model
M4350-8X8F on page 15)
•
8 SFP+ ports, numbered 9 through 16: Eight 10G/1G SFP+ fiber uplink ports, each
with a combined speed and activity LED (see LEDs model M4350-8X8F on page 15)
For information about optional devices for the fiber uplink ports, see Fiber transceiver
modules and cables for SFP+ and SFP28 ports on page 37.
Hardware Installation Guide14Hardware Overview
Fully Managed Switches M4350 Series
