Optional Step 6: Install an auxiliary power
supply
This procedure is optional.
An internal power supply is preinstalled in all models. The full-width models provide
one or more power supply unit (PSU) bays in which you can install one or more optional
auxiliary power supplies (APSs). For more information, see Auxiliary power supplies on
page 42.
The switch can continue to operate while you install an optional APS.
To install an APS:
1.
Pull out the cover plate from the PSU bay.

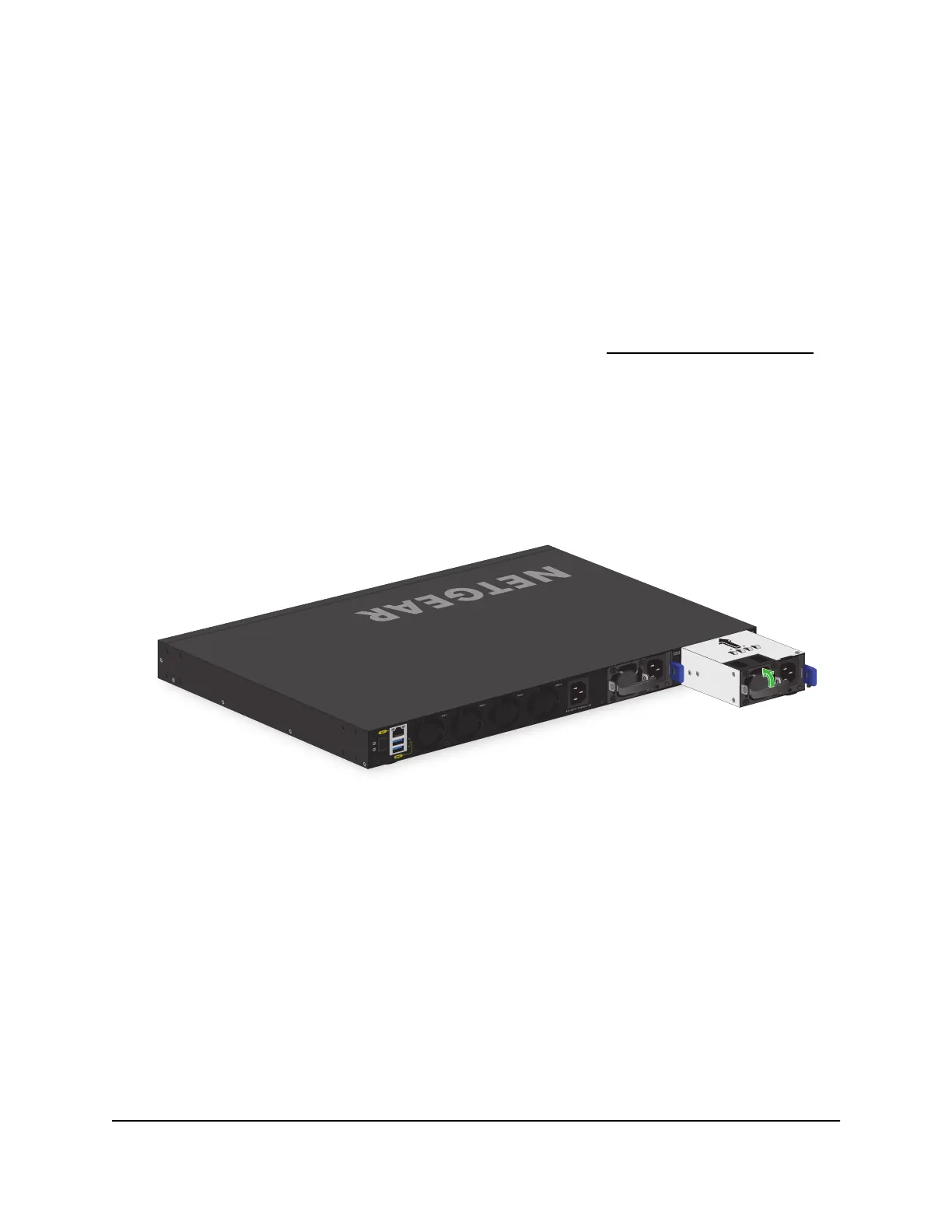

2. Insert the APS into the PSU bay, and gently push the APS into the bay until the latch
locks.
WARNING: When inserting the APS, do not use unnecessary force. Doing so can
damage the connectors on the rear of the APS and on the midplane.
3.
Connect the end of the power cord to the power receptacle on the APS.
4. Plug the AC power cord into a power source such as a wall socket or power strip.
After you supply power to the APS, the AC OK LED on the APS light solid green, and
the DC OK LED on the APS lights solid or blinking green.
If one of the LEDs light red, check that the power cord is plugged in correctly and
that the power source is good.
Hardware Installation Guide63Installation
