NETGEAR M4500 Series User Manual

Model M4500-48XF8C
NETGEAR M4500 Series Switches Hardware Installation Guide 10

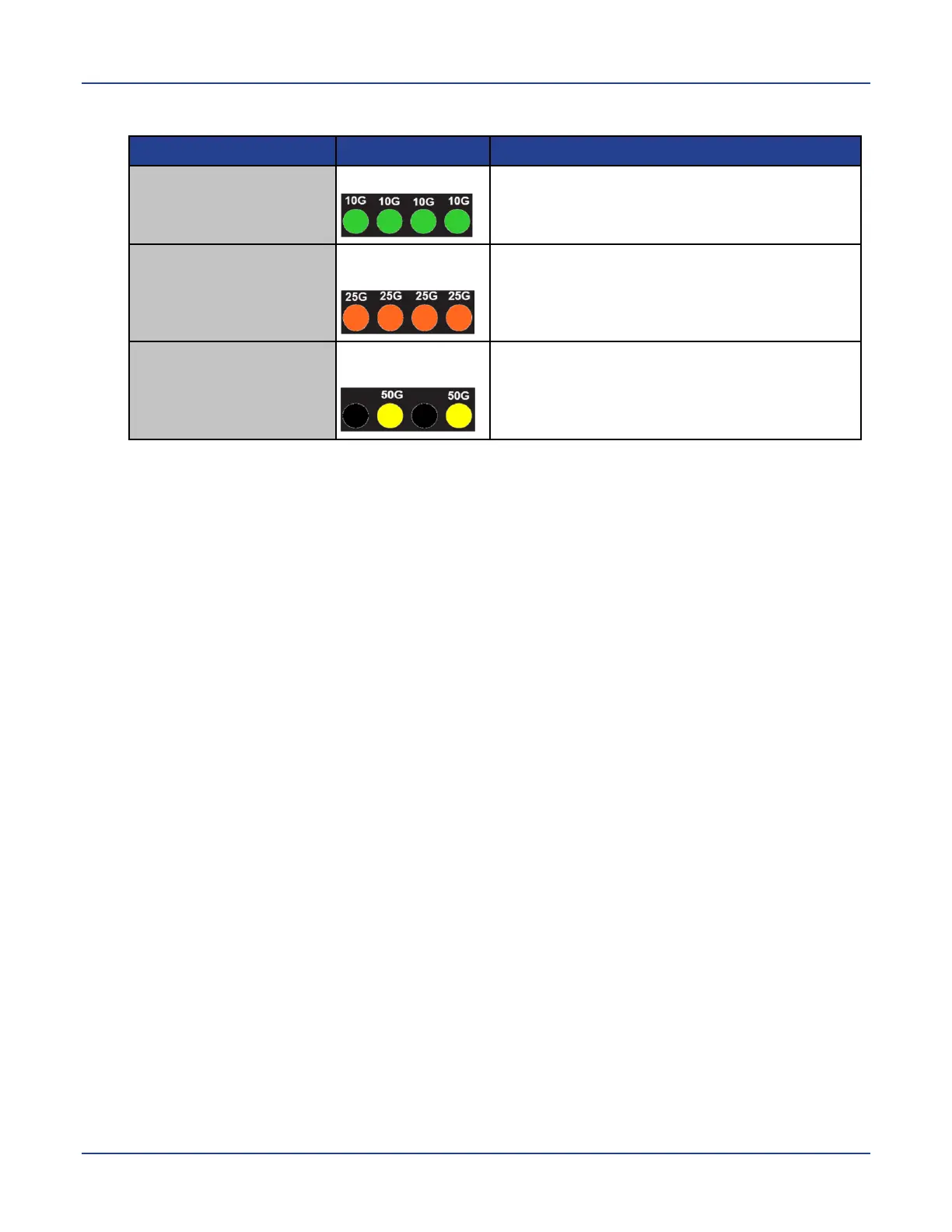

There are 4 LEDs for each 100G QSFP28 port to show the fan-out port status. Here are LED
definitions for 100G QSFP28 fan-out use cases.
QSFP28 Mode
LED
Description
10G Mode
Each LED is green
The 100G QSFP28 is fan-out to four ports and
operating at 10G port speed
25G Mode
Each LED is
amber
The 100G QSFP28 is fan-out to four 25G
ports and operating at 25G port speed
50G Mode
The 2
nd
and 4
th
LEDs are yellow
The 100G QSFP28 is fan-out and operating to
two 50G ports
Ports of model M4500-48XF8C
The switch chassis is equipped with the following ports:
 48 SFP28 ports (10/25GbE)
 8 QSFP28 ports (10/25/40/50/100GbE speed)
 1 Management port
 1 Console port
 1 USB port
The chassis has 48 SFP28 and 8 QSFP28 ports. Each of these ports uses an optical
transceiver, active optical cable, or direct-attached cable to connect the SFP28 or QSFP28
port to servers and other Ethernet switches. For more information on obtaining the
appropriate SFP28 or QSFP28 modules, refer to “Supported Transceivers and Cables”.
By default, the port speeds are as follows:
 The SFP28 ports are set to 10G.
 The QSFP28 ports are set to 100G.
If you want to use a higher or lower port speed than the default port speed, manually change
the port speed before you insert the module. For more information see the CLI manual.
The chassis also provides the following system ports:
 One management port enables you to manage the switch operation using an RJ-45
Ethernet cable.
 One console port enables you to perform the initial configuration by connecting to a PC
with the RJ-45 to DB-9 serial adapter cable.
 One USB port provides the option to install a switch runtime image or configuration file
into storage memory.

NETGEAR M4500 Series Specifications

General

Brand	NETGEAR
Model	M4500 Series
Category	Switch
Language	English
