NETGEAR M4500 Series User Manual

NETGEAR M4500 Series Switches Hardware Installation Guide 6
Model M4500-48XF8C
Models M4500-48XF8C supports forty-eight 25G SFP28 ports and eight 100G QSFP28 ports.
Chassis for model M4500-48XF8C

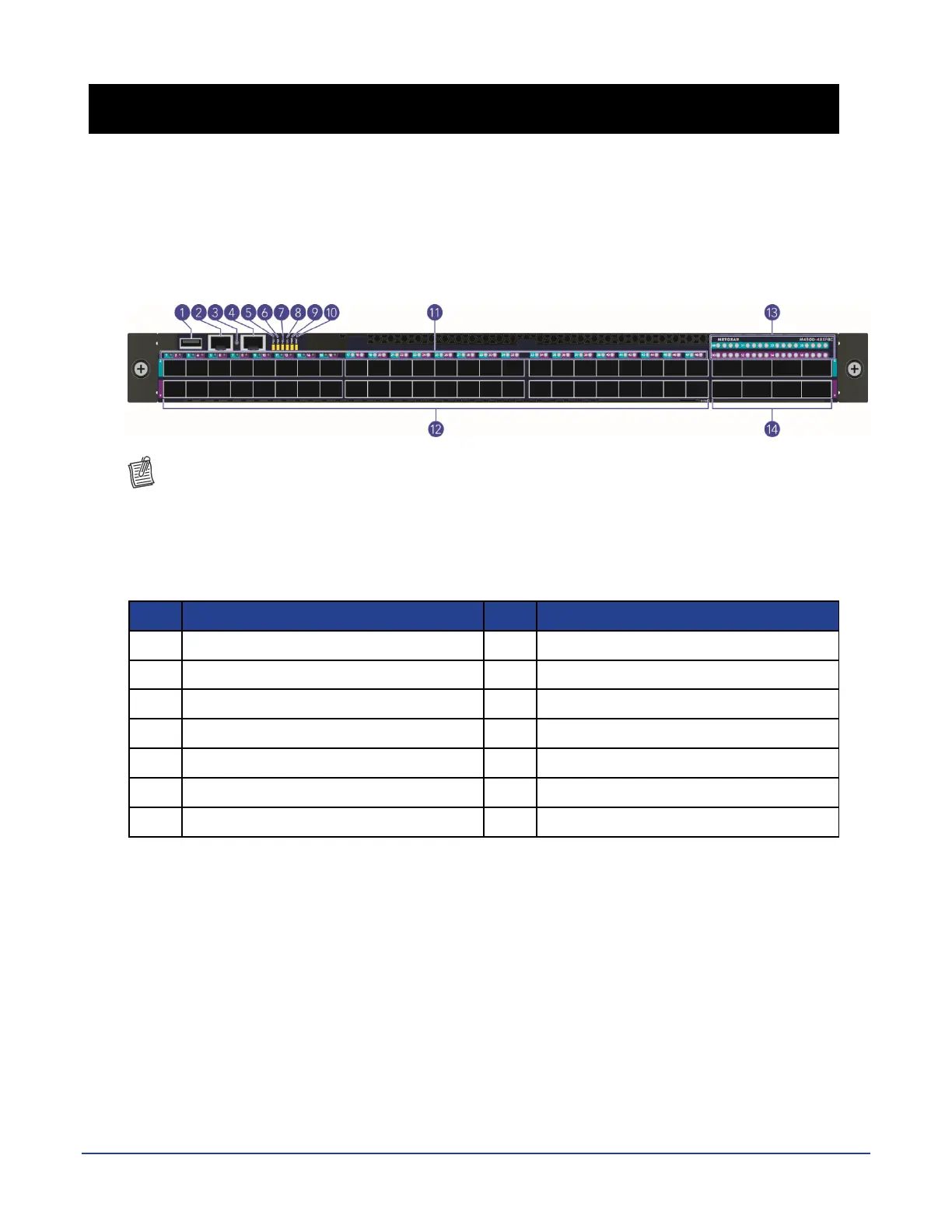

Front view of the switch
NOTE:
The port LEDs for the odd-numbered ports (that is, for the upper ports) are shown against a
cyan background color.
The port LEDs for even-numbered ports (that is, for the lower ports) are shown against a
purple background color.
No.
Item
No.
Item
1
USB Port
8
System Info. LED
2
Console Port
9
Power LED
3
Link/Activity LED
10
BMC LED
4
Management Port
11
SFP28 Port LEDs
5
PSU1 LED
12
SFP28 Ports
6
Fan LED
13
QSFP28 Port LEDs
7
PSU2 LED
14
QSFP28 Ports
