NETGEAR M4500 Series User Manual

Model M4500-32C
NETGEAR M4500 Series Switches Hardware Installation Guide 16

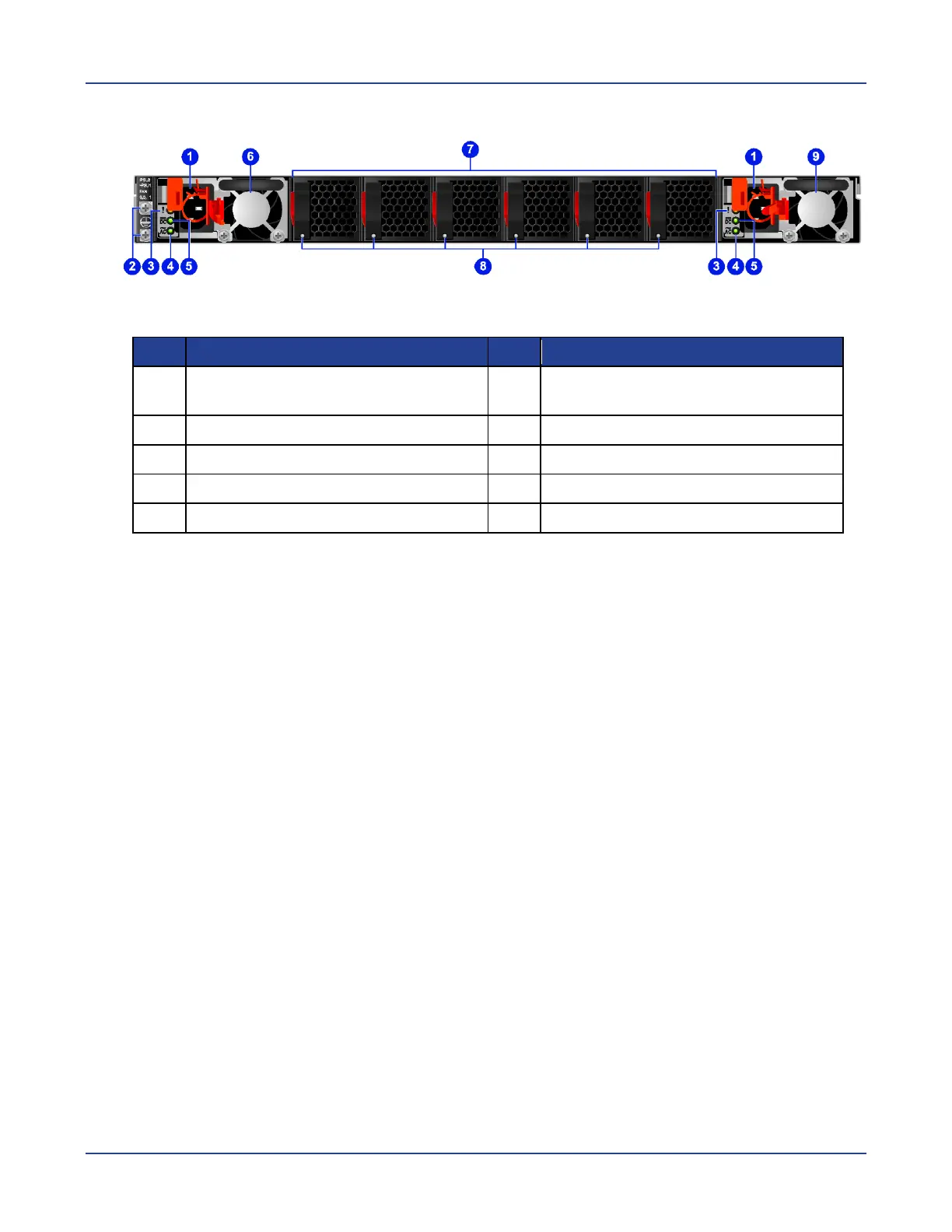

Rear view of the switch
No.
Item
No.
Item
1
AC Power Connector (with Plug
Retainer)
6
PSU2
2
Earth Grounding (M4 screw)
7
Hot-swappable Fan Modules (6)
3
PSU Warning LED
8
Fan LEDs
4
PSU DC LED
9
PSU1
5
PSU AC LED
On the rear panel, the left power supply is PSU2 and the right power supply is PSU1. The fan
modules from the left to the right are FAN6, FAN5, FAN4, FAN3, FAN2, and FAN1.
