You can use the LEDs to verify status and connections. The following table lists and describes
each LED and button on the front panel of the router.

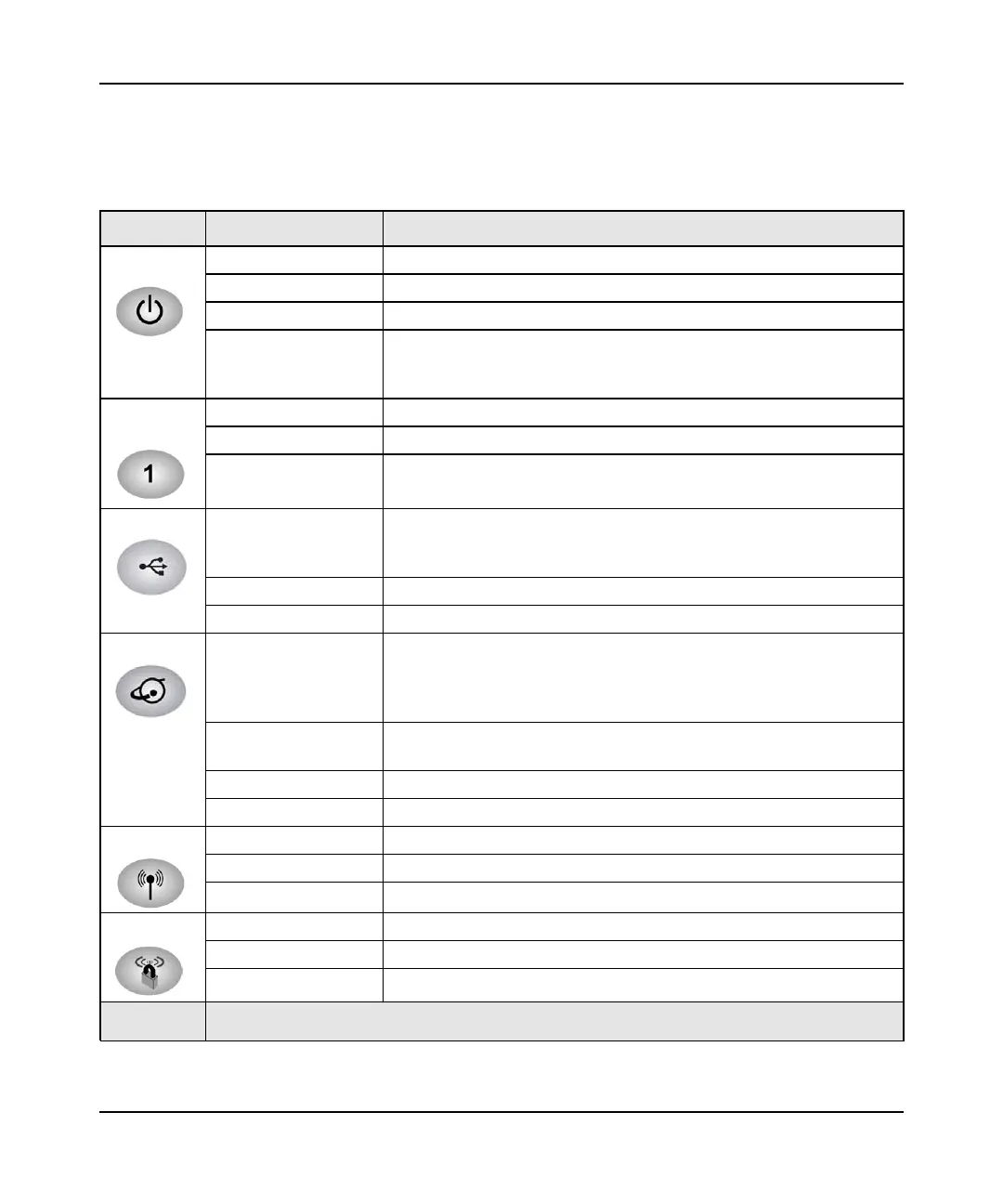

Table 1. LED and Front Panel Button Descriptions
LED LED Activity Description
Power Solid green Solid green. Power is supplied to the router.
Solid Red POST (Power-On Self-Test) failure or device malfunction
Off Power is not supplied to the router
Factory Reset Lights momentarily when the Restore Factory Settings button is
pressed for 6 seconds, then blinks red three times when released. It
then turns green as the gateway resets to the factory defaults.
LAN Ports
1 - 4
Solid green The Local port has detected an Ethernet link with a device.
Blinking green Data is being transmitted or received.
Off No link is detected on this port.
USB Off • No USB device connected.
• “Safely Remove Hardware” has been activated.
• An error has occurred with the device.
Solid green USB device is ready to use.
Blinking green USB device is in use.
Internet Port Solid green There is an Internet session. If the session is dropped due to an idle
timeout, and an ADSL connection is still present, the light will remain
green. If the session is dropped for any other reason, the light will
turn off.
Solid red IP connection failed (no DHCP or PPPoE response, PPPoE
authentication failed).
Blinking green Data is being transmitted over the ADSL port.
Off No Internet connection detected or device in bridged mode.
Wireless Solid green Indicates that the Wireless port is initialized.
Blinking green Data is being transmitted or received over the wireless link.
Off The Wireless Access Point is turned off.
WPS Solid green WPS wireless security is being enabled.
Blinking green The device is in the 2-minute interval to synchronize security.
Off WPS is not being set or enabled.
