Mobile Broadband Wireless-N Router MBRN3000 User Manual
Configuring Your Router to the Internet 1-3
v1.0, October 2009

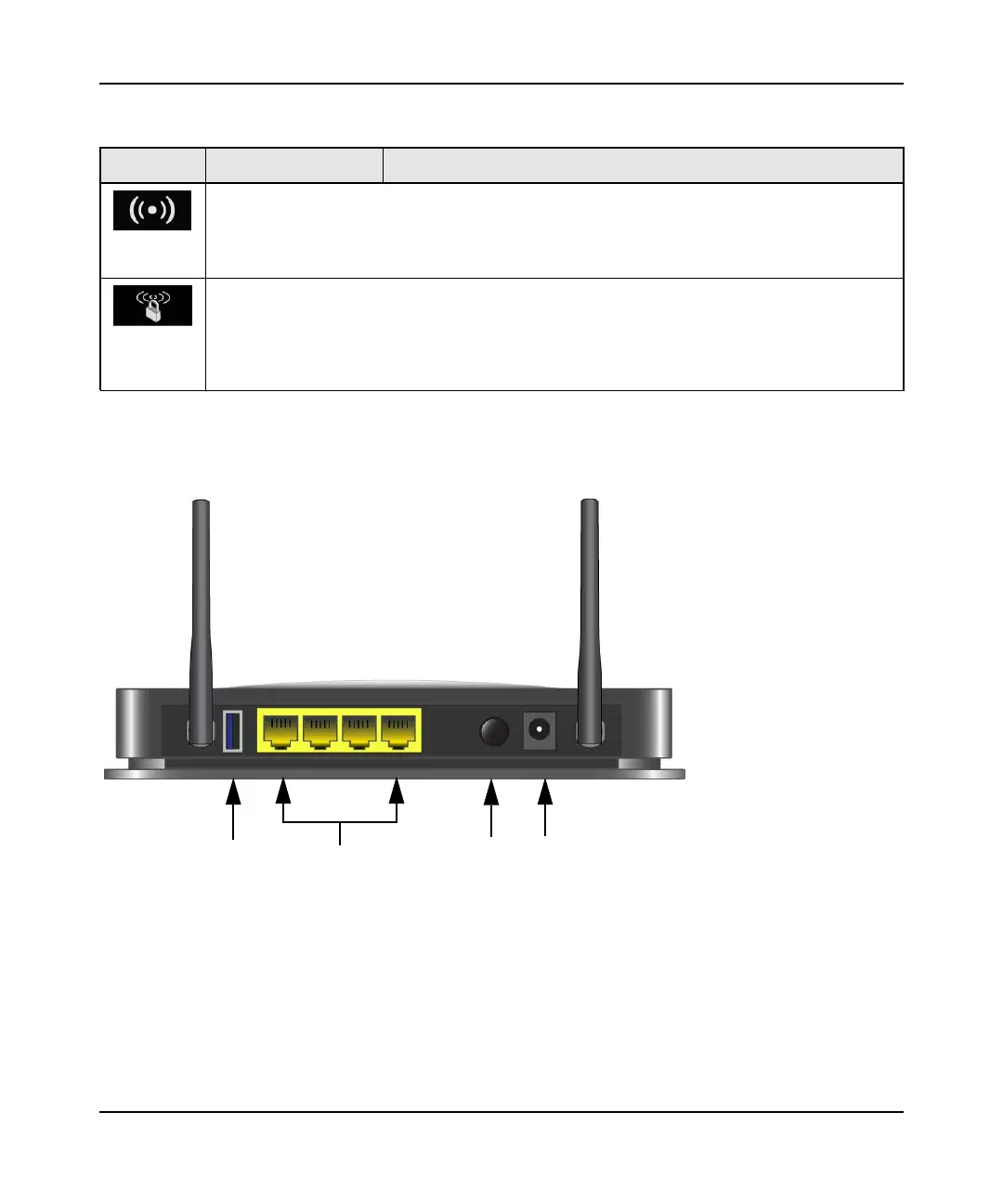

Router Back Panel
The back panel of the router contains port connections.
Viewed from left to right, the rear panel contains the following elements:
1. USB port for 3G/UMTS modem.
2. Four local Ethernet RJ-45 LAN ports for connecting the router to the local computers.
3. Power On/Off button.
4. AC power adapter input.
Wireless
On/Off
Turn the wireless radio in the router on and off. The wireless radio is on by default. The LED
located below this button indicates if the wireless radio is on or off.
Push 'N'
Connect
(WPS)
Pushing this button opens a 2-minute window for the router to connect with other WPS-
enabled devices. For more information, about using the WPS method to implement security,
see “Using Push 'N' Connect (WPS) to Configure Your Wireless Network” on page 1-22.
Figure 2
Table 1. LED and Front Panel Button Descriptions (continued)
LED LED Activity Description
1
2
3
4
