Mobile Broadband Wireless-N Router MBRN3000 User Manual
Advanced Configuration 5-14
v1.0, October 2009
• In the Metric field, a value of 1 will work since the ISDN router is on the LAN.
This represents the number of routers between your network and the destination. This is a
direct connection, so it is set to 1.
• Private is selected only as a precautionary security measure in case RIP is activated.
Configuring Static Routes
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default user name
of admin and default password of password, or using whatever user name, password and
LAN address you have chosen for the router.

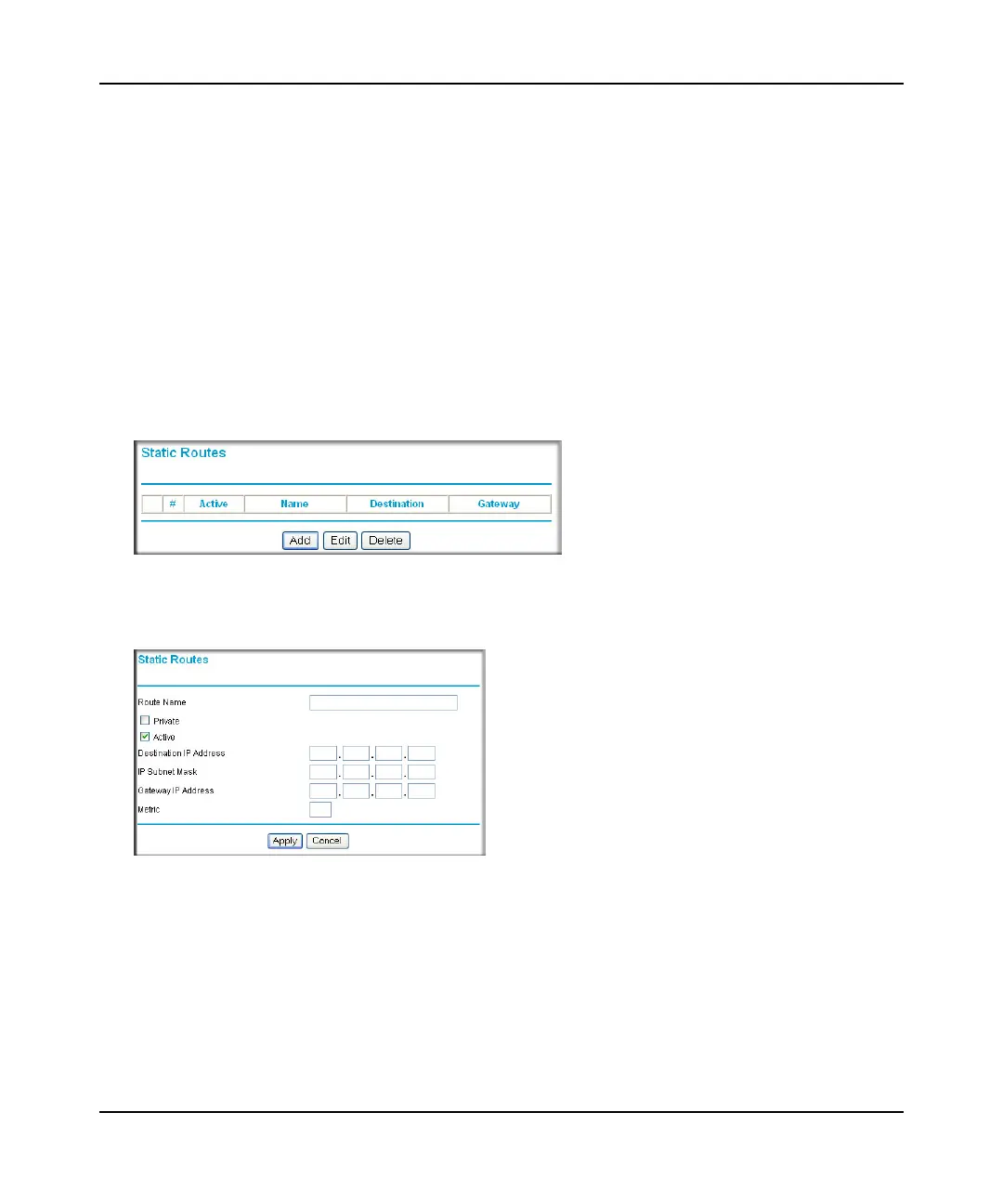

2. From the main menu, under the Advanced heading, select Static Routes to view the Static
Routes screen:
3. Click Add or Edit to display the following screen:
4. Fill in or change the fields:
• Route Name. The route name is for identification purposes only.
• Private. Select this check box if you want to limit access to the LAN only.
The static route will not be reported in RIP.
• Active. Select this check box to make this route effective.
Figure 5-6
Figure 5-7
