Mobile Broadband Wireless-N Router MBRN3000 User Manual
Protecting Your Network 3-9
v1.0, October 2009

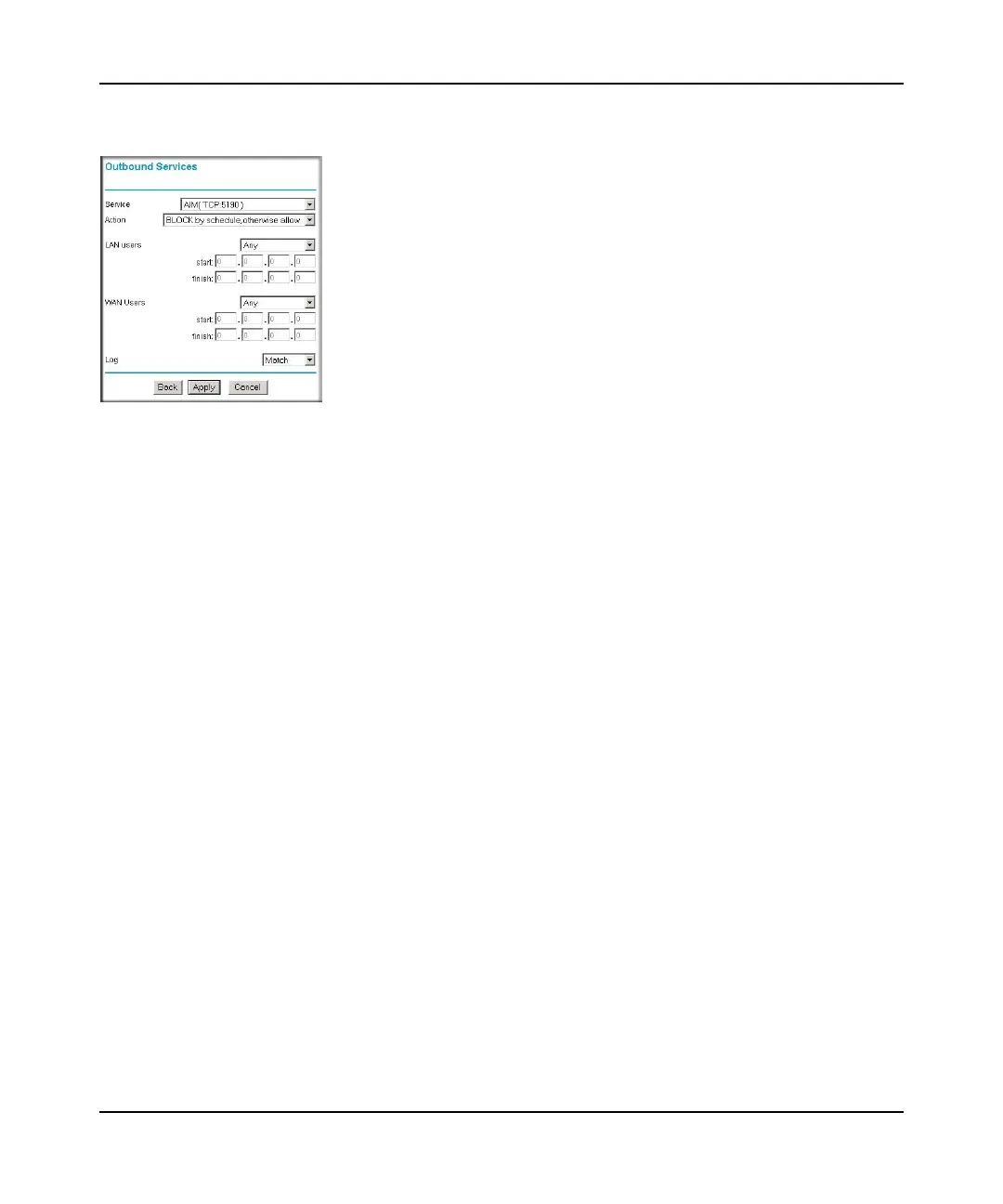

The following screen shows AIM selected in the Service list:
The Outbound Services screen includes the following fields:
• Service. Select the application or service from the drop-down list to be allowed or blocked.
You can use the Add Custom Service feature to add any additional services or applications that
are not in the list; see “Defining Services” for details.
• Action. Choose when you want this type of traffic to be handled. You can block or allow
always, or you can block or allow according to the schedule defined in the Schedule screen.
• LAN users. This setting determine which packets are covered by the rule, based on their
source LAN IP address. Select the desired option:
– Any. All IP addresses are covered by this rule.
– Address range. If this option is selected, you must fill in the Start and Finish fields.
– Single address. Enter the required address in the Start field.
• WAN users. This setting determines which packets are covered by the rule, based on their
destination WAN IP address. Select the option that you want:
– Any. All IP addresses are covered by this rule.
– Address range. If this option is selected, you must fill in the Start and Finish fields.
– Single address. Enter the required address in the Start field.
• Log. Select whether the traffic will be logged. The choices are:
– Never. No log entries will be made for this service.
– Always. Any traffic for this service type will be logged.
– Match. Traffic of this type that matches the rule will be logged.
– Not match. Traffic of this type that does not match the rule will be logged.
Figure 3-6
