NETGEAR MS108EUP Hardware Installation Guide

Back panel
The back panel contains a Kensington lock slot for an optional security cable and an
DC power receptacle for the DC power adapter cable that came in the switch package.
The DC power receptacle is rated at 54V / 4.7A.
The following figure shows the back panel.

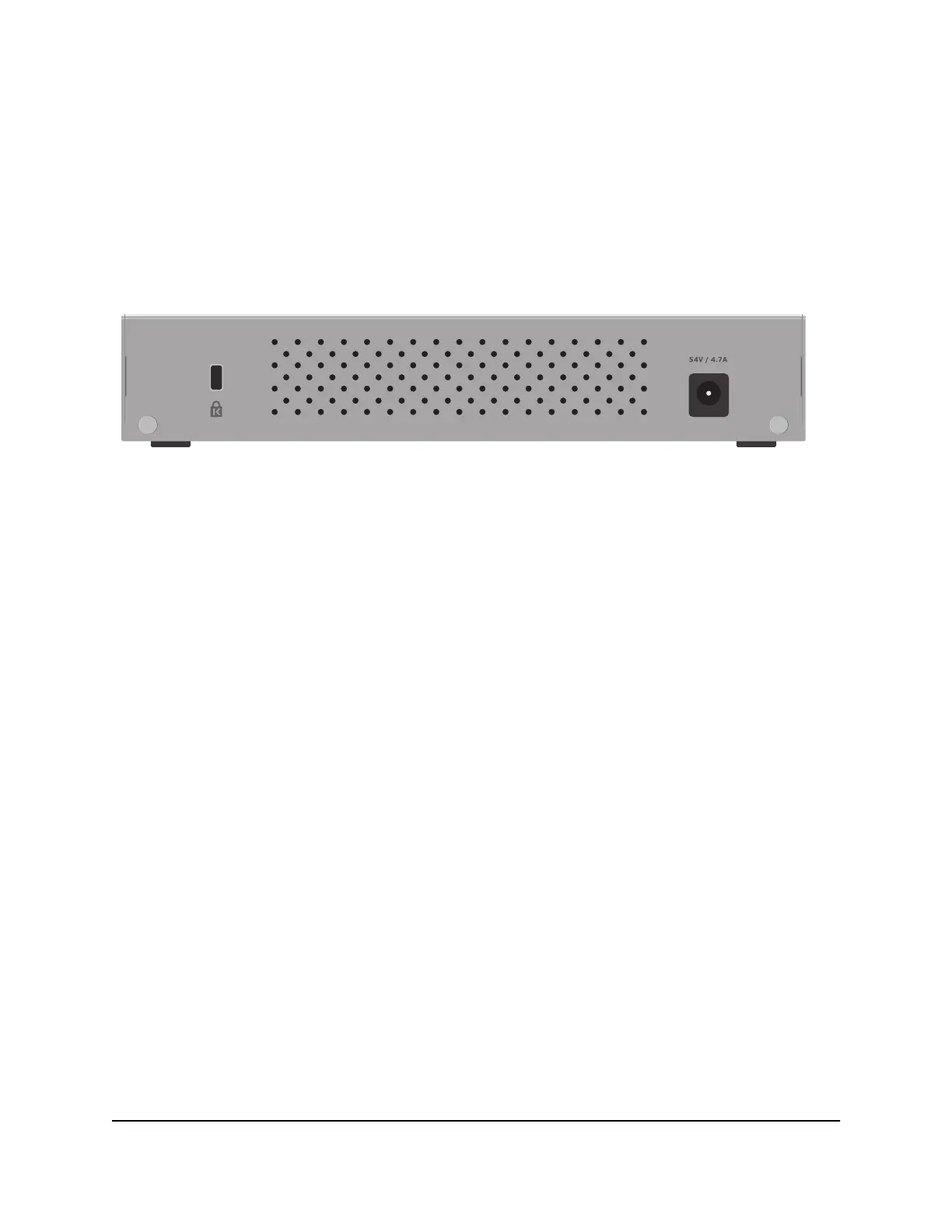

Figure 2. Back panel
RJ-45 ports for 100/1000/2.5GBASE-T
Ethernet connectivity
All RJ-45 copper (Ethernet) ports support autosensing. When you insert a cable into an
RJ-45 port, the automatically ascertains the maximum speed (100 Mbps, 1 Gbps, or
2.5 Gbps) and duplex mode (half-duplex or full-duplex) of the attached device:
All ports support a Category 5e (Cat 5e) cable (or higher-rated Ethernet cable) terminated
with an 8-pin RJ-45 connector.
To simplify the procedure for attaching devices, all RJ-45 ports support Auto Uplink
technology. This technology allows you to attach devices to the RJ-45 ports with either
straight-through or crossover cables.
When you insert a cable into one of the ’s RJ-45 ports, the automatically performs the
following actions:
•
Senses whether the cable is a straight-through or crossover cable.
•
Determines whether the link to the attached device requires a normal connection
(such as when you are connecting the port to a computer) or an downlink connection
(such as when you are connecting the port to a switch or WiFi access point).
•
Automatically configures the RJ-45 port to enable communications with the attached
device. The Auto Uplink technology compensates for setting uplink connections
while eliminating concern about whether to use crossover or straight-through cables
when you attach devices.
Hardware Installation Guide14Hardware Overview
8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch MS108EUP

NETGEAR MS108EUP Specifications

General

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	64
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Copper ethernet cabling technology	100BASE-T, 1000BASE-T
Jumbo frames	12000
MAC address table	16000 entries
Packet buffer memory	1.5 MB
DHCP features	DHCP client
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Number of multicast groups filtered	128
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Total Power over Ethernet (PoE) budget	230 W
Power source	PoE
Mean time between failures (MTBF)	373644 h
Certification	CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI
Product color	Gray
Housing material	Metal

Weight and Dimensions

Depth	140 mm
Width	210 mm
Height	40 mm
Weight	900 g
