NETGEAR MS108EUP Hardware Installation Guide

Wall-mount the switch vertically
The bottom panel of the switch provides two VESA mount holes at an exact distance of
3.94 in. (100 mm), center-to-center, so that you can mount the switch vertically to a wall.
The switch ships with wall-mount screws and anchors that you can secure to a wall and
attach the switch to.
To mount the switch vertically to a wall:
1.
Locate the two VESA mount holes on the bottom panel of the switch.
2. Mark the holes on the wall where you want to mount the switch.
The holes must be 3.94 in. (100 mm) apart, center-to-center.
3.
Drill holes into the wall for four anchors in which you will insert M4 x L25 mm screws.
The screws and anchors are in the switch package.
4. Insert the anchors into the wall and tighten the screws with a No. 2 Phillips screwdriver.
Leave about ¼ inch (6 mm) of each screw protruding from the wall so that you can
insert the screws into the holes on the bottom of the switch.
5.
Line up the holes on the bottom panel of the switch with the screws in the wall and
mount the switch to the wall.

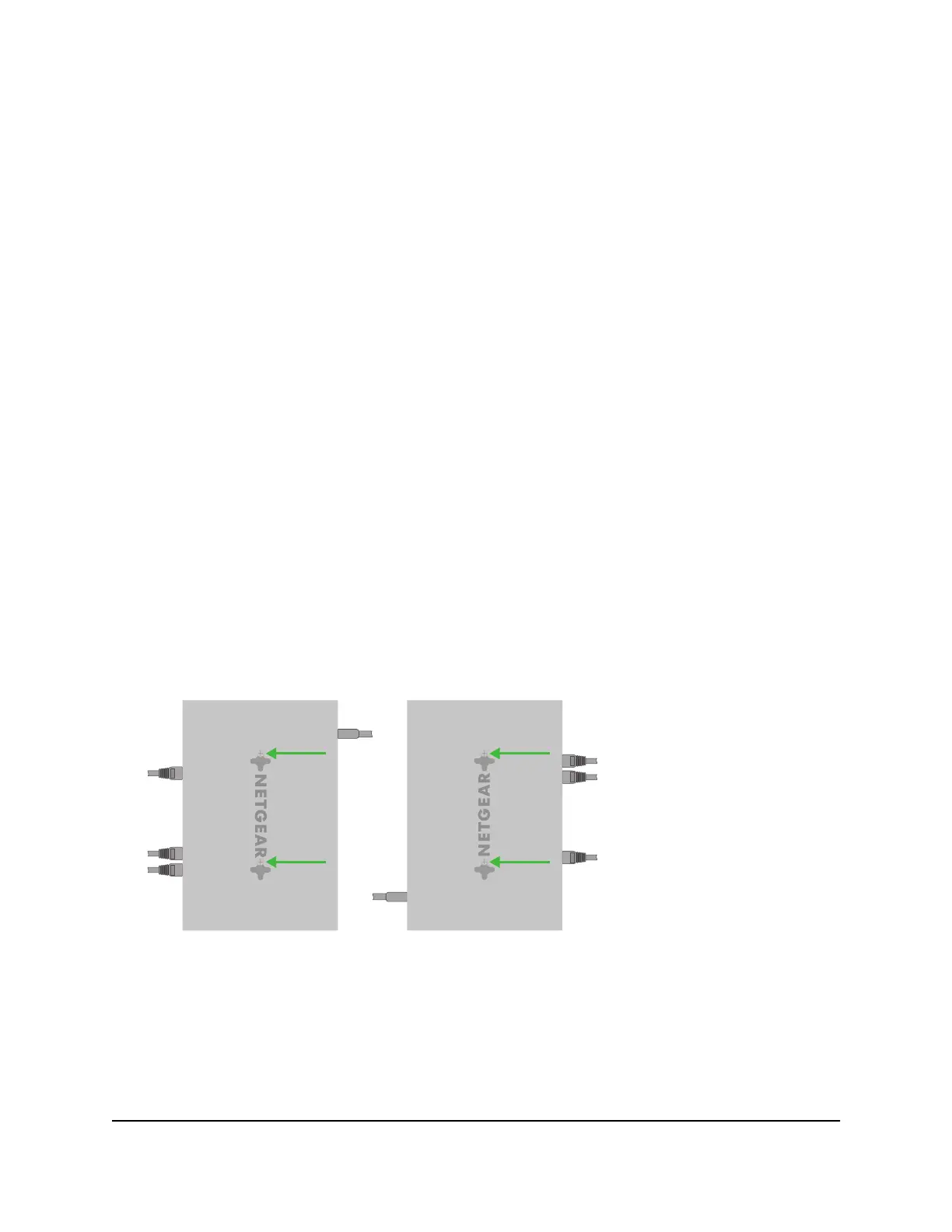

You can mount the switch with the front panel facing left (the Ethernet cables will be
on the left, see the left figure) or facing right (the Ethernet cables will be on the right,
see the right figure).
Mount the switch to a pole or another surface
You can use an off-the-shelf 100 mm VESA standard mount to secure the switch to a
pole or another surface.
Hardware Installation Guide24Installation
8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch MS108EUP

NETGEAR MS108EUP Specifications

General

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	64
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Copper ethernet cabling technology	100BASE-T, 1000BASE-T
Jumbo frames	12000
MAC address table	16000 entries
Packet buffer memory	1.5 MB
DHCP features	DHCP client
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Number of multicast groups filtered	128
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Total Power over Ethernet (PoE) budget	230 W
Power source	PoE
Mean time between failures (MTBF)	373644 h
Certification	CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI
Product color	Gray
Housing material	Metal

Weight and Dimensions

Depth	140 mm
Width	210 mm
Height	40 mm
Weight	900 g
