NETGEAR MS108EUP Hardware Installation Guide

PoE++ and high-speed desktop switching
The following figure shows a high-speed desktop switching configuration with PoE++,
PoE+, and non-PoE devices in a mixture of 2.5G and 1G connections. In this sample
configuration, port 8 functions as an uplink to a 2.5G router that is connected to the
Internet.

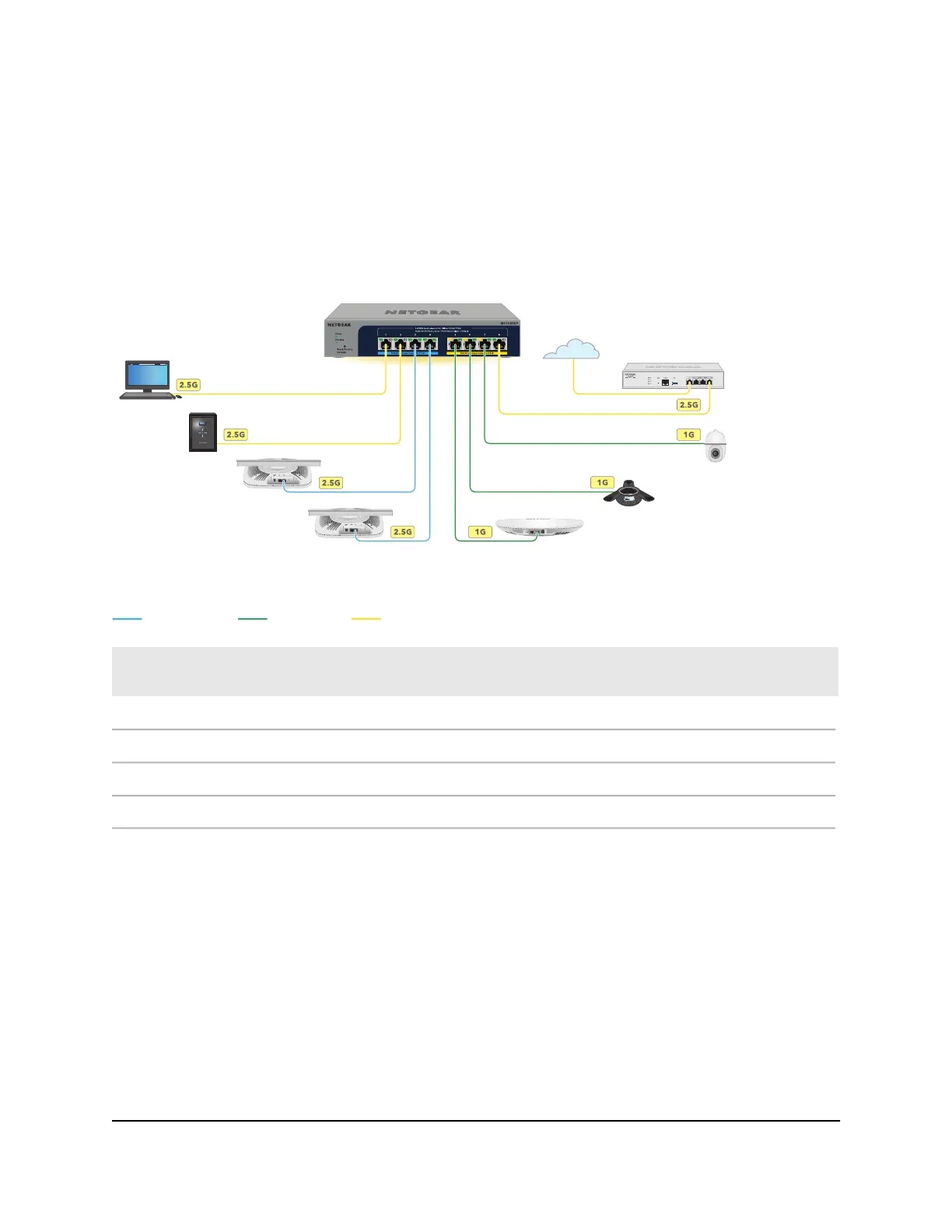

Figure 3. Sample PoE++ and high-speed desktop switching configuration
PoE++ PoE+ Non PoE
DevicePort
Number
DevicePort
Number
1G PoE+ AP (such as a WAC540)52.5G computer (non-PoE connection)1
1G PoE+ IP conference phone62.5G ReadyNAS (non-PoE connection)2
1G PoE+ PTZ camera72.5G PoE++ AP (such as a WAX630)3
2.5G router (non-PoE connection)82.5G PoE++ AP (such as a WAX630)4
Hardware Installation Guide18Applications
8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch MS108EUP

NETGEAR MS108EUP Specifications

General

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	64
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Copper ethernet cabling technology	100BASE-T, 1000BASE-T
Jumbo frames	12000
MAC address table	16000 entries
Packet buffer memory	1.5 MB
DHCP features	DHCP client
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Number of multicast groups filtered	128
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Total Power over Ethernet (PoE) budget	230 W
Power source	PoE
Mean time between failures (MTBF)	373644 h
Certification	CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI
Product color	Gray
Housing material	Metal

Weight and Dimensions

Depth	140 mm
Width	210 mm
Height	40 mm
Weight	900 g
