Reference Manual for Cable/DSL Wireless Router WGR614
C-6 Preparing Your Network
Selecting Windows’ Internet Access Method
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Internet Options icon.
3. Select “I want to set up my Internet connection manually” or “I want to connect through a
Local Area Network” and click Next.
4. Select “I want to connect through a Local Area Network” and click Next.
5. Uncheck all boxes in the LAN Internet Configuration screen and click Next.
6. Proceed to the end of the Wizard.
Verifying TCP/IP Properties
After your PC is configured and has rebooted, you can check the TCP/IP configuration using the
utility winipcfg.exe:
1. On the Windows taskbar, click the Start button, and then click Run.

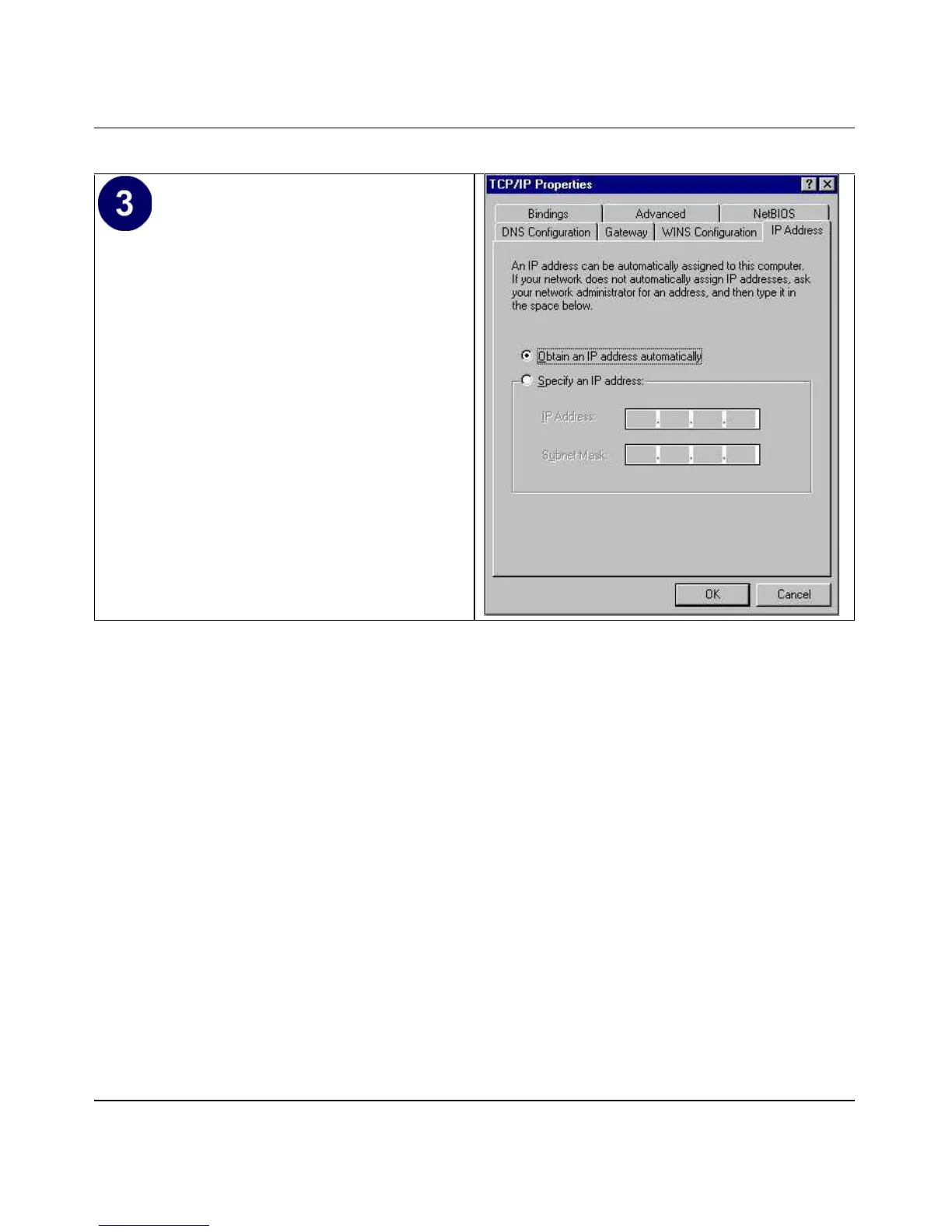

• By default, the IP Address tab is open on
this window.
• Verify the following:
Obtain an IP address automatically is
selected. If not selected, click in the radio
button to the left of it to select it. This
setting is required to enable the DHCP server
to automatically assign an IP address.
• Click OK to continue.
Restart the PC.
Repeat these steps for each PC with this
version of Windows on your network.

NETGEAR WGR614 Specifications

Power

power adapter voltage	12 VDC

Interface and Networking

internet WAN	10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports	4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)

Wireless Specifications

modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US	2.412 ~ 2.462 GHz
frequency range Japan	2.412 ~ 2.484 GHz
frequency range Europe ETSI	2.412 ~ 2.472 GHz
frequency range Spain	2.457 ~ 2.462 GHz
frequency range France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewall	Stateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	0.3 kg (0.7 lb)
antenna gain	2 dBi
