NETGEAR WGR614 User Manual

Reference Manual for Cable/DSL Wireless Router WGR614
Wireless Configuration 3-3
• Turn Off the Wired LAN. If you disable the wireless LAN, wireless devices cannot
communicate with the router at all. You might choose to turn off the wireless the LAN when
you are away and the others in the household all use wired connections.
Understanding Wireless Settings
To configure the Wireless settings of your firewall, click the Wireless link in the main menu of the
browser interface. The Wireless Settings menu will appear, as shown below.

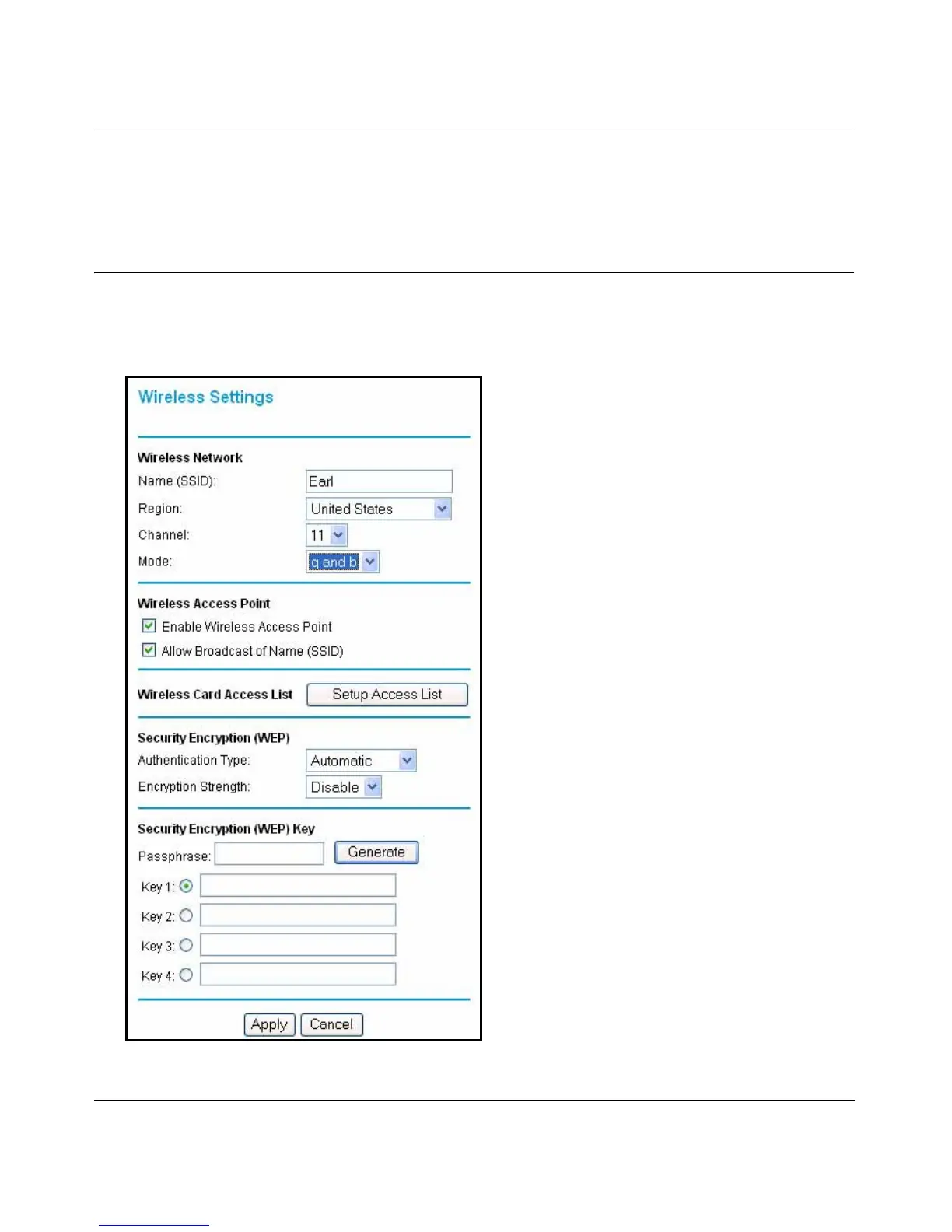

Figure 3-2: Wireless Settings menu

NETGEAR WGR614 Specifications

Power

power adapter voltage	12 VDC

Interface and Networking

internet WAN	10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports	4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)

Wireless Specifications

modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US	2.412 ~ 2.462 GHz
frequency range Japan	2.412 ~ 2.484 GHz
frequency range Europe ETSI	2.412 ~ 2.472 GHz
frequency range Spain	2.457 ~ 2.462 GHz
frequency range France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewall	Stateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	0.3 kg (0.7 lb)
antenna gain	2 dBi
