Reference Manual for Cable/DSL Wireless Router WGR614
Advanced Configuration 6-13
b. To allow access from a range of IP addresses on the Internet, select IP address range.
Enter a beginning and ending IP address to define the allowed range.
c. To allow access from a single IP address on the Internet, select Only this PC.
Enter the IP address that will be allowed access.
3. Specify the Port Number that will be used for accessing the management interface.
Web browser access normally uses the standard HTTP service port 80. For greater security,
you can change the remote management web interface to a custom port by entering that
number in the box provided. Choose a number between 1024 and 65535, but do not use the
number of any common service port. The default is 8080, which is a common alternate for
HTTP.
4. Click Apply to have your changes take effect.
Note: When accessing your router from the Internet, you will type your router's WAN IP address
into your browser's Address (in IE) or Location (in Netscape) box, followed by a colon (:) and the
custom port number. For example, if your external address is 134.177.0.123 and you use port
number 8080, you must enter http://134.177.0.123:8080 in your browser.
Using Universal Plug and Play (UPnP)
Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers,
access the network and connect to other devices as needed. UPnP devices can
automatically discover the services from other registered UPnP devices on the network.

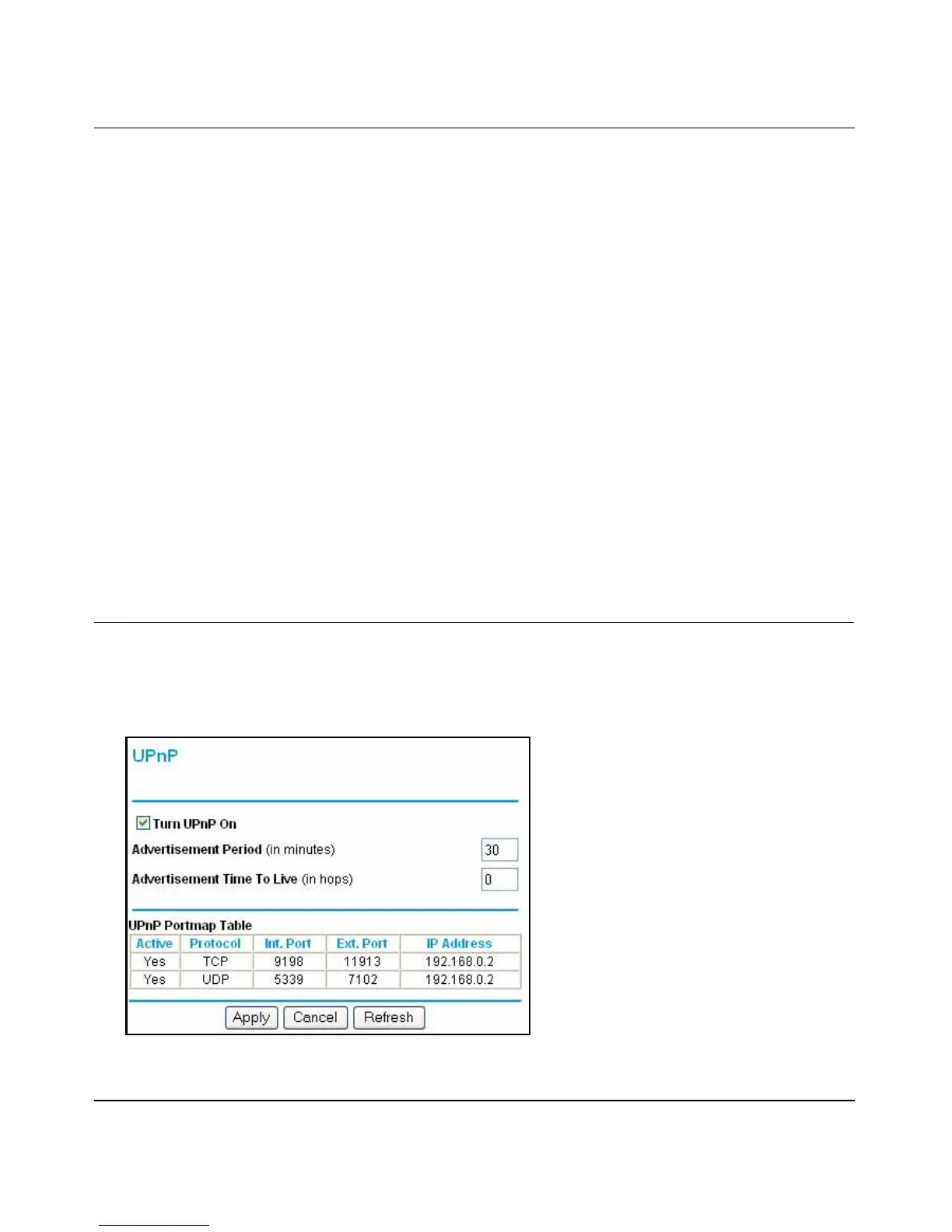

Figure 6-6. UPnP Menu

Table of Contents

Other manuals for NETGEAR WGR614

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR WGR614 and is the answer not in the manual?

NETGEAR WGR614 Specifications

Power IconPower
power adapter voltage12 VDC
Interface and Networking IconInterface and Networking
internet WAN10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)
Wireless Specifications IconWireless Specifications
modulation typeOFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US2.412 ~ 2.462 GHz
frequency range Japan2.412 ~ 2.484 GHz
frequency range Europe ETSI2.412 ~ 2.472 GHz
frequency range Spain2.457 ~ 2.462 GHz
frequency range France2.457 ~ 2.472 GHz
Security IconSecurity
encryption40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewallStateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log
Weight and Dimensions IconWeight and Dimensions
dimensions6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight0.3 kg (0.7 lb)
antenna gain2 dBi
