Reference Manual for Cable/DSL Wireless Router WGR614
Advanced Configuration 6-7
Using LAN IP Setup Options
The LAN IP Setup feature is under the Advanced heading of the main menu. This feature allows
configuration of LAN IP services such as DHCP and RIP. From the Main Menu of the browser
interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

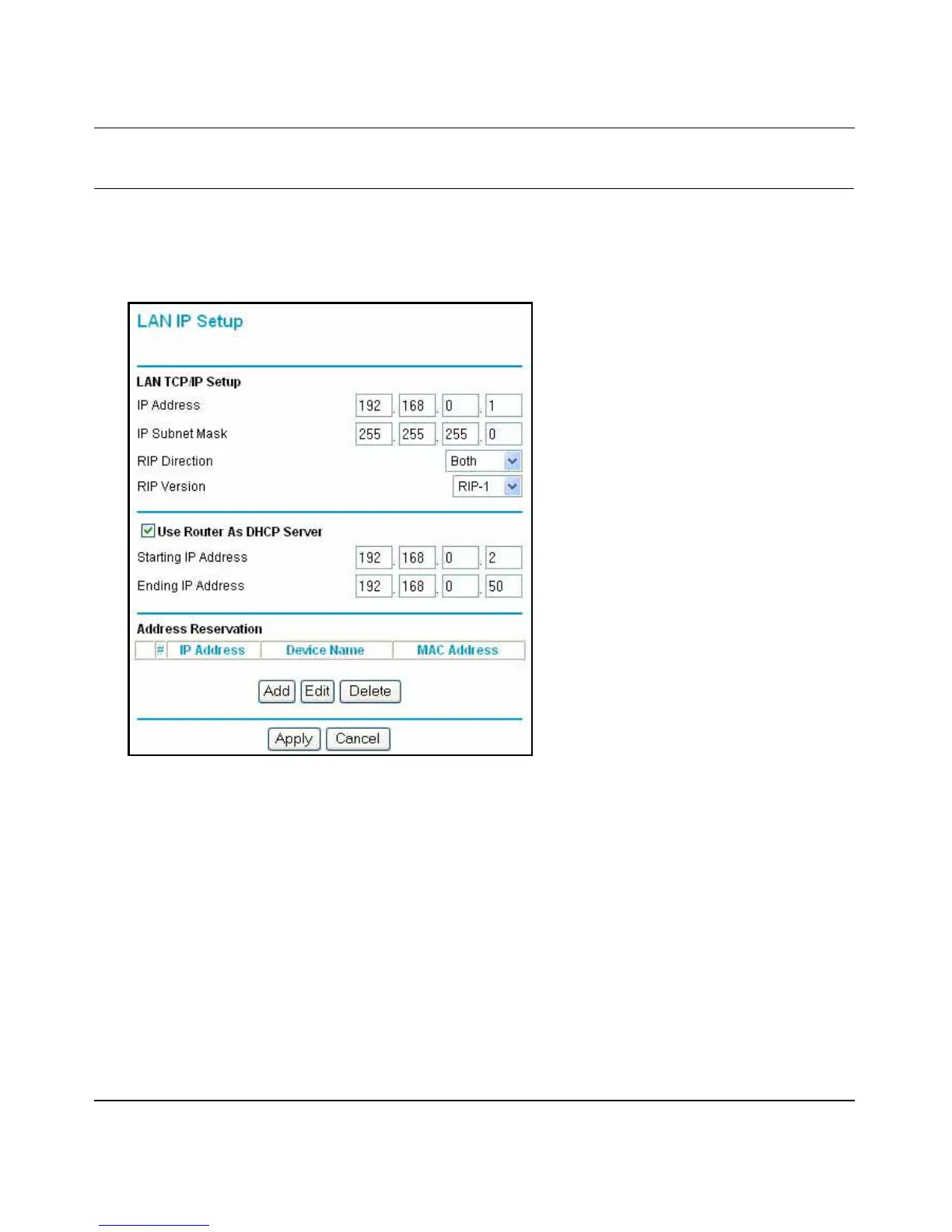

Figure 6-3: LAN IP Setup Menu
The router is shipped preconfigured to use private IP addresses on the LAN side, and to act as a
DHCP server. The router’s default LAN IP configuration is:
LAN IP addresses—192.168.0.1
Subnet mask—255.255.255.0
These addresses are part of the IETF-designated private address range for use in private networks,
and should be suitable in most applications. If your network has a requirement to use a different IP
addressing scheme, you can make those changes in this menu.
The LAN IP parameters are:

Table of Contents

Other manuals for NETGEAR WGR614

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR WGR614 and is the answer not in the manual?

NETGEAR WGR614 Specifications

Power IconPower
power adapter voltage12 VDC
Interface and Networking IconInterface and Networking
internet WAN10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)
Wireless Specifications IconWireless Specifications
modulation typeOFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US2.412 ~ 2.462 GHz
frequency range Japan2.412 ~ 2.484 GHz
frequency range Europe ETSI2.412 ~ 2.472 GHz
frequency range Spain2.457 ~ 2.462 GHz
frequency range France2.457 ~ 2.472 GHz
Security IconSecurity
encryption40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewallStateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log
Weight and Dimensions IconWeight and Dimensions
dimensions6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight0.3 kg (0.7 lb)
antenna gain2 dBi
