Reference Manual for Cable/DSL Wireless Router WGR614
2-10 Connecting the Router to the Internet
Note: You will no longer need to launch the ISP’s login program on your PC in order to access
the Internet. When you start an Internet application, your router will automatically log you in.
The Domain Name Server (DNS) Address parameters may be necessary to access your ISP’s
services such as mail or news servers.
Note: If you enter DNS addresses, restart your computers so that these settings take effect.
Router MAC Address. This section determines the Ethernet MAC address that will be used by
the router on the Internet port. Some ISPs will register the Ethernet MAC address of the
network interface card in your PC when your account is first opened. They will then only
accept traffic from the MAC address of that PC. This feature allows your router to masquerade
as that PC.
To change the MAC address, select “Use this Computers MAC address.” The router will then
capture and use the MAC address of the PC that you are now using. You must be using the one
PC that is allowed by the ISP. Or, select “Use this MAC address” and enter it.
Click Apply to save your settings.
Click Test to test your Internet connection. If the NETGEAR website does not appear within
one minute, refer to
Chapter 7, “Troubleshooting.
Dynamic IP Smart Wizard-Detected Option
If the Setup Wizard discovers that your ISP uses Dynamic IP assignment, you will see this menu:

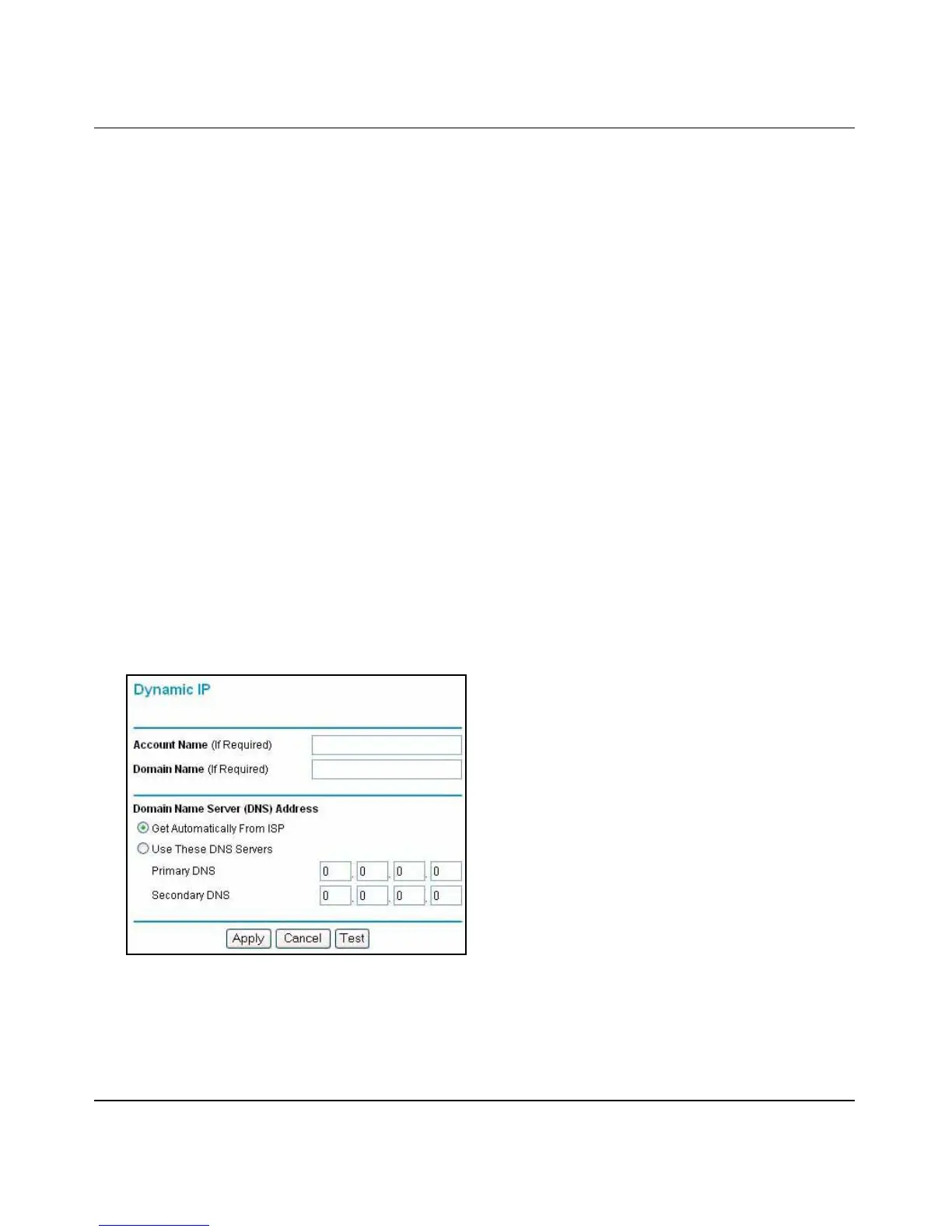

Figure 2-9: Setup Smart Wizard menu for Dynamic IP address accounts

Table of Contents

Other manuals for NETGEAR WGR614

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR WGR614 and is the answer not in the manual?

NETGEAR WGR614 Specifications

Power IconPower
power adapter voltage12 VDC
Interface and Networking IconInterface and Networking
internet WAN10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)
Wireless Specifications IconWireless Specifications
modulation typeOFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US2.412 ~ 2.462 GHz
frequency range Japan2.412 ~ 2.484 GHz
frequency range Europe ETSI2.412 ~ 2.472 GHz
frequency range Spain2.457 ~ 2.462 GHz
frequency range France2.457 ~ 2.472 GHz
Security IconSecurity
encryption40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewallStateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log
Weight and Dimensions IconWeight and Dimensions
dimensions6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight0.3 kg (0.7 lb)
antenna gain2 dBi
