Reference Manual for Cable/DSL Wireless Router WGR614
Introduction 1-7
The Router’s Rear Panel
The rear panel of the Model RP614 router contains the port connections listed below.

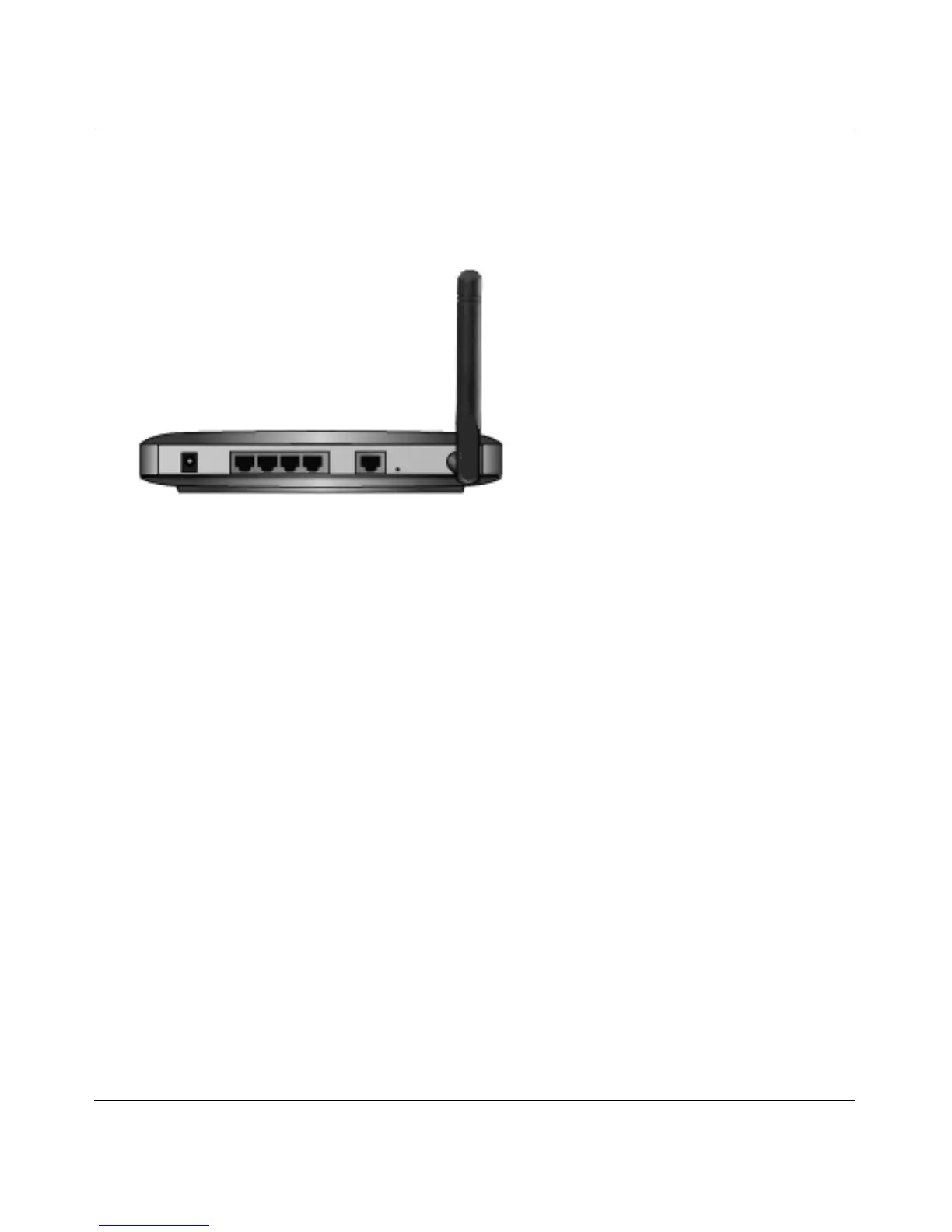

Figure 1-2: WGR614 Rear Panel
Viewed from left to right, the rear panel contains the following features:
• AC power adapter outlet
• Four Local (LAN) 10/100 Mbps Ethernet ports for connecting the router to the local PCs
• Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem
• Factory Default Reset push button
• Wireless antenna
