Reference Manual for Cable/DSL Wireless Router WGR614
3-8 Wireless Configuration
How to Set Up and Test Basic Wireless Connectivity
Follow the instructions below to set up and test basic wireless connectivity. Once you have
established basic wireless connectivity, you can enable security settings appropriate to your needs.
1. Log in to the WGR614 firewall at its default LAN address of http://192.168.0.1 with its
default user name of admin and default password of password, or using whatever LAN
address and password you have set up.
2. Click the Wireless Settings link in the main menu of the WGR614 firewall.

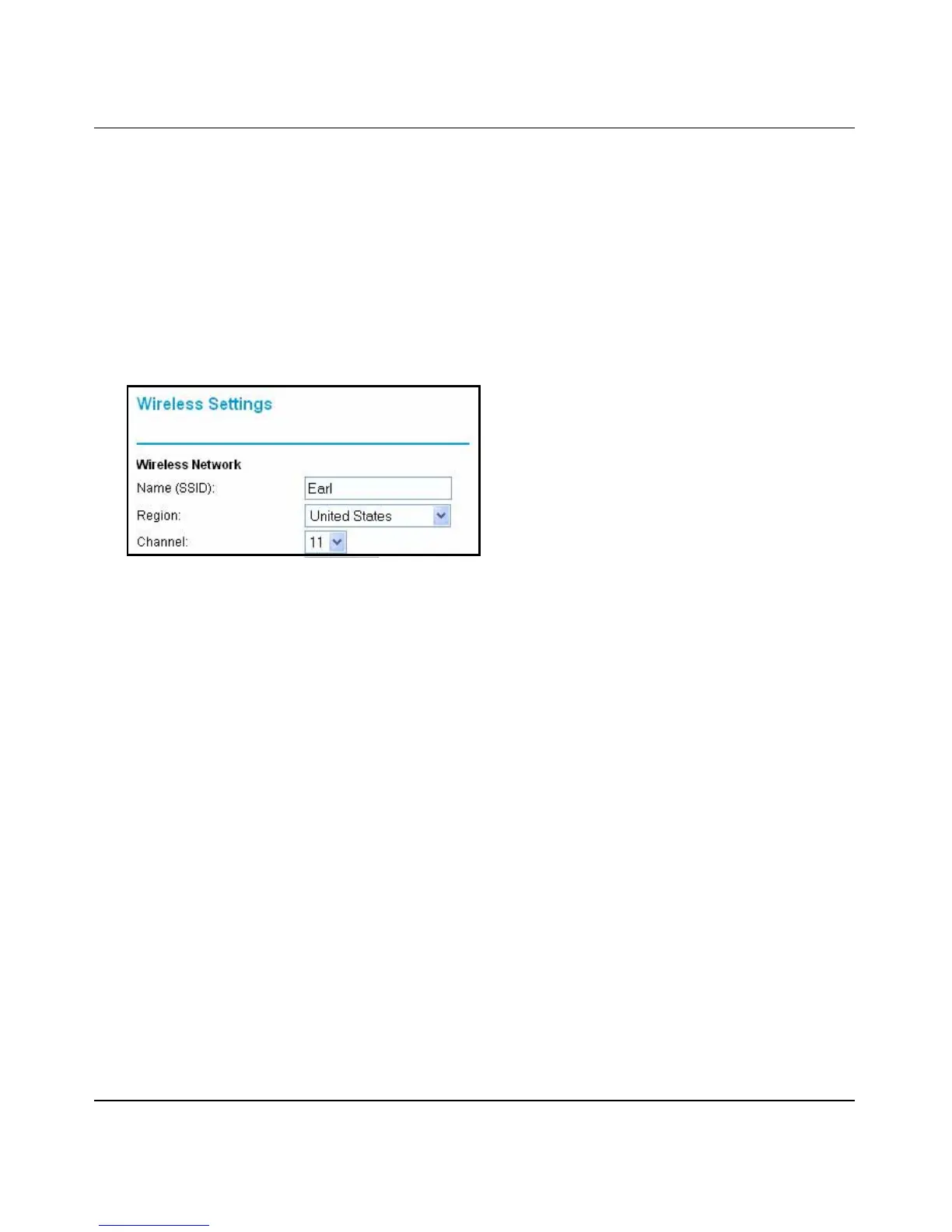

Figure 3-4: Wireless Settings menu
3. Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box,
enter a value of up to 32 alphanumeric characters. The default SSID is NETGEAR.
Note: The SSID of any wireless access adapters must match the SSID you configure in the
Model WGR614 Cable/DSL Wireless Router. If they do not match, you will not get a wireless
connection to the WGR614.
4. Set the Region. Select the region in which the wireless interface will operate.
5. Set the Channel. The default channel is 11.
This field determines which operating frequency will be used. It should not be necessary to
change the wireless channel unless you notice interference problems with another nearby
wireless router or access point. Select a channel that is not being used by any other wireless
networks within several hundred feet of your firewall. For more information on the wireless
channel frequencies please refer to
“Wireless Channels” on page D-7.
6. For initial configuration and test, leave the Wireless Card Access List set to “Everyone” and
the Encryption Strength set to “Disabled.”
7. Click Apply to save your changes.

NETGEAR WGR614 Specifications

Power

power adapter voltage	12 VDC

Interface and Networking

internet WAN	10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports	4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)

Wireless Specifications

modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US	2.412 ~ 2.462 GHz
frequency range Japan	2.412 ~ 2.484 GHz
frequency range Europe ETSI	2.412 ~ 2.472 GHz
frequency range Spain	2.457 ~ 2.462 GHz
frequency range France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewall	Stateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	0.3 kg (0.7 lb)
antenna gain	2 dBi
