Reference Manual for Cable/DSL Wireless Router WGR614
3-10 Wireless Configuration
3. From the Wireless Settings menu, click the Setup Access List button to display the Wireless
Access menu shown below.

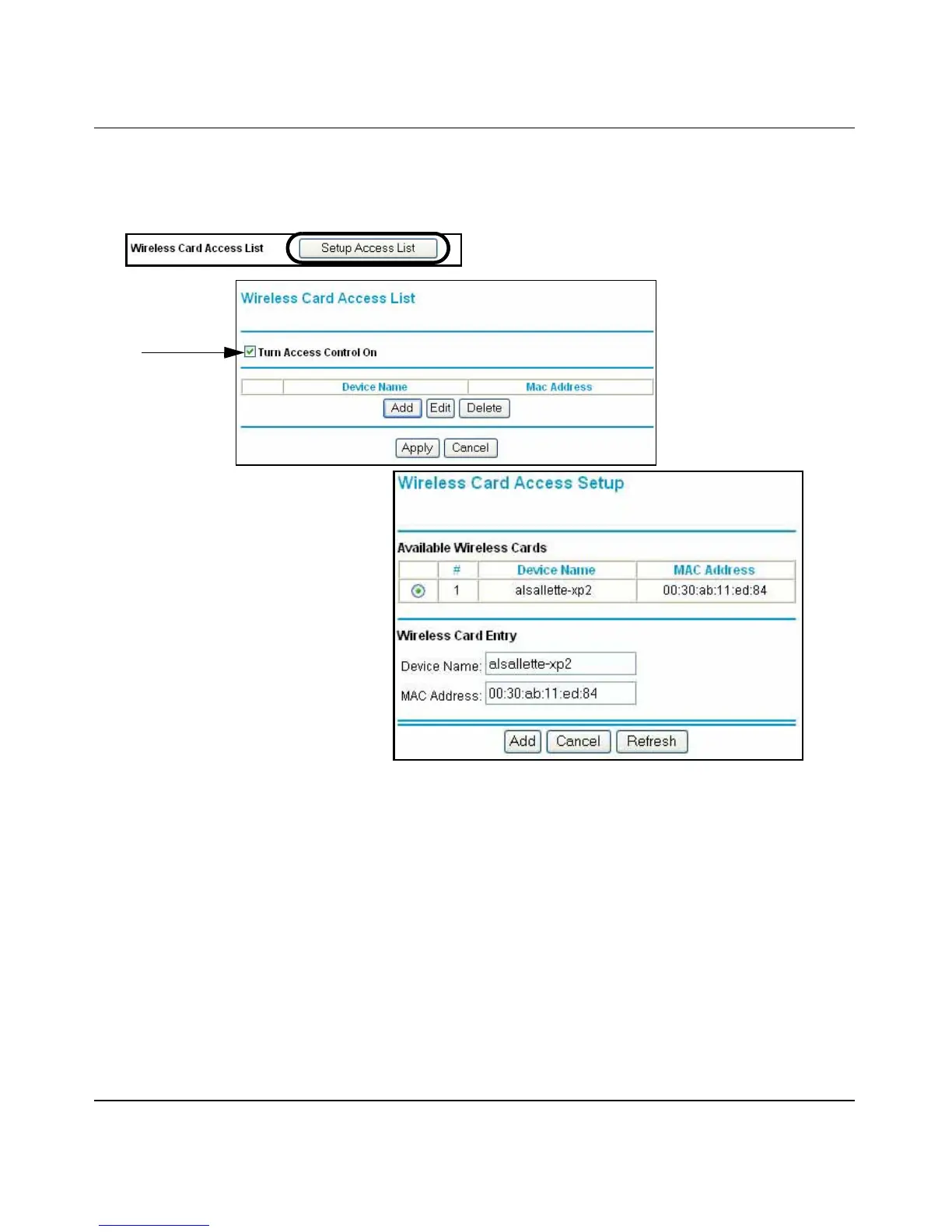

Figure 3-5: Wireless Card Access List Setup
4. Click Add to add a wireless device to the wireless access control list. The Available Wireless
Cards list displays.
5. Click the Turn Access Control On check box.
6. Then, either select from the list of available wireless cards the WGR614 has found in your
area, or enter the MAC address and device name for a device you plan to use. You can usually
find the MAC address printed on the wireless adapter.
Note: You can copy and paste the MAC addresses from the firewall’s Attached Devices menu
into the MAC Address box of this menu. To do this, configure each wireless PC to obtain a
wireless link to the firewall. The PC should then appear in the Attached Devices menu.

NETGEAR WGR614 Specifications

Power

power adapter voltage	12 VDC

Interface and Networking

internet WAN	10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports	4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)

Wireless Specifications

modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US	2.412 ~ 2.462 GHz
frequency range Japan	2.412 ~ 2.484 GHz
frequency range Europe ETSI	2.412 ~ 2.472 GHz
frequency range Spain	2.457 ~ 2.462 GHz
frequency range France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewall	Stateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	0.3 kg (0.7 lb)
antenna gain	2 dBi
