Reference Manual for Cable/DSL Wireless Router WGR614
Advanced Configuration 6-11
1. Click the Add button to open the Add/Edit Menu, shown below.

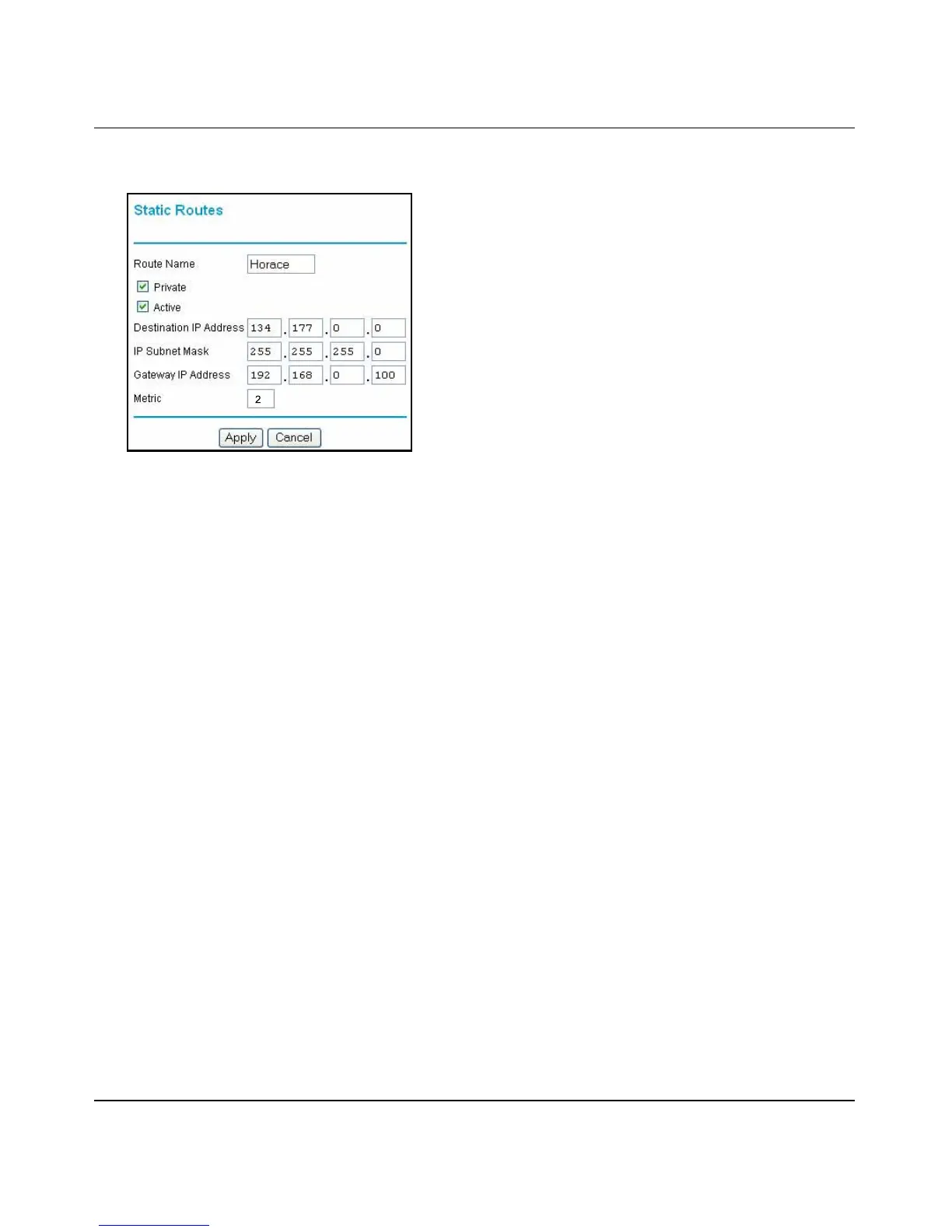

Figure 6-5. Static Route Entry and Edit Menu
2. Type a route name for this static route in the Route Name box under the table.
(This is for identification purpose only.)
3. Select Private if you want to limit access to the LAN only. The static route will not be reported
in RIP.
4. Select Active to make this route effective.
5. Type the Destination IP Address of the final destination.
6. Type the IP Subnet Mask for this destination.
If the destination is a single host, type 255.255.255.255.
7. Type the Gateway IP Address, which must be a router on the same LAN segment as the router.
8. Type a number between 1 and 15 as the Metric value.
This represents the number of routers between your network and the destination. Usually, a
setting of 2 or 3 works, but if this is a direct connection, set it to 1.
9. Click Apply to have the static route entered into the table.
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where
you are employed. This router’s address on your LAN is 192.168.0.100.
• Your company’s network is 134.177.0.0.

NETGEAR WGR614 Specifications

Power

power adapter voltage	12 VDC

Interface and Networking

internet WAN	10/100 Mbps (auto-sensing) Ethernet, RJ-45
LAN ports	4 ports 10/100 Mbps (auto-sensing) Ethernet, RJ-45
wireless network speeds	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, & 54 Mbps (auto-rate capable)

Wireless Specifications

modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
frequency range US	2.412 ~ 2.462 GHz
frequency range Japan	2.412 ~ 2.484 GHz
frequency range Europe ETSI	2.412 ~ 2.472 GHz
frequency range Spain	2.457 ~ 2.462 GHz
frequency range France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit), 128-bit, and 152-bit (802.11g only) WEP encryption, WPA (Wi-Fi Protected Access)
firewall	Stateful Packet Inspection (SPI), DoS Attack Detection/Logging, Dropped Packet Log, Security Event Log, E-mail Log

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	0.3 kg (0.7 lb)
antenna gain	2 dBi
