NETGEAR WGX102 User Manual

Reference Manual for the 54 Mbps Wall-Plugged Wireless Range Extender WGX102
Installing the XE102 and the WGX102 3-11
September 2004 202-10042-01

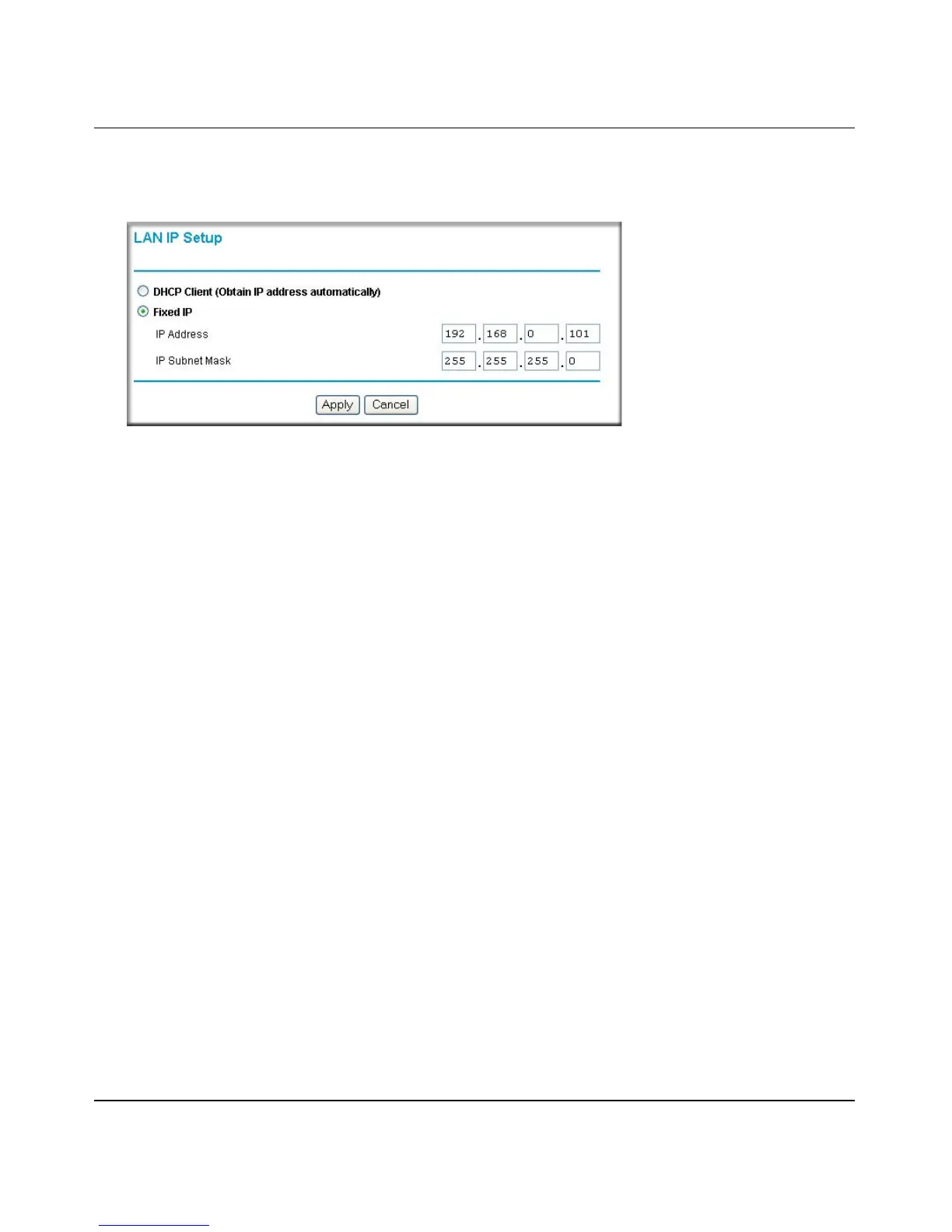

From the main menu of the browser interface, under Advanced, click LAN IP Setup to view the
LAN IP Setup menu, shown below.
Figure 3-10: LAN IP Setup menu in Access Point Mode
DHCP
If selected, the WGX102 will obtain its IP address automatically from a DHCP (Dynamic Host
Configuration Protocol) server. Select this option only if your LAN has a DHCP server.
Fixed IP
Select this option if your LAN does not have a DHCP server or if you want the Access Point to use
a fixed IP address. The WGX102 default LAN IP configuration is:
• IP addresses—192.168.0.101. The LAN IP address must be an unused IP address from the IP
address range used on your LAN If your LAN has a DHCP server, this IP address should be
outside the range of addresses allocated by the DHCP server.
• IP Subnet mask—255.255.255.0. Combined with the IP address, the IP Subnet Mask allows a
device to know which other addresses are local to it, and which must be reached through a
gateway or router. The Subnet Mask specifies the network number portion of the IP address. It
must match the settings of the other PCs and devices on your LAN.

NETGEAR WGX102 Specifications

Weight and Dimensions

dimensions	3 x 8.6 x 6.5 in, 75 x 220 x166 mm
weight	2.0 lb
