Hardware Setup
10
N750 WiFi Router
Pressing the WPS button lets you use WPS to join the WiFi network without typing the
WiFi password. See WiFi Connection on page 15.
Pressing the WiFi On/Off button for two seconds turns the WiFi radios on and off.

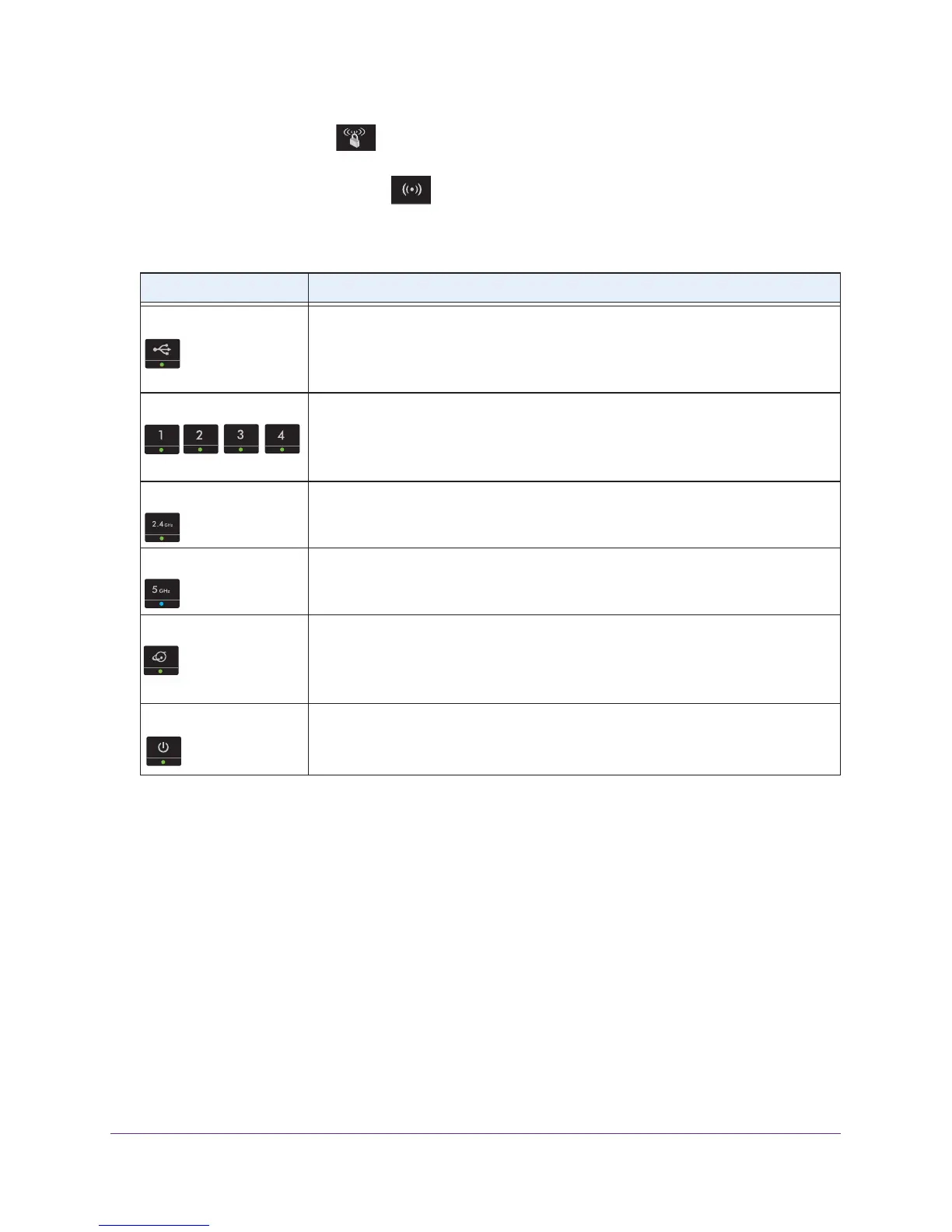

The following table describes the LEDs on the front panel.
Table 1. LED descriptions
LEDs Description
USB port
• Solid green. A USB device is connected and is ready.
• Blinking.
A USB device is plugged in and is trying to connect.
• Off. No USB device is connected, or someone clicked the Safely Remove
Hardware button and it is now safe to remove the attached USB device.
Ethernet LAN ports
• Solid green. A powered-on 1G device is connected to the Ethernet port.
• Solid amber. A
powered-on 10/100 Mbps device is connected to the Ethernet
port..
• Off. No device is connected to this Ethernet port.
2.4 GHz WiFi
• Solid green. The 2.4 GHz WiFi radio is operating.
• Off.
The 2.4 GHz WiFi radio is off.
5 GHz WiFi
• Solid blue. The 5 GHz WiFi radio is operating.
• Off. The
5 GHz WiFi radio is off.
Internet
• Solid green. The Internet connection is ready.
• Amber.
The Ethernet cable is connected between the router and the modem but
the router is not connected to the Internet.
• Off. No Ethernet cable is connected between the router and the modem.
Power
• Solid green. The router is ready.
• Blinking green. The
router is booting.
• Off. Power is not supplied to the router.
