Netis WF-2404 User Manual

300Mbps Wireless-N Broadband Router User Manual
34

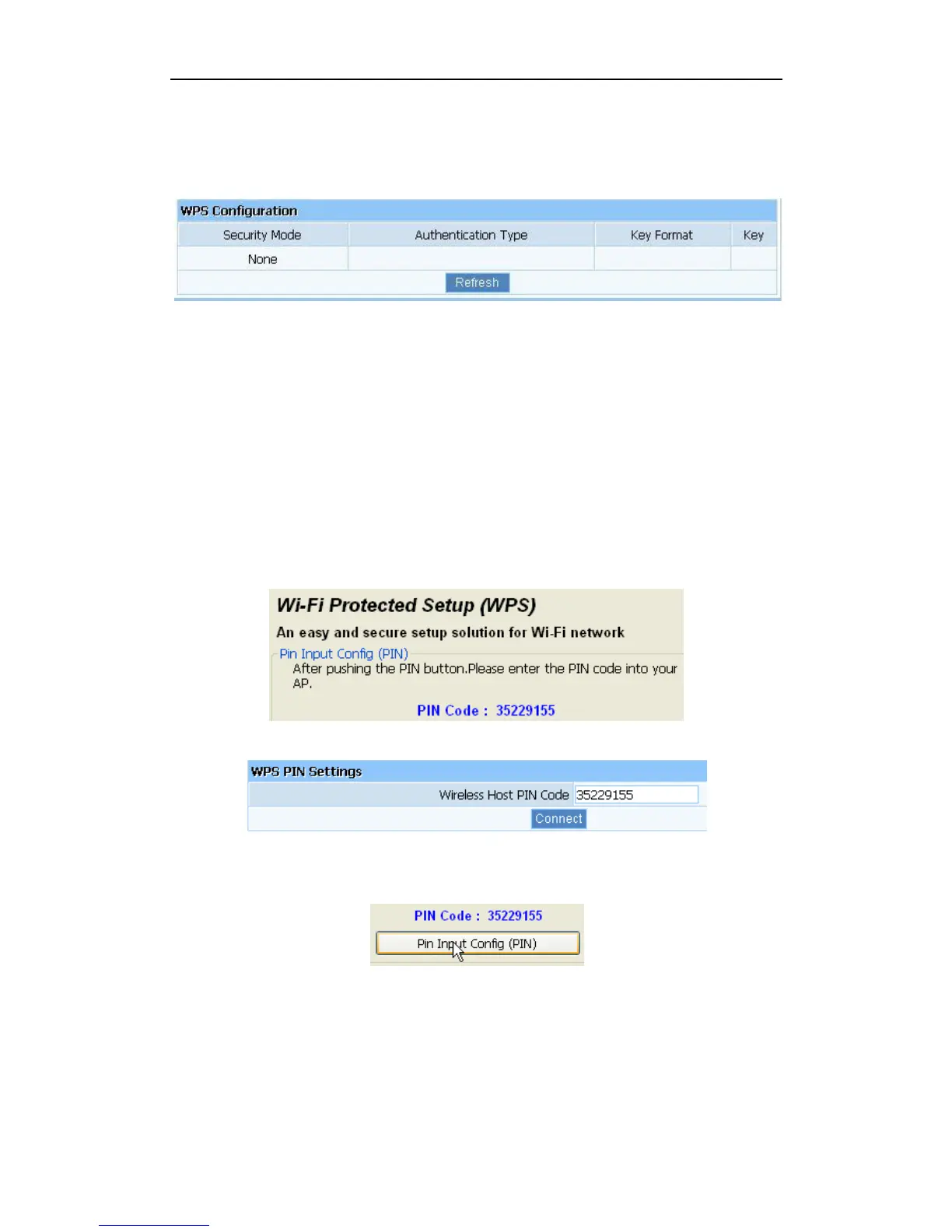

4.3.3. WPS Configuration
Display the encryption information.
Figure 4-14
WPS can connect the wireless adapter and the router in a safe way. If you have a wireless
network card which has WPS button, you may set up a safe network via the following methods
Method 1:
1. Push the WPS button in the Router until the WPS LED is flashing several times
2. Push the WPS button in the wireless network card for about 3-5seconds
3. The safe connection will be established automatically
Method 2:
1. Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then
click ’connect’
Figure 4-15
Figure 4-16
2. Push the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter
Figure 4-17
3. Select this router in the pop-up window, then click ‘Select’
4. The connection between the adapter and the router is be established automatically.
Method 3:
1. Select ‘Input PIN from AP’ in WI-FI protect setup page, input PIN of the router, then click

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
