Netis WF-2404 User Manual

300Mbps Wireless-N Broadband Router User Manual
46
 Select ‘LAN setup’-‘DHCP server’ ,select disable DHCP server.
Figure 4-35
AP3:

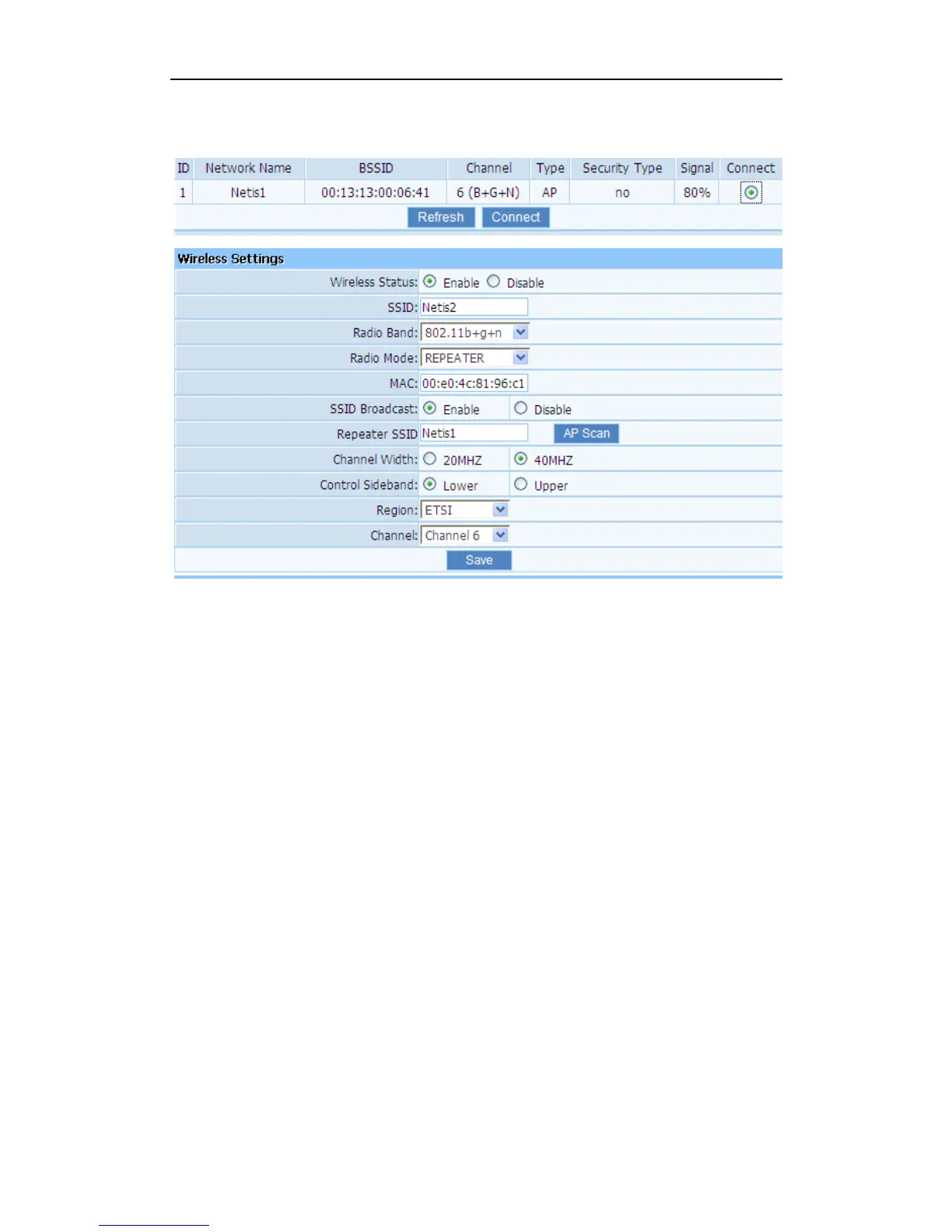

 Select radio mode is ‘REPEATER’in wireless management-basic of AP3.
 Click ‘AP Scan’ in wireless management-basic of AP3 ,and select ‘Netis1’ and Connect ,
then the ‘Repeater SSID’ and ‘Channel’ become same as AP2.
 The IP address of AP3 should be 192.168.1.x (1<x<255),but different from AP2.
 Select ‘LAN setup’-‘DHCP server’ ,select disable DHCP server.
4.5.6. Wireless Advanced
These settings are only for more technically advanced users who have a sufficient knowledge
about wireless LAN. These settings should not be changed unless you know what effect the
change will have on your AP.

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
