Netis WF-2404 User Manual

300Mbps Wireless-N Broadband Router User Manual
51
4.7.2. Port Triggering
Port trigger module dynamically registers virtual server rules when any IP host generates the
packet from the specified trigger protocol and port. Port trigger module use forward protocol
type and port number and use the IP address of host that generates the trigger packet when it
registers a rule.

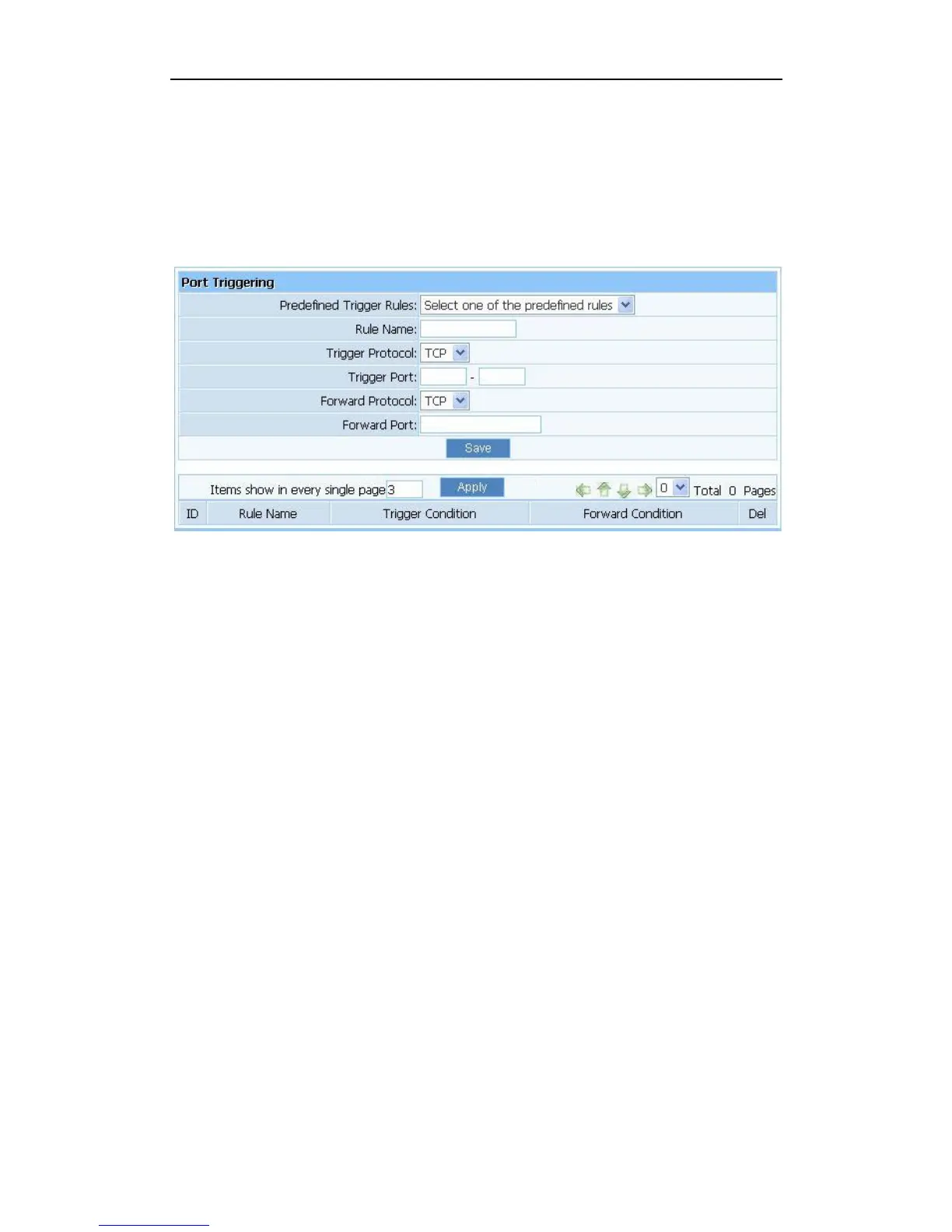

Figure 4-43
 Predefined Trigger Rules: select one of the Predefined Rules.
 Rule Name: describe one Predefined Trigger that you will configure.
 Trigger Protocol: you can select TCP/UDP.
 Trigger Port: you can select a part of ports.
 Forward Protocol: you can select TCP/UDP.
 Forward Port: you can select a part of ports.
4.7.3. DMZ
DMZ opens all the ports of one computer, exposing the computer to the Internet. So it should
only be used for some special-purpose, especial for Internet online games. Using this function
you can select “DMZ” item and input IP address of DMZ host, then click “Save”. For the
purpose of security, we suggested that using “Virtual servicer” instead of “DMZ”.

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
