Netis WF-2404 User Manual

300Mbps Wireless-N Broadband Router User Manual
50

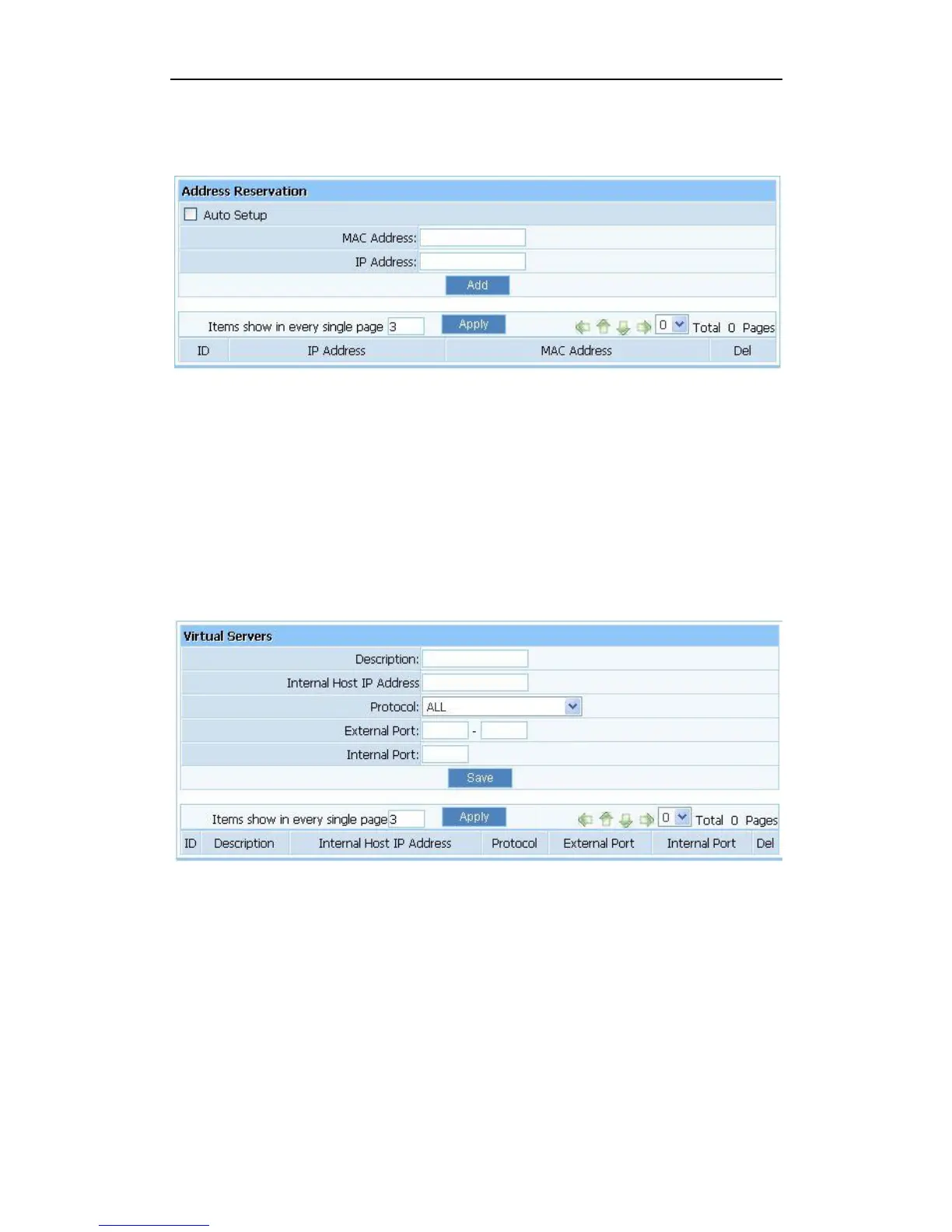

4.6.3. Address Reservation
Figure 4-41
 Address Reservation: reserve IP address for designed physical address host. If you want
to configure a fixed IP address for some host, please input physical address and IP
address, then click add.
4.7. Forwarding
4.7.1. Virtual Servers
Figure 4-42
 Description: Describe current virtual server item.
 Internal Host IP Address: The “Internal Host IP Address” indicates IP address of the
internal host using virtual server.
 Protocol: The protocol item supplies several protocols. For example, if you have web
server within LAN, you can select the HTTP template then the router will input port
number 80 automatically.
 External Port: Input an extranet port number (the users in Internet can see these ports).
 Internal Port: Input an intranet port number.

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
