Netis WF-2404 User Manual

300Mbps Wireless-N Broadband Router User Manual
60

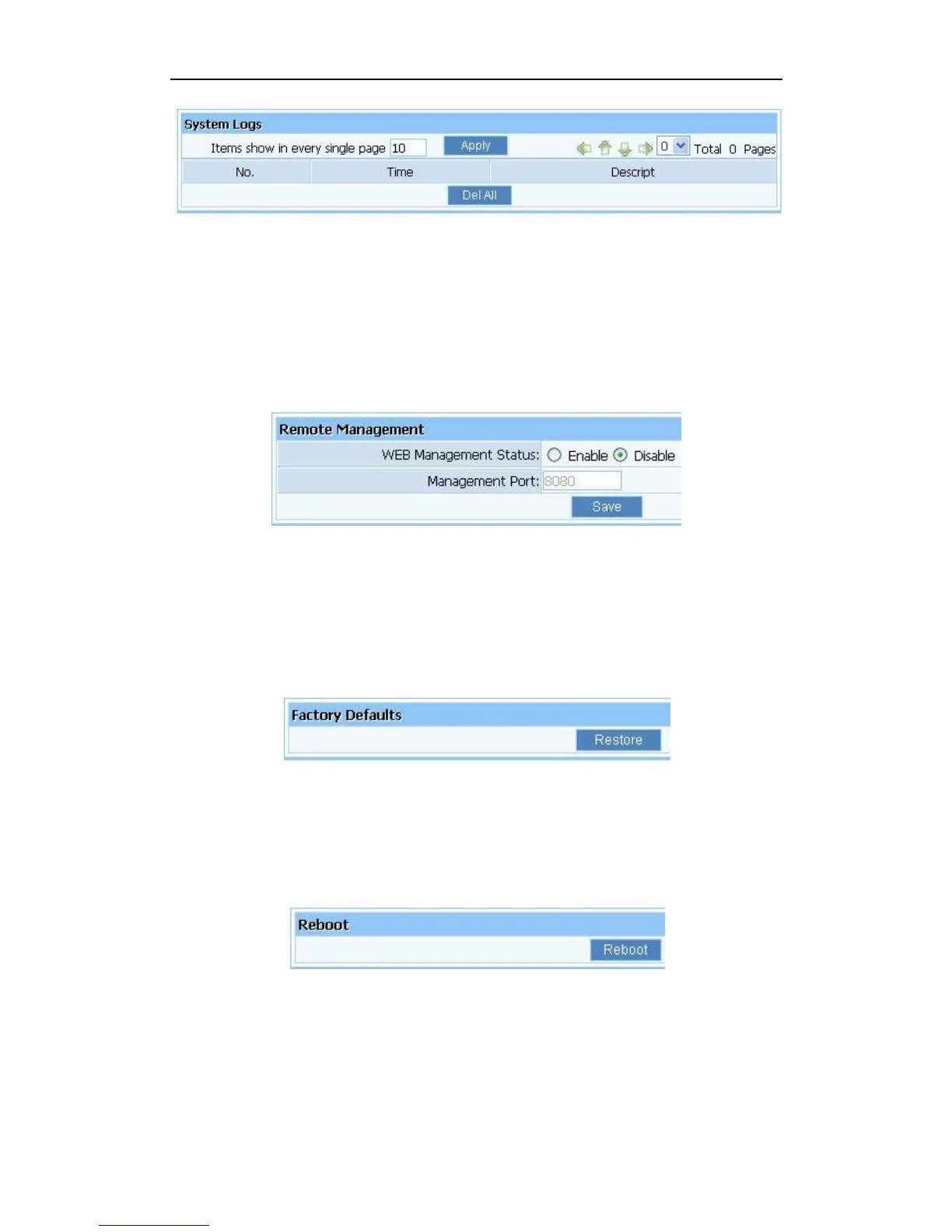

Figure 4-58
4.12.6. Remote Management
WEB Management Status: the default is disable. Router can be accessed on the remote site
using “Web setup”. Check the “Management Port” and enter the port number and then press
“save” button to enable web management.
Figure 4-59
4.12.7. Factory Defaults
Click "Restore" button, the Router will erase all of your settings and replace them with the
factory defaults, make sure you have backup current settings before click this button.
Figure 4-60
4.12.8. Reboot
Click “Reboot” button to restart the router.
Figure 4-61

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
