Netis WF-2404 User Manual

300Mbps Wireless-N Broadband Router User Manual
61

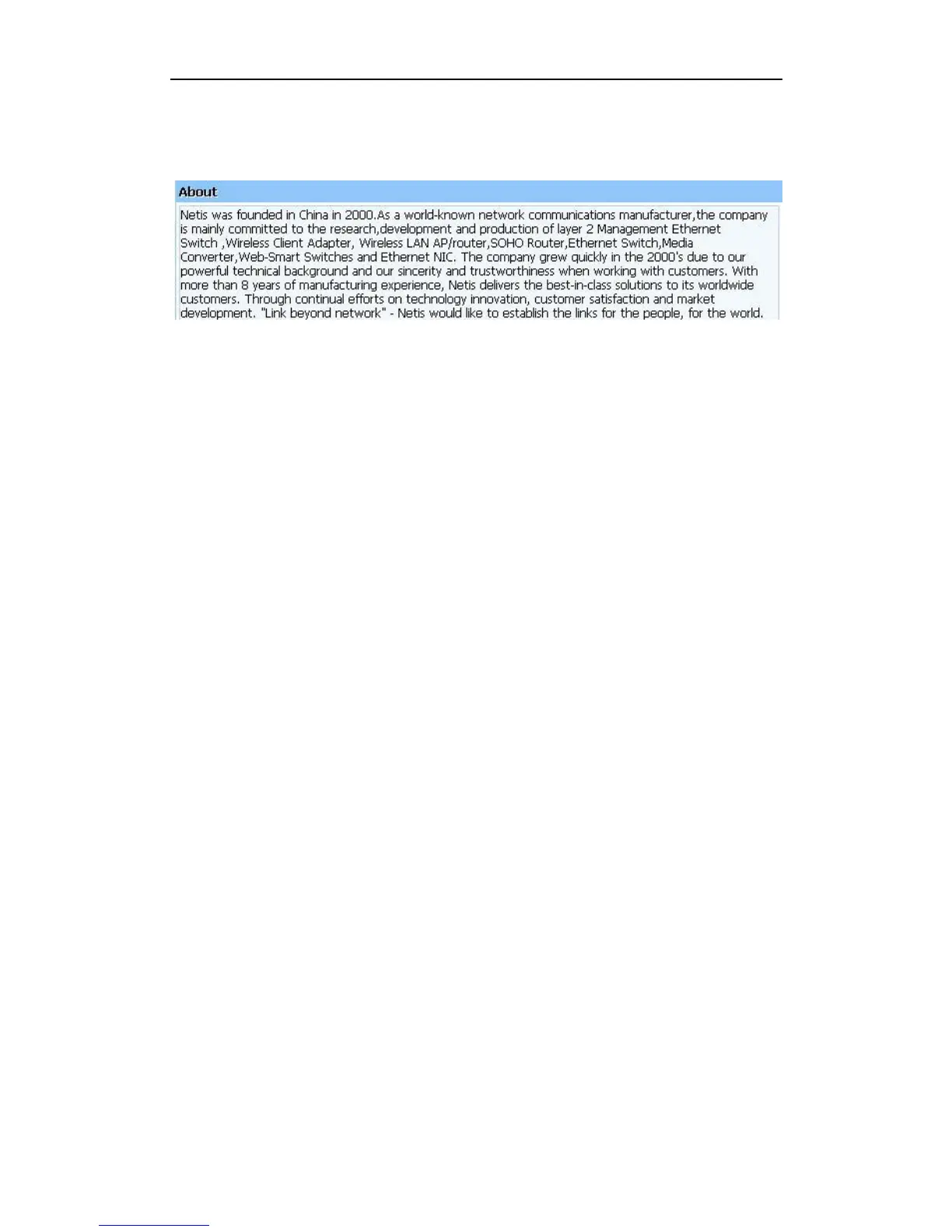

4.13. About
Figure 4-62
Thank you for your support.
5. Troubleshooting
1) I cannot access the Web-based Configuration Utility from the Ethernet computer
used to configure the router.
 Check that the LAN LED is on. If the LED is not on, verify that the cable for the LAN
connection is firmly connected.
 Check whether the computer resides on the same subnet with the router’s LAN IP address.
 If the computer acts as a DHCP client, check whether the computer has been assigned an
IP address from the DHCP server. If not, you will need to renew the IP address.
 Use the ping command to ping the router’s LAN IP address to verify the connection.
 Make sure your browser is not configured to use a proxy server.
 Check that the IP address you entered is correct. If the router’s LAN IP address has been
changed, you should enter the reassigned IP address instead.
2) I forget Password (Reset the Router without Login)
 Use a pencil to press the button for about 2-6 seconds when it is working, then leave your
hands, it will restore settings to the factory configuration. The default password is guest.
3) I have some problems related to Connection with Cable Modem
Please follow the following steps to check the problems:
 Check whether the DSL modem works well or the signal is stable. Normally there will be
some indicator lights on the modem, users can check whether the signal is ok or the
modem works well from those lights. If not, please contact the ISP.
 Check the front panel of the Router, there are also some indicator lights there. When the
physical connection is correct, the Power light and the CPU light should be solid; the
WAN light should be blinking. If you use your computer, the corresponding LAN port

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
