300Mbps Wireless-N Broadband Router User Manual
42

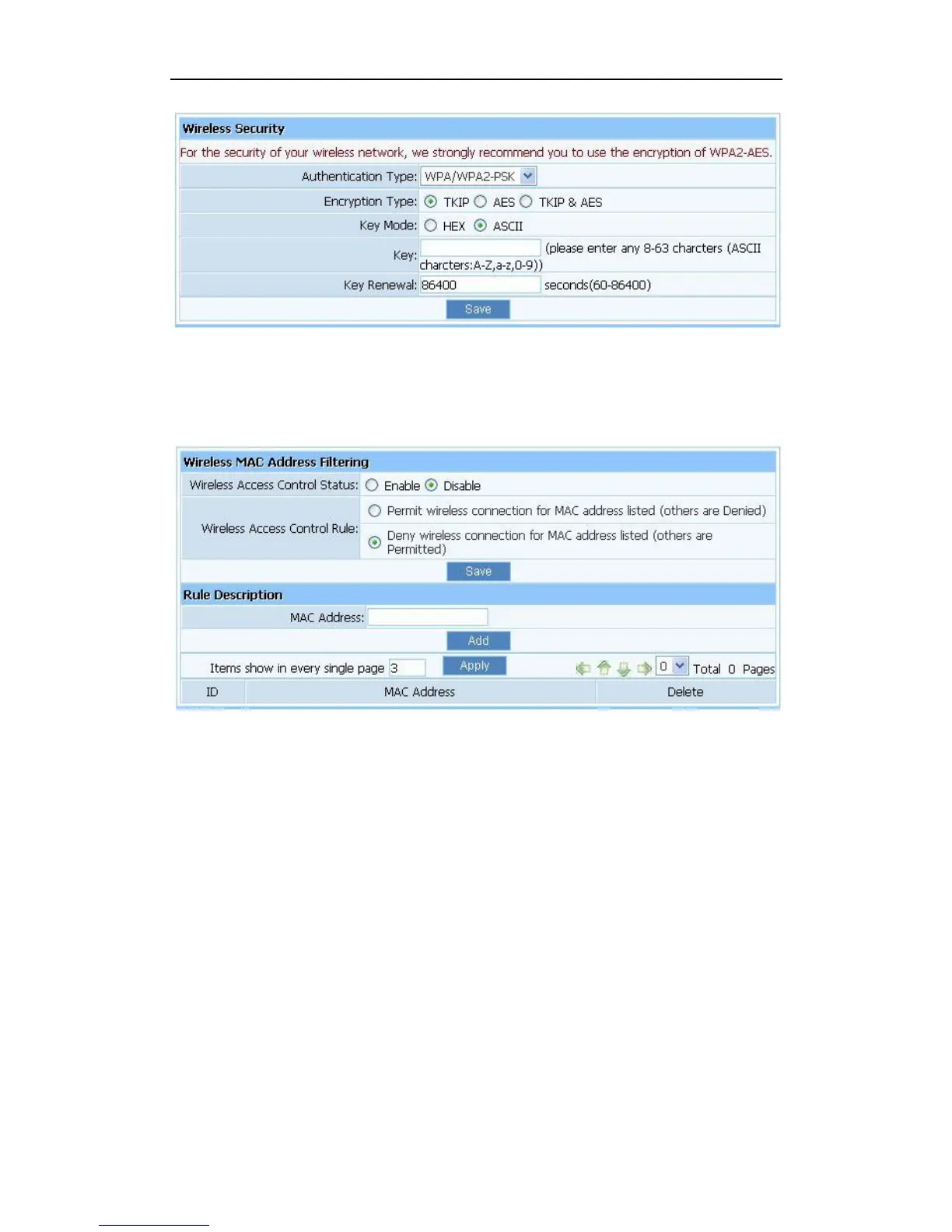

Figure 4-29
4.5.3. Wireless MAC Filtering
Figure 4-30
 MAC Filter Status: the default is disable. You can filter wired users by enabling this
function; thus unauthorized users can not access the network.
 Description: describe MAC Filter list to tell from different MAC Filter lists.
 Rule: you can select permit or deny. The default is permit.
 MAC address: input the MAC address that you want to control. The default format is
**-**-**-**-**-**（e.g.: 00-22-33-da-cc-bb）.
Follow the following steps to set MAC filter:
1. Enable MAC Filter, then select save.
2. Add MAC address you want to control in the “MAC address” field (the format is
**-**-**-**-**-**), then click “Add” button, and you will see the MAC address has displayed
in the MAC list.
3. There are two items supplied, “Permit wireless connection for MAC address listed (others
are Denied)” and “Deny wireless connection for MAC address listed (others are Permitted)”,

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
