300Mbps Wireless-N Broadband Router User Manual
53
tunnel, the router supports IPSEC pass-through, PPTP pass-through and L2TP pass-through.

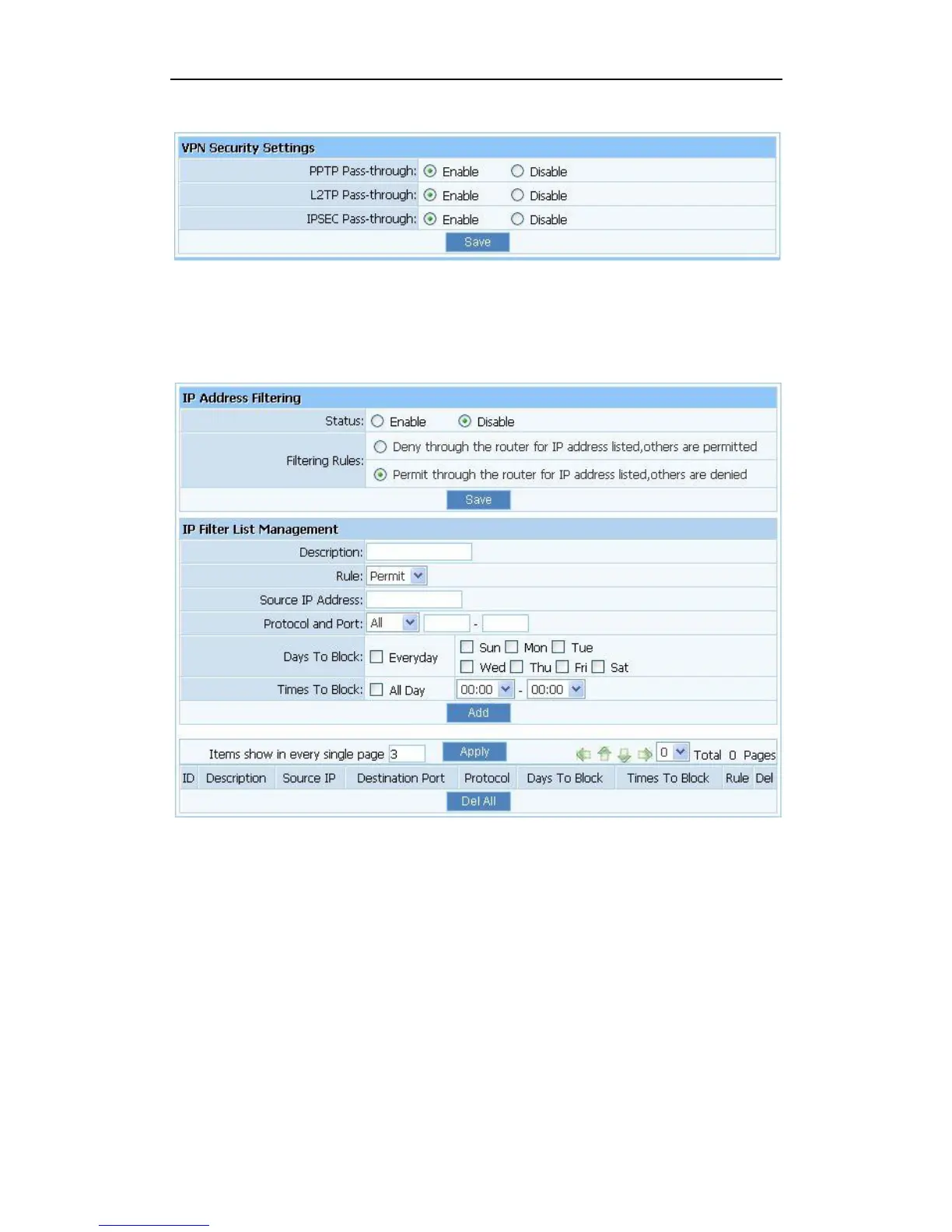

Figure 4-47
4.8.2. IP Address Filtering
Figure 4-48
 Status: the default is disable. The rules of “Internet access control” based on source IP,
port number and protocol.
 Description: describe IP Firewall list to tell from different IP Firewall lists.
 Rule: you can select permit or deny. The default is permit.
 Source IP address: input the source IP address that you want to control. The default
format is ***.***.***.***(e.g: 192.168.2.3).
 Protocol and Port: If the rule has already existed in “Protocol Template”. You can select
appropriate item and apply it. Or you can input protocol type and port number manually,
click “add” button, then the item will displayed in the list.

Netis WF-2404 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Ethernet LAN (RJ-45) ports	5
DHCP server	-
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	White

Weight and Dimensions

Depth	183 mm
Width	125.2 mm
Height	30.72 mm
Weight	- g
