300Mbps Wireless-N Broadband Router User Manual
47

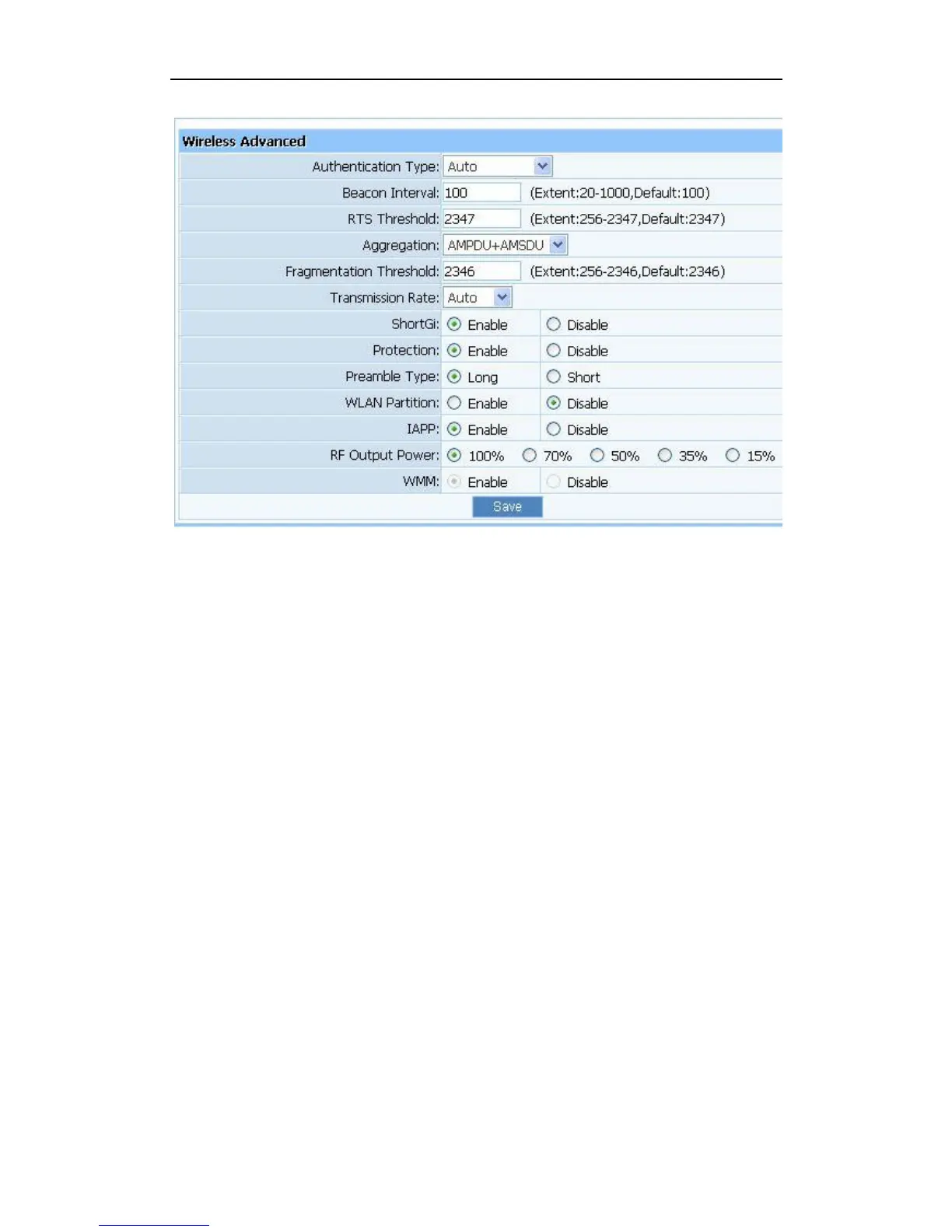

Figure 4-36
Authentications type: The default is set to “Auto”, which allows “Open System” or
“Shared Key” authentication to be used. Select “Shared Key” if you only want to use
“Shared Key” authentication (the sender and recipient use a WEP key for authentication).
Beacon Interval: The interval time of this 150Mbps Wireless-N Broadband Router
broadcast a beacon. Beacon is used to synchronize the wireless network. The valid interval
is 20-1000, the default is 100.
RTS Threshold: You can set RTS Threshold value in this field, the valid range should be
256-2347 and default value is 2347. If a network packet is smaller than the preset RTS
threshold size, the RTS/CTS mechanism will not be enabled.
Aggregation: You can accelerate the wireless transmission speed by enabling the
aggregation function. The default is AMPDUAMSDU.
Fragmentation Threshold: It specifies the maximum size of packet during the
fragmentation of data to be transmitted.
Transmission Rate: Transmit rate indicates the transmission speed of wireless LAN
access .The default setting is “Auto” and you can set this value between 1-54Mbps range.
ShortGi: You can select Enable or disable for shortgi.
Protection: Using 802.11b and 802.11g mixed mode may result in poor network
performance. By enabling 802.11 protection, it will ameliorate performance of 802.11g
devices in your wireless network.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Netis WF-2404 and is the answer not in the manual?

Netis WF-2404 Specifications

General IconGeneral
Ethernet LANYes
Networking standardsIEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
Rack mountingNo
Ethernet LAN (RJ-45) ports5
DHCP server-
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA2, WPS-PBC, WPS-PIN
Antennas quantity2
Antenna gain level (max)5 dBi
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90 %
Product colorWhite
Weight and Dimensions IconWeight and Dimensions
Depth183 mm
Width125.2 mm
Height30.72 mm
Weight- g
