WF-2406 User Manual
Figure 4-19

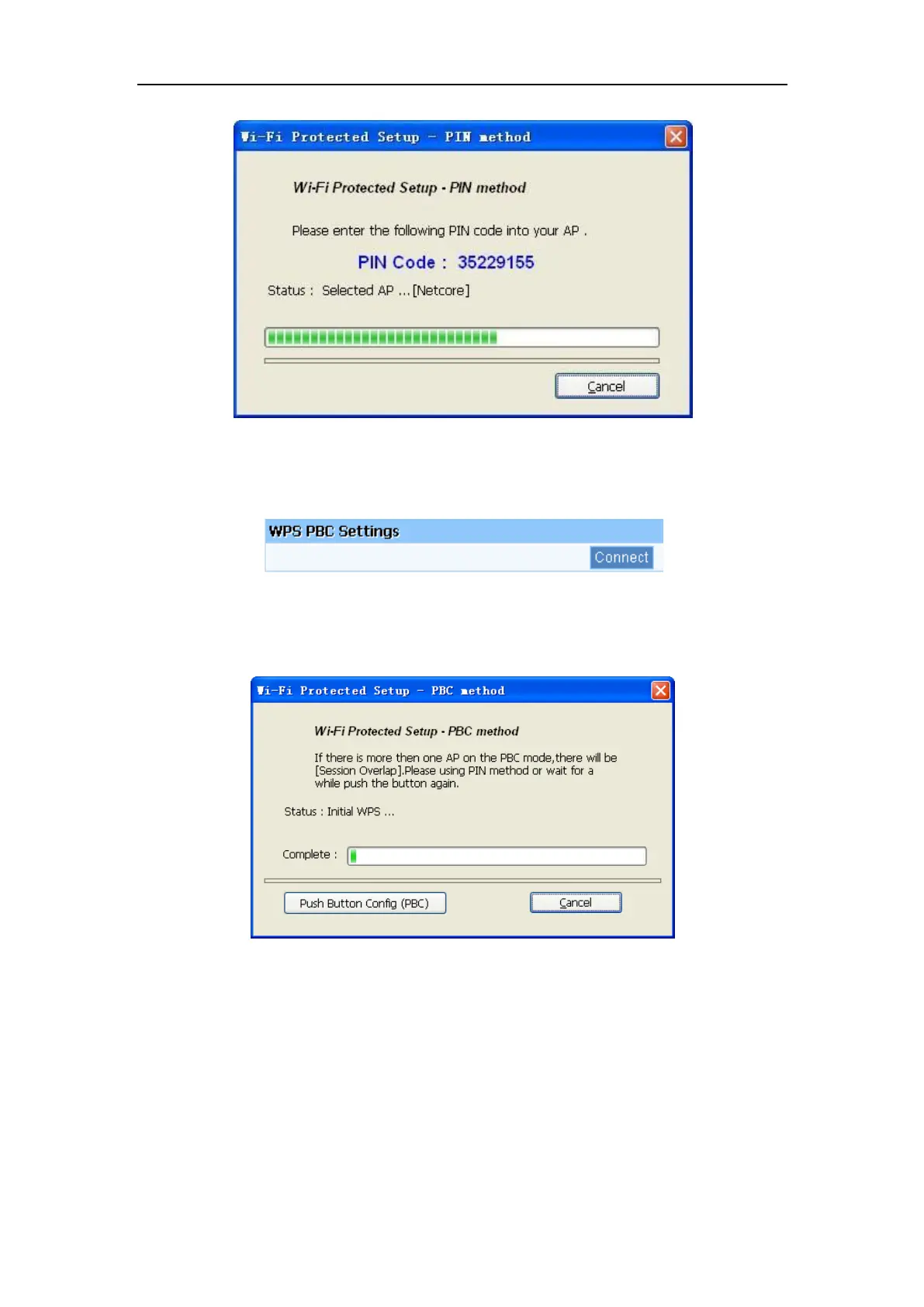

Method 4:
1. Click „connect‟ in the router‟s WPS PBC configure page
Figure 4-3
2. Push the „Push button Config (PBC)‟ in the Wi-Fi protect setup of the adapter until the
following picture appears
Figure 4-4
3. The next is the safe connection between the adapter and the router, please wait
4. The connect between the adapter and the router is success
Method 5:
1. Select „Input PIN from AP‟ in WI-FI protect setup page, input PIN of the router, then click
„PIN Input Config (PIN)‟
To Next Page
